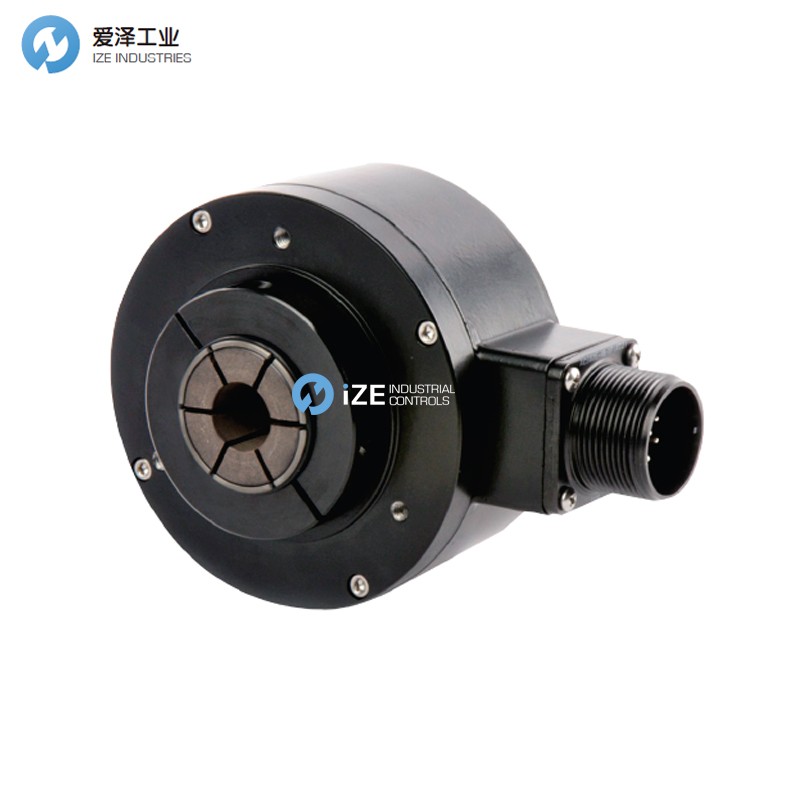

美國DYNAPAR編碼器H23102402200K選型參數表
美國DYNAPAR編碼器H23系列產品參數
SPECIFICATIONS
Key Features
INCREMENTAL ENCODERS
SERIES H20 Dynapar? brand
Shafted Encoder
STANDARD OPERATING CHARACTERISTICS
Code: Incremental, Optical
Resolution: 1 to 2540 PPR (pulses/revolution)
Accuracy: (worst case any edge to any other edge)
<1024 PPR (metal disk): ±7.5 arc-min.
≥1024 PPR (glass disk): ±2.5 arc-min.
Format: Two channel quadrature (AB) with optional
Index (Z) and complementary outputs
Phase Sense: A leads B for CCW shaft rotation as
viewed from the shaft end of the encoder
Quadrature Phasing: 90° ± 22.5° electrical
Symmetry: 180° ± 18° electrical
Index: 180° ± 18° electrical (gated with B low)
Waveforms: Squarewave with rise and fall times
less than 1 microsecond into a load capacitance
of 1000 pf
ELECTRICAL
Input Power:
5 to 26 VDC at 80 mA max., not including output
loads
Outputs:
7273 Open Collector: 40mA, sink max
7272 Push-Pull: 40mA, sink or source
7272 Differential Line Driver: 40 mA, sink or
source
4469 Differential Line Driver: 100mA, sink or
source
Frequency Response: 100 kHz min. (index
75 kHz min. for extended temperature range)
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and short
circuit protected
Termination: MS Connector, M12 Connector,Cable Exit
Mating Connector:
6 pin, style MS3106A-14S-6S (MCN-N4);
7 pin, style MS3106A-16S-1S (MCN-N5);
10 pin, style MS3106A-18-1S (MCN-N6)
10 pin, NEMA4 style (MCN-N6N4)
Cable w/ 5 pin M12 Connector (112859-xxxx)
Cable w/ 8 pin M12 Connector (112860-xxxx)
MECHANICAL
Shaft Sizes: 10mm, 1/4” or 3/8”
Shaft Loading: (at 0.25” from encoder face)
Resolutions ≤1024 PPR: 80 lbs. radial, axial
Resolutions >1024 PPR: 40 lbs. radial, axial
Shaft Speed:
Resolutions ≤1024 PPR: 10,000 RPM max.
Resolutions >1024 PPR: 5,000 RPM max.
Starting Torque: (max at 25 °C)
without shaft seal: 1.0 oz-in;
with shaft seal: 2.0 oz.-in
Moment of Inertia: 3.0 x 10-4 oz–in–sec2
Housing and Cover: Aluminum
Shaft Material: Stainless Steel
Disk Material: Glass or plastic (PPR Dependant)
Weight: 10 oz. max.
ENVIRONMENTAL
Operating Temperature:
Standard: 0 to +70 °C;
Extended: 0 to +85 °C
Storage Temperature: –40 to +90 °C
Shock: 50 G’s for 11 milliseconds duration
Vibration: 5 to 2000 Hz at 20 G’s
Humidity: Up to 98% (non-condensing)
Enclosure Rating: NEMA12/IP54 (dirt tight,
splashproof); NEMA4/IP66 (dust proof, washdown)
when ordered with shaft seal and either
M12 connector or watertight cable exit
美國DYNAPAR編碼器H23102402200K等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器H23000100133R
DYNAPAR編碼器H230001011334
DYNAPAR編碼器H230001011335
DYNAPAR編碼器H23000101133R
DYNAPAR編碼器H2300010225C1
DYNAPAR編碼器H2300010225CF
DYNAPAR編碼器H2300050021B8
DYNAPAR編碼器H23000501133R
DYNAPAR編碼器H2300050225C1
DYNAPAR編碼器H2300050225CF
DYNAPAR編碼器H230005100235
DYNAPAR編碼器H230010011334
DYNAPAR編碼器H23001001133R
DYNAPAR編碼器H23001001220E
DYNAPAR編碼器H230010032035
DYNAPAR編碼器H23001003253B
DYNAPAR編碼器H23001003253K
DYNAPAR編碼器H230010100235
DYNAPAR編碼器H2300101142B3
DYNAPAR編碼器H23001011440H
DYNAPAR編碼器H230012100134
DYNAPAR編碼器H23001210020PB1
DYNAPAR編碼器H230012100221
DYNAPAR編碼器H230024104035
DYNAPAR編碼器H231024000000
DYNAPAR編碼器H231024000005
DYNAPAR編碼器H231024000234
DYNAPAR編碼器H231024000235
DYNAPAR編碼器H231024000245
DYNAPAR編碼器H231024001003PS
DYNAPAR編碼器H231024001113
DYNAPAR編碼器H231024001135
DYNAPAR編碼器H231024001138
DYNAPAR編碼器H231024001227
DYNAPAR編碼器H231024001235
DYNAPAR編碼器H231024001255PS
DYNAPAR編碼器H23102400125D
DYNAPAR編碼器H2310240012ED
DYNAPAR編碼器H231024002003
DYNAPAR編碼器H231024002039
DYNAPAR編碼器H231024002059
DYNAPAR編碼器H231024002065
DYNAPAR編碼器H231024002135
DYNAPAR編碼器H231024002234
DYNAPAR編碼器H2310240022DF
DYNAPAR編碼器H231024002339
DYNAPAR編碼器H231024003025
DYNAPAR編碼器H231024003027
愛澤工業專業提供美國DYNAPAR編碼器H23102402200K等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器H23102402200K的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器H23102402200K更詳細的信息或者購買美國DYNAPAR編碼器H23102402200K相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.

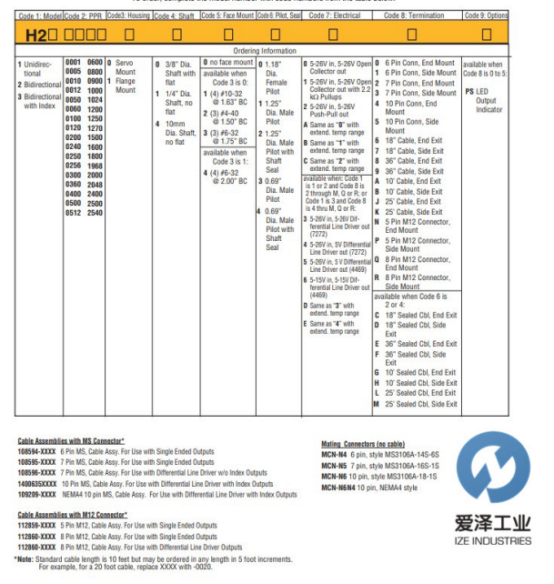

美國DYNAPAR編碼器H23102402200K尺寸圖及選型參數表
