美國DYNAPAR編碼器EN421024H2010參數說明
STANDARD OPERATING CHARACTERISTICS
Code: Incremental, Optical
Resolution: 15 to 5000 PPR (pulses/revolution) See
Ordering Information
Format: Two channel quadrature (AB) with optional
Index (Z, ungated), and complementary outputs
Index: 180 degrees ±25 degrees (electrical),
ungated, A leads B, CCW (from clamp end)
Phase Sense: A leads B for CCW shaft rotation viewing
the shaft clamp end of the encoder
Quadrature Phasing:
For resolutions 200 to 300 PPR and 1200 PPR and
above: 90° ±30° electrical; all other resolutions:
90° ±15°
Symmetry:
For resolutions 200-300 PPR and above 1024 PPR:
180°±25° electrical; all other resolutions: 180°±18°
Waveforms: Squarewave with rise and fall times less
than 1 microsecond into a load capacitance of 1000 pf
ELECTRICAL
Input Voltage: 7-15VDC, 7-26VDC, 10-30VDC (see
ordering information)
Input Current: 65mA max., not including output loads
Outputs: 4428 (7-15VDC), 7272 (7-26VDC) and High
Powered Mosfet Line Drivers (10-30VDC)
Output Current: (Refer to Ordering Information Table,
Code 4: Output Format)
Code 4, Option 0 or 2: 125mA max.per channel
Code 4, Option 1 or 3: 10mA max.per channel @ 100°C;
15mA max.per channel @ 90°C
Code 4, Option 4: 90mA max per channel @ 60C;
60mA max per channel at 95°C
Frequency Response: 125 kHz (data & index)
Termination: Terminal block - Ex screwless w/spring
cage-clamp
Interface: HAWKE type “E” increased safety rated
gland for armored and non-armored cables.
HAWKE Part Numbers:
Non-Armored Gland: HAWKE 501/421 A 3/4” NPT S
(accepts 8.5 - 13mm cable, OD)
Armored Gland: HAWKE 501/453 UNIV A 3/4” NPT
(accepts 12.5 - 20.5mm cable, OD)
MECHANICAL
Bore Diameter: 1.00”, 0.875, 0.750”, 0.625”,
16mm, 15mm. Insulated inserts provided for bores
under 1 inch
Mating Shaft Length: 2.00”, Minimum;
2.50”, Recommended
Shaft Speed: 3600RPM Maximum continuous;
6000RPM Peak
Starting Torque: 8.0 in-oz. maximum (at 25°C)
Running Torque: 5.0 in-oz. maximum (at ambient)
Bearings: 61806-ZZ
Housing and Cover: Hard Anodized Aluminum
Shaft Material: Stainless steel or anodized
aluminum (See ordering information)
Disc Material: Metal or Plastic
Accessory Fastners, Provided With:
Tether Bracket: (3) #10-32 x 3/8” SHCS Socket
Head Cap Screws
Threaded Rod: (2) 5/16-24 x .70” Mounting Bolts
Rear Cover: (4) #6-32 x 3/8” SHCS Socket Head
Cap Screws
Terminal Box: (4) #6-32 x 3/8” SHCS Socket Head
Cap Screws
Weight: 6.5 lb, typical
ENVIRONMENTAL
Operating Temperature: Refer to Temperature Range
Table (see page 2)
Storage Temperature: -50 to 100°C. Armored
Gland high-temperature specification limited to +80°C.
Shock: 50G’s for 11msec duration
Vibration: 5 to 2000Hz @ 20 G’s
Humidity: 100%
Enclosure Rating: IP67
CERTIFICATIONS
IECEx SIR 15.0051X
Sira 09ATEX5172X
Ex iamb e IIC T4 Gb
Ex tb IIIC T119°C Db
CSA 14.2676947X
Ex e iamb IIC T4 Gb
Ex tb IIIC T119°C Db IP64
Ex m IIC T4 Gb and Class III, Div 1; Class II, Div 1,
Groups E, F and G
Class I, Zone 1, AEx e iamb IIC T4 Gb
Zone 21, AExtb IIIC T119°C Db IP64

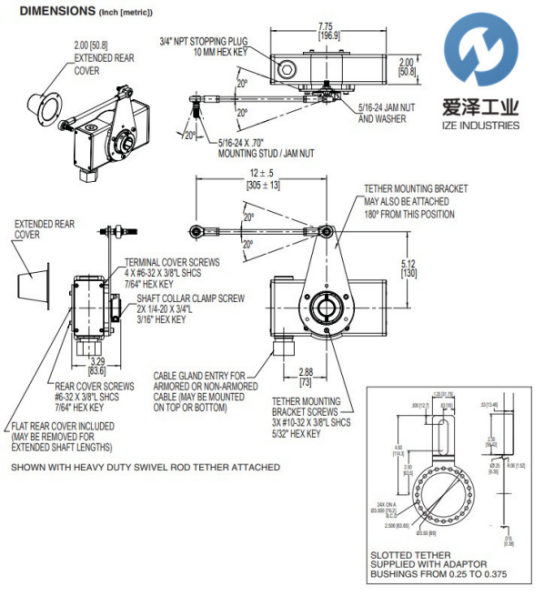

美國DYNAPAR編碼器 示例EN421024H2010尺寸圖及選型參數表
美國DYNAPAR編碼器EN421024H2010等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器EN421024A2110
DYNAPAR編碼器EN421024A2210
DYNAPAR編碼器EN42102493010
DYNAPAR編碼器EN421024H0210
DYNAPAR編碼器EN421024H1000
DYNAPAR編碼器EN421024H1010
DYNAPAR編碼器EN421024H2010
DYNAPAR編碼器EN421024H2110
DYNAPAR編碼器EN421024H3010
DYNAPAR編碼器EN421024H3110
DYNAPAR編碼器EN421024H4010
DYNAPAR編碼器EN421024H4110
DYNAPAR編碼器EN421024H4210
DYNAPAR編碼器EN421024R4010
DYNAPAR編碼器EN421024R4110
DYNAPAR編碼器EN421024R4210
愛澤工業專業提供美國DYNAPAR編碼器EN421024H2010等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器EN421024H2010的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器EN421024H2010更詳細的信息或者購買美國DYNAPAR編碼器EN421024H2010相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.

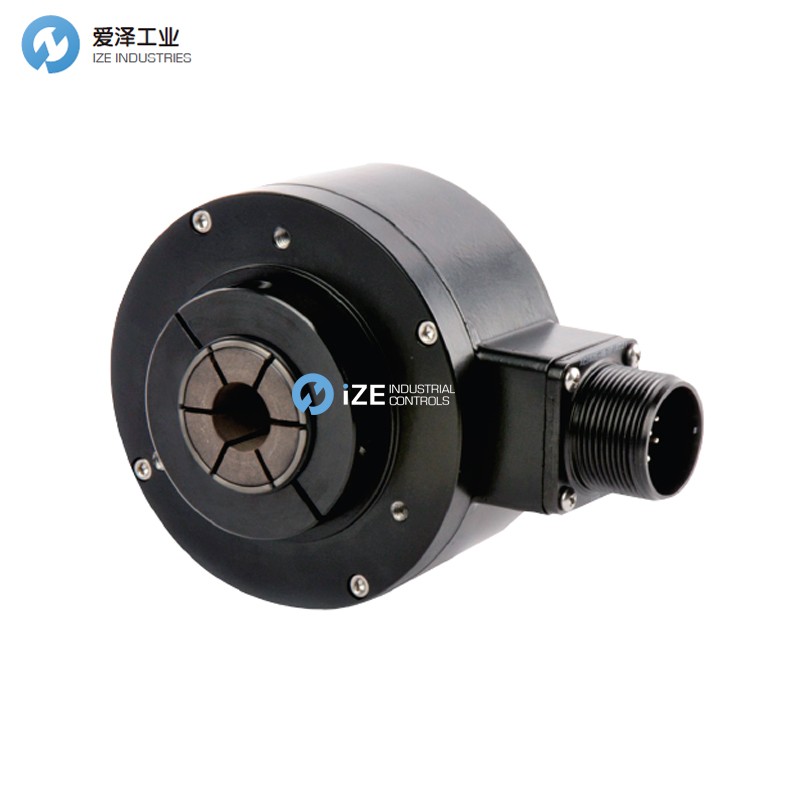

美國DYNAPAR編碼器EN421024H2010外觀尺寸及參數選型
