美國DYNAPAR編碼器 示例E1565039-1214尺寸圖及選型參數表
美國DYNAPAR編碼器E15系列參數說明
The Series E15 is a totally enclosed, easy-toinstall,
incremental encoder designed for
commercial and industrial applications with
limited space. It is an industry-standard Size
15 (1.5" diameter), servo or face-mount unit
with a rugged, metal housing.
The Series E15 includes precision bearings, an
O-ring seal, and a choice of 1/4" or 1/8"
diameter stainless steel shaft.
Series E15 incorporates the latest in microelectronic
packaging, LED light sources, and
matched sensors. Outputs are designed to be
compatible with most 5V TTL circuits with
options for higher voltage 12 and 15 VDC.
Shielded cable is standard. Line drivers with
complementary outputs are available for longer
cable runs and/or higher ambient electrical
noise immunity.
Electrical
Code: Incremental
Resolution: 100 to 1024 PPR (pulses/revolution)
Format: Two channel quadrature (AB) withoptional Index (Z) outputs
Phase Sense: A leads B for CW shaft rotationas viewed from the shaft end of the encoder
Accuracy: ±3 x (360° ÷ PPR) or ± 2.5 arc-minworst case pulse to any other pulse, whicheveris less
Quadrature Phasing: 90° ± 36° electrical
Symmetry: 180° ± 18° electrical
Index: 360° ± 90° electrical
Waveforms: Squarewave with rise and falltimes less than 1 microsecond into a load
capacitance of 1000 pf
Input Power:
TTL: 5 VDC ± 5% at 135 mA max.;
Line Driver: 5 VDC ± 5% at 210 mA max.;
CMOS: 12 or 15 VDC ± 10% at 100 mA max.;
not including output loads
Outputs:
5 VDC TTL:
Logic "1" VOH: 2.5 V min. at 10 TTL gate load or
10 mA source;
Logic "0" VOL: 0.4 V max. at 20 mA sink
5 VDC Line Driver: 75158 or equivalent, 40 mA
sink and source
12 or 15 VDC CMOS:
Logic "1" VOH: Vcc–1.5V min. at 200 ? load or
10 mA source;
Logic "0" VOL: 0.4 V max. at 20 mA sink
Frequency Response: 100 kHz min. data
channels; 50 kHz min. Index channel
Mechanical
Bearing Life: (16 x 106 ÷ RPM) hours at max.
load
Shaft Loading: 5 lb. radial, 3 lb. axial max.
Shaft Speed: 5,000 RPM max.
Starting Torque:
Shielded Bearing: 0.1 oz-in max.at 25 °C
Sealed Bearing: 0.9 oz-in max.at 25 °C
Running Torque:
Shielded Bearing: 0.08 oz-in max.at 25 °C
Sealed Bearing: 0.8 oz-in max.at 25 °C
Moment of Inertia: 4.5 x 10–6 oz–in–sec2
Weight: 3.0 oz. max.
Environmental
Operating Temperature: 0 to +70 °C
Storage Temperature: –25 to +70 °C
Humidity: to 98% without condensation
Enclosure Rating: NEMA12/IP54 (dirt tight,
splashproof)
美國DYNAPAR編碼器E1565039-1214等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器E1522139
DYNAPAR編碼器E1522437
DYNAPAR編碼器E1531188
DYNAPAR編碼器E1541006
DYNAPAR編碼器E1541020
DYNAPAR編碼器E1541030
DYNAPAR編碼器E1541031
DYNAPAR編碼器E1541048
DYNAPAR編碼器E1541060
DYNAPAR編碼器E1541061
DYNAPAR編碼器E1541077
DYNAPAR編碼器E1541085
DYNAPAR編碼器E1541094
DYNAPAR編碼器E1541106
DYNAPAR編碼器E1541110
DYNAPAR編碼器E1541113
DYNAPAR編碼器E1541117
DYNAPAR編碼器E1542129
DYNAPAR編碼器E1542223
DYNAPAR編碼器E1547045
DYNAPAR編碼器E1547133
DYNAPAR編碼器E1547239
DYNAPAR編碼器E1565039-0010
DYNAPAR編碼器E1565039-1212
DYNAPAR編碼器E1565039-1213
DYNAPAR編碼器E1565039-1214
DYNAPAR編碼器E1565056-1212
DYNAPAR編碼器E1565057-0010
DYNAPAR編碼器E1565103-1212
DYNAPAR編碼器E1565131-1212
DYNAPAR編碼器E1565131-1213
DYNAPAR編碼器E1565354-1212
DYNAPAR編碼器E1565385-1213
DYNAPAR編碼器E1565458-0012
DYNAPAR編碼器E1565458-1212
DYNAPAR編碼器E1565458-1213
DYNAPAR編碼器E1565463-0012
DYNAPAR編碼器E1565463-1212
DYNAPAR編碼器E1565587-0012
DYNAPAR編碼器E1565587-0014
DYNAPAR編碼器E1565587-1212
DYNAPAR編碼器E1565663-1212
DYNAPAR編碼器E1565736-1212
DYNAPAR編碼器E2521340
DYNAPAR編碼器E2522078
DYNAPAR編碼器E2522143
DYNAPAR編碼器E2531059
DYNAPAR編碼器E2531060
DYNAPAR編碼器E2540056
DYNAPAR編碼器E2541034
DYNAPAR編碼器E2541039
DYNAPAR編碼器E2541101
DYNAPAR編碼器E2565452
DYNAPAR編碼器E2565489
DYNAPAR編碼器E3412074
DYNAPAR編碼器E3434040
愛澤工業專業提供美國DYNAPAR編碼器E1565039-1214等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器E1565039-1214的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器E1565039-1214更詳細的信息或者購買美國DYNAPAR編碼器E1565039-1214相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.

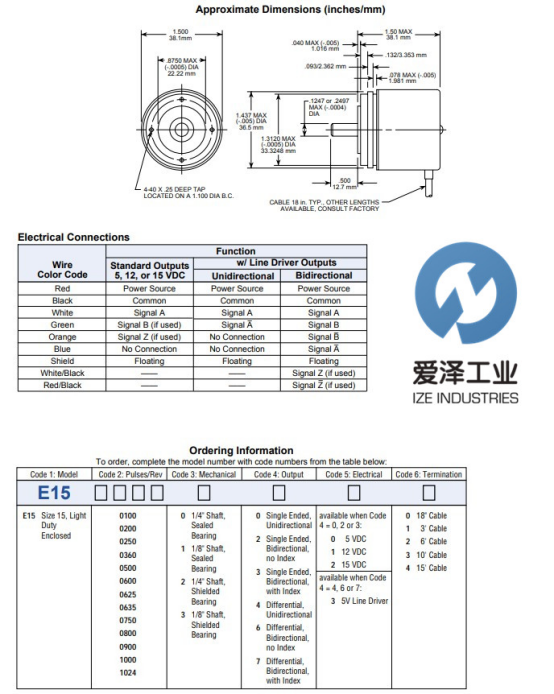

美國DYNAPAR編碼器E1565039-1214尺寸圖及選型參數表
