ALRE流量監測器JSF-1E技術參數
Technical data | |
Ambient temperature, lower value | -40 °C |
Ambient temperature, upper value | 85 °C |
Assembly | Flow monitor, paddle set |
Bearing temperature, lower value | -45 °C |
Bearing temperature, upper value | 85 °C |
Carrier material | Ms nickel-plated |
Colour | Grey |
Degree of contamination | 2 |
Depth | 71 mm |
Electric connection | Screw terminals |
Function type (systems engineering) | Monitor |
Height | 67 mm |
Housing material | Plastic |
Internal setting | Yes |
Max.pressure | 800000 Pa |
Maximum air humidity (non-condensing) | 95 % r.H |
Maximum switching current | 15 (8) A |
Maximum switching voltage | 230 V AC, 50 Hz |
Medium | Fluid, not aggressive |
Medium temperature | 120 °C |
Minimum switching current | 150 mA |
Minimum switching voltage | 24 V AC / 50 Hz |
Mounting / attachment | Pipe mounting |
Number of control ranges | 1 |
Operating voltage | None |
Output signal | Switching |
Paddle material | Stainless steel |
Pipe dimension | 1″…8″ |
Potential free switching contact | Yes |
Protection class | I |
RAL colour number (similar) | 7016/7035 |
Safety and EMC | In accordance with DIN EN 60730 |
Sensor element | Flow paddle |
Surface properties | Matt |
Switching contact | Two-way contact |
Switching element | Microswitch |
Switching power | 3450 W |
Test mark approval | Type-tested by TüV |
Type of protection | IP65 |
Width | 130 mm |
With explosion protection | No |
ALRE流量監測器JSF-1E產品介紹
用于 1…8" 的 JSF 流量監測器
該流量監測器是專門為監測液體介質的流量而開發的。 該監測器通常用于機器和設備構造，用于監測油、冷卻和潤滑回路，或用作噴水滅火系統、加熱系統、冷卻器和熱泵中的低水位保護。 該裝置垂直安裝在水平管道中。 平靜距離必須至少為槳葉上游和下游管道直徑的5倍。 最大流量可能遠高于最大流量。 設置監視器的值。 未經過飲用水測試。

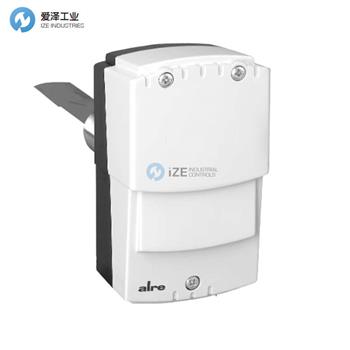

JSF flow monitor for 1…8″
This flow monitor was specially developed for monitoring the flow of liquid media. The monitor is typically used in machine and apparatus construction, for monitoring oil, cooling, and lubrication circuits, or as low-water protection in sprinkler systems, heating systems, chillers, and heat pumps. The unit is installed vertically in a horizontal pipe. The calming distance must be at least 5 times the pipe diameter upstream and downstream of the paddle. The maximum flow can be considerably higher than the max. setting the value of the monitor. Not tested for drinking water.
ALRE流量監測器JSF系列其他常用型號：
ALRE JSF-1E
ALRE JSF-1 RE
ALRE JSF-2E
ALRE JSF-2 RE
ALRE JSF-3E
ALRE JSF-4E
ALRE FLOW MONITOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ALRE流量監測器JSF-1E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ALRE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
