SETRA差壓傳感器201系列技術參數
SPECIFICATIONS | |
Performance Data | |
Accuracy RSS (at constant temperature) | ±0.5% FS |
Non-Linearity, (BFSL) | ±0.45% FS |
Hysteresis | 0.25% FS |
Non-Repeatability | 0.25% FS |
Environmental Data | |
Temperature | |
Operating °F(oC) | -40 to +175 (-40 to +80) |
Storage °F(oC) | -40 to +185 (-40 to +85) |
Acceleration | 10g maximum |
Shock | 50g Operating |
Electrical Data (Voltage) | |
Circuit | 2-Wire |
Output | 4 to 20 mA |
External Load | 0 to 800 Ohms |
Minimum Supply Voltage (VDC) | 12 + 0.02 x (Resistance of receiver plus line) |
Maximum Supply Voltage (VDC) | 30 + 0.004 x (Resistance of receiver plus line) |
Physical Description | |
Case | Stainless Steel |
Electrical Connection | 2ft. Multiconductor Cable (Std), 3 Screw Terminal Block |
Pressure Fitting | 1/4” NPT Internal |
Weight | 6 ounces |
SETRA差壓傳感器201系列介紹
Setra 201 型是一款精確、低成本的壓力傳感器，用于測量極低的表壓差。 201 的全焊接無 O 形圈結構實現了無泄漏設計，是關鍵的低頻應用不錯的選擇。 201 過程連接設計用于與不銹鋼和 600 系列鉻鎳鐵合金兼容的壓力介質。
Setra的可變電容傳感器設計結合了極致的簡單性、高精度和熱穩定性。它具有鉻鎳鐵合金隔膜和絕緣電極。隨著壓力的增加或減少，電容會發生變化。檢測電容的這種變化并將其轉換為完全調節的線性電流輸出信號。
其堅固的設計、45 PSI 高過壓能力和寬工作溫度使 201 型成為最苛刻應用的選擇。
Setra’s Model 201 is an accurate, low cost pressure transducer for measuring very low differential of gauge pressure. The 201’s all-welded no o-ring construction results in a leak-free design, idea for the most critical low range applications. The 201 process connection is designed to be used with pressure media compatible with stainless steel and 600 Series Inconel.
Setra’s patented variable capacitance sensor design combines the ultimate in simplicity, with high accuracy and superior thermal stability. It features an Inconel diaphragm and an insulated electrode. As pressure increases or decreases, the capacitance changes. This change in capacitance is detected and converted to a fully conditioned linear current output signal.
Its rugged design, 45 PSI high overpressure capability, and wide operating temperature make the Model 201 ideal for the most demanding applications.

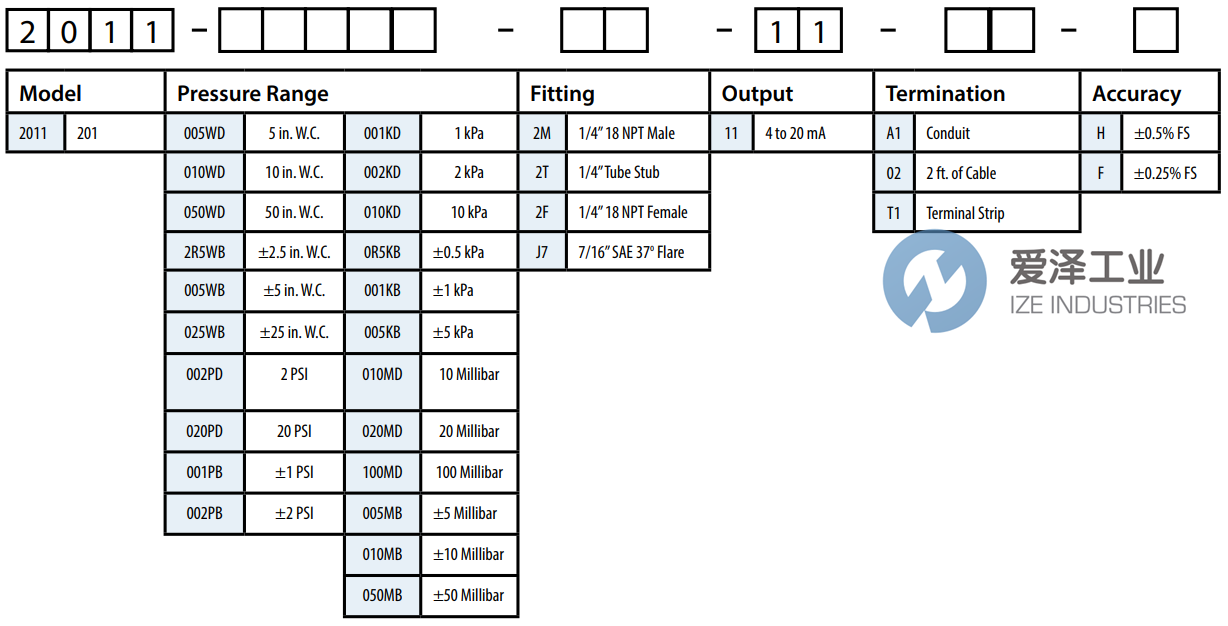

SETRA差壓傳感器201系列選型
SETRA差壓傳感器201系列其他常用型號：
SETRA 2011-005WB-2M-11-02-F
SETRA 2011-005KB-2M-11-02-F
SETRA 2011-005KB -2M-11-02-H
SETRA 2011003WB2M11A1H
SETRA 2011-002KD -2F-11-T1-F
SETRA 2011-002PD -J7-11-02-F
SETRA 2011-050MB -J7-11-T1-F
SETRA 2011-005MB -J7-11-T1-F
SETRA 2011-020MD -J7-11-T1-F
SETRA 2011-005KB -J7-11-T1-F
SETRA 2011-0R5KB -J7-11-T1-F
SETRA 2011-002KD -J7-11-T1-F
SETRA 2011-002PB -J7-11-T1-F
SETRA 2011-020PD -J7-11-T1-F
SETRA DIFFERENTIAL PRESSURE TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SETRA差壓傳感器2011-005KB-2M-11-02-F的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

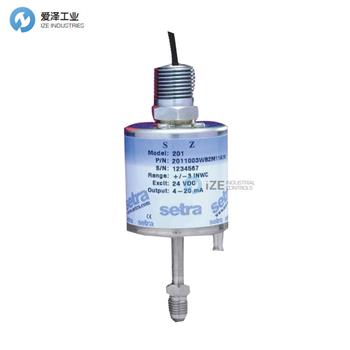

SETRA差壓傳感器201系列2011-005KB-2M-11-02-F技術參數及選型
