BWB壓力傳感器15516-02011規格介紹
15516-(#1 Sensing Configuration) |
0 – Fluorocarbon (Viton) |
2 – Green |
01 – 316SS |
1 – Standard Panel Nut |
BWB壓力傳感器15516-02011介紹介紹
15516-02011

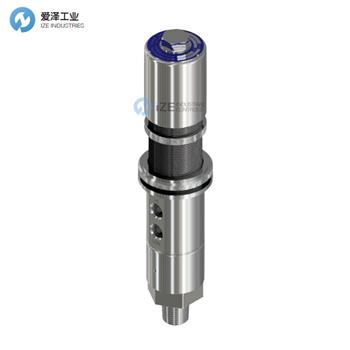

Assembly, RPS Pressure Sensor, 1-1/8", Viton Seals Green Spring, All 316 SS, Panel Mount Nuts Adjustable Range: 200 - 500 PSI
15516-02011
組件，RPS 壓力傳感器，1-1/8"，氟橡膠密封件綠色彈簧，材質316SS，面板安裝螺母可調范圍：200 - 500 PSI
BWB閥RPS產品介紹
The BWB "RPS" is a 3-way, normally closed or normally open, automatic, pressure sensing device. By choosing the appropriate inlet, the sensor can detect pressure above (PSH) or below (PSL) any desired pressure setting. By selecting the correct piston & spring combination (see pressure chart), and either loosening or tightening the adjustment cap, the sensor may be set between 10 and 10,000 psi. It is normally installed on a process vessel, process flow line, or in a control panel. The sensor receives sensing pressure from the component which it is monitoring and supply pressure from the safety system which it will shut down.
BWB“RPS”是一種 3 路、常閉或常開、自動壓力傳感裝置。通過選擇合適的入口，傳感器可以檢測高于（PSH）或低于（PSL）任何所需壓力設置的壓力。 通過選擇正確的活塞和彈簧組合（參見壓力表），并松開或擰緊調節蓋，傳感器可以設置在 10 到 10,000 psi 之間。它通常安裝在工藝容器、工藝流程線上或控制面板中。 傳感器接收來自其正在監控的組件的感測壓力，并接收來自將關閉的安全系統的供應壓力。
BWB壓力傳感器其他常用型號：
BWB 15516-02011
BWB 15516-00000
BWB 15516-00001
BWB 15516-00002
BWB 15516-00010
BWB 15516-00011
BWB 15516-00012
BWB 15516-01000
BWB 15516-01011
BWB 15516-01012
BWB Hydraulic Controller Accessories NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BWB壓力傳感器15516-02011的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BWB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BWB壓力傳感器15516-02011產品介紹
