BOPP&REUTHE流量計MID系列技術參數
TECHNISCHE DATEN | |
Nominal size | DN10 up to DN40 (3/8“ bis zu 1?“) |
Process connection | Tri-Clamp, hygienic connection for sanitary thread, sterile connections, sterile mini flanges |
Material | stainless steel, PTFE, Hastelloy |
Conductivity | >1μS/cm |
Flow range | 0.25 to 10 ms |
Repeatability | ±0.1% (depending on flow rate) |
Process temperature | up to 95°C (203°F) – Cleaning up to 95°C (203°F) |
Prozessdruck | up to 16 bar |
Ex-protection | no |
BOPP&REUTHE流量計MID系列介紹
用于在帶有電磁流量計的灌裝機中灌裝導電液體的模塊化計量系統 (MDS)
應用：
它們的功能基于灌裝機中的導電液體 (>1μS/cm)。這些機器主要用于食品和飲料行業以及制藥和精細化工行業。其中包括乳制品（也包括水果片）、番茄醬、蛋黃醬、芥末、醬汁、調料、清潔劑和洗滌劑、醫療產品（例如胃凝膠）、無菌注射產品和化妝品。

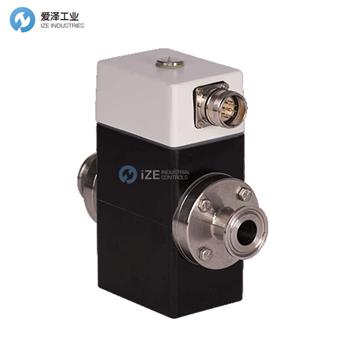

Modular dosing system (MDS) for filling conductive liquids in filling machines with electromagnetic flowmeters
Application:
Their function is based on conductive liquids (>1μS/cm) in filling machines. These machines are mainly used in the food and beverage industry as well as in the pharmaceutical and fine chemical industries. Among others, dairy products (also with fruit pieces), ketchup, mayonnaise, mustard, sauces, dressings, cleaning and washing agents, medical products (e.g. stomach gels), sterile injection products and cosmetics are measured.
BOPP&REUTHE流量計MID系列其他常用型號：
BOPP&REUTHE MID-MDS-T-CA-20-20-C-3A
BOPP&REUTHE MID-MDS-T-CLA-32-1 1/2-C-3A
BOPP&REUTHE FLOW METER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BOPP&REUTHE流量計MID-MDS-T-CLA-32-1 1/2-C-3A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BOPP&REUTHE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BOPP&REUTHE流量計MID系列MID-MDS-T-CLA-32-1 1/2-C-3A技術參數及介紹
