NAGANO壓力開關CQ30系列技術參數
Specifications | |
Item | Description |
Fluid | Gas or Liquid (No frezing) |
Operating environment | Places where there are no inflammable liquids or gases which may cause ignition or explosion under normal conditions. |
Mounting | Panel mounting |
Connection | G3/8B, G1/2B, R1/4, R3/8, R1/2, 1/4NPT, 3/8NPT, 1/2NPT |
Wetted parts material | Bourdon tube: SUS316 Socket: SCS14 |
Pressure range | 0 to 0.2 - 0 to 70 MPa -0.1 to 0.2 - -0.1 to 2 MPa |
Proofpressure | 1.5 times the pressure range |
Set width | Minimum set width for two contacts type is a dead band. |
Operating temperature | -20 to 60 °C |
Accuracy | ±1% max.P. (Compound: ±1%F.S.) |
Temperature cofficient | 0.05%max.P./C (Compound: 0.05% F.S./C) |
Dead band | Specification 2 references. |
Switch | Micro switch |
Quantity of switch | One contact or two contacts |
Setting system | Internal adjustment type, with setting lock (However, when the set value is specified, the setting adjustment screw is locked.) |
Outlet for electric wire | Conduit type: G3/4 female (Standard), Others Gland: JIS 20b (Standard), Others |
Case material, finishing | ADC12, Blue & Gray. Epoxy painted |
Case structure | Drip-proof (Equivalent to IP43) or Water-proof (Equivalent to IP65) |
Operation lamp (Option) | The on/off state of the pressure switch and the operating state of the microswitch can also be confirmed at a glance. |
Weight | Approx. 1.3 kg |
NAGANO壓力開關CQ30系列介紹
接觸機構采用微動開關，是安全特性優異的壓力開關。
該開關可在從低壓到高壓的廣泛壓力范圍內制造，因此適用于液位控制、流量控制以及氣動、液壓和其他流體壓力控制。
特征
? 采用專為耐用壓力開關而開發的波登管，并且適合振動。
? 可以選擇一接點類型或二接點類型。采用兩種接點方式，可設定上限和下限。
? 防酸涂層可防止因鹽害而生銹。

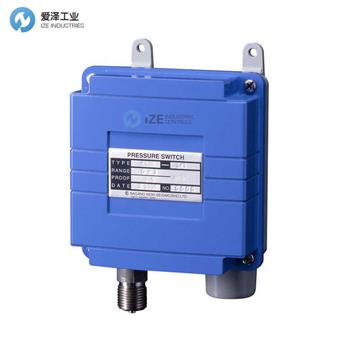

This is a pressure switch with outstanding safety characteristics using a microswitch for contact mechanism.
This switch can be manufactured over a wide pressure range from low pressure to high pressure and is therefore suitable for liquid level control, flow control and also for pneumatic, hydraulic pressure and other fluid pressure controls.
Feature
? Bourdon tube which was developed for durable pressure switch is used and is suitable for vibration.
? The one contact type or two contact type can be selected. With the two contact type, the setting of upper limit and lower limit can be possible.
? Acid-proof coating prevents rusting from salt damage.

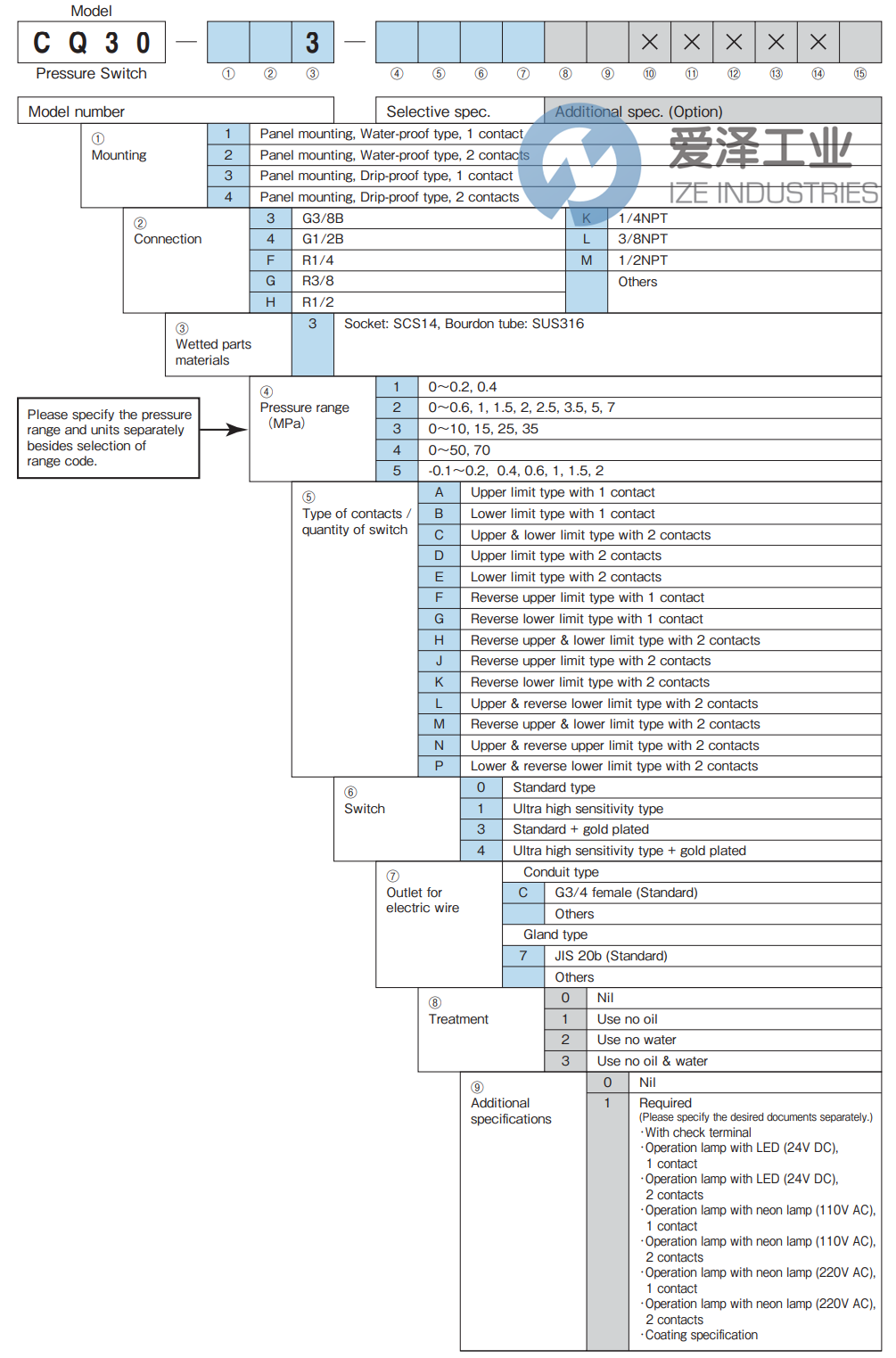

NAGANO壓力開關CQ30系列選型
NAGANO壓力開關CQ30系列其他常用型號：
NAGANO CQ30-1M3
NAGANO CQ30-243
NAGANO CQ30-243-3A0C00XXXXX0
NAGANO CQ30-2433C0C01XXXXX1
NAGANO CQ30-2K3-2C0C00XXXXX0
NAGANO CQ30-2M3-2C0700XXXXX1
NAGANO CQ30-3G3-2C0700XXXXX0
NAGANO CQ30-2M3 0-1.5MPA HL
