愛澤工業2022年9月部分到貨產品專題及庫存
——HONEYWELL變送器篇
如下為我司愛澤工業IZE_Industries本月到貨HONEYWELL相關產品，歡迎致電索取樣本資料和產品信息。
HONEYWELL變送器STD735-E1HC4AS-1-0-AHS-11S-A-10A0-00-0000
HONEYWELL變送器STG77S-E1G000-1-D-BHS-11S-A-70A0-F1
HONEYWELL變送器STG78L-E1G000-1-A-BHB-11S-B-10A0-F1-0000
HONEYWELL變送器STT850-S-0-D-AHB-11S-A-00A0-F1-0000
HONEYWELL變送器STT850-S-O-D-BHB-11S-B-01A0-F1-0000

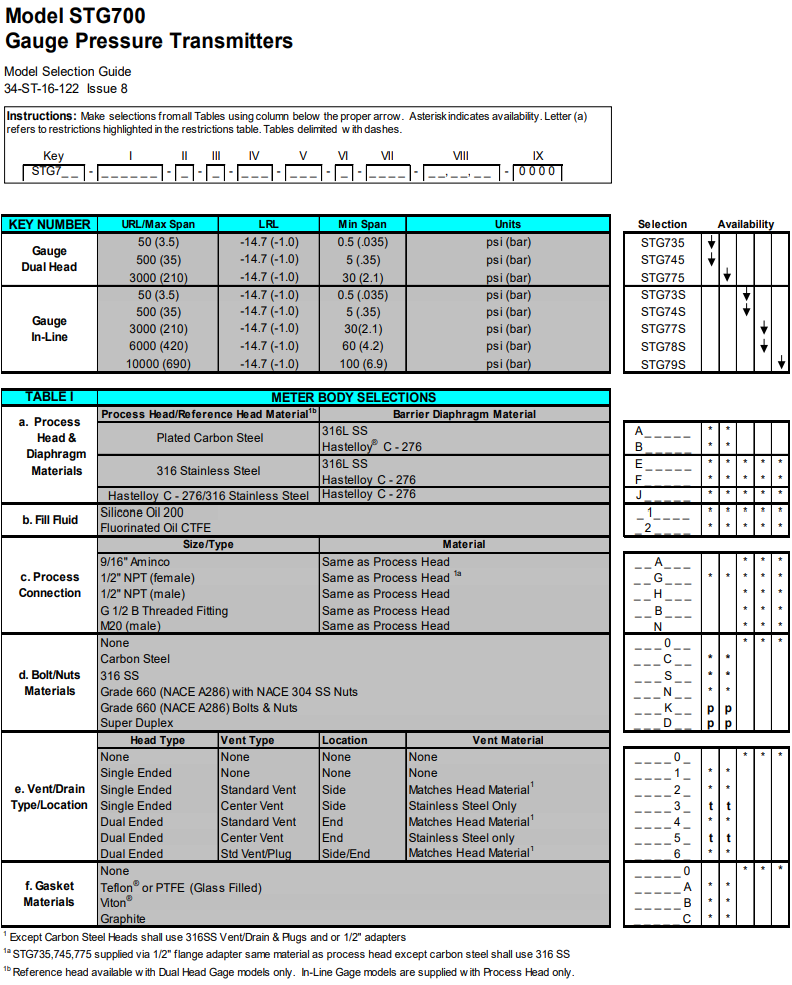

SmartLine?ST700 表壓變送器非常適用于從鍋爐和燃料供給中的高壓測量到具有相對較高過程溫度的罐液位測量應用的各種應用。
特性：
? 校驗量程的精度高達 0.065%，0.04% 可選
? 穩定性：0.020% 滿量程，保持 10 年
? 自動溫度補償
? 量程比 100:1
? 響應時間快達 100ms
? 易于使用和直觀的顯示功能
? 外部零位、量程和組態功能
? 完善的自診斷功能
? 基于 ANSI/NFPA 70-202 和 ANSI/ISA 12.27.0 集成雙重密封設計，確保安全性
? 標準配置完全符合 SIL2/3 要求。
? 模塊化設計特點
SmartLine? ST700 Gauge Pressure Transmitters are ideal for applications ranging from high-pressure measurements in boilers and fuel feeds to tank level measurement applications with a relatively high process temperature.
Features:
? Accuracies up t? 0.065% of span
? Stability up t? 0.020% of URL per year for 10 years
? Automatic temperature compensation
? Rangeability up t? 100:1
? Response times as fast as 100ms
? Easy t? use and intuitive display capabilities
? Intuitive External Zero, Span and configuration capability
? Comprehensive on-board diagnostic capabilities
? Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
? Full compliance t? SIL 2/3 requirements
? Modular design characteristics

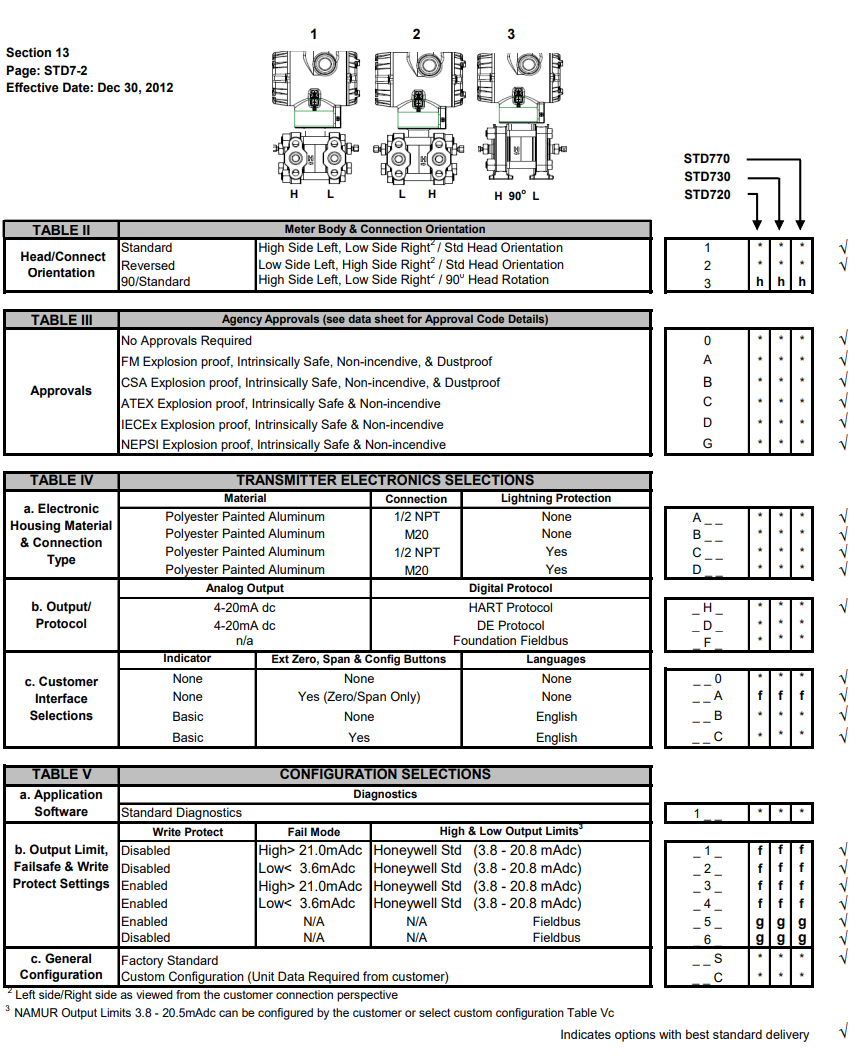

SmartLine? ST700 差壓變送器將智能技術帶入了廣泛的測量應用，從爐膛燃燒氣流速率到靜壓罐計量。
? 精度高達量程的 0.05%
? 穩定性高達每年 URL 的 0.02%，持續 5 年
? 自動靜壓和溫度補償
? 量程比高達 100:1
? 響應時間快至 100 毫秒
? 字母數字顯示功能
? 外部調零、跨度和配置能力
? 對極性不敏感的電氣連接
? 車載診斷功能
? 基于 ANSI/NFPA 70-202 和 ANSI/ISA 12.27.0 的一體式雙密封設計，具有較高的安全性
? 過壓保護
? 完全符合 SIL 2/3 要求。
? 模塊化設計特點
SmartLine? ST700 Differential Pressure Transmitters bring smart technology to a wide spectrum of measurement applications ranging from furnace combustion airflow rate to hydrostatic tank gauging.
? Accuracies up t? 0.05% of span
? Stability up t? 0.02% of URL per year for 5 years
? Automatic static pressure & temperature compensation
? Rangeability up t? 100:1
? Response times as fast as 100ms
? Alphanumeric display capabilities
? External zero, span, & configuration capability
? Polarity insensitive electrical connections
? On-board diagnostic capabilities
? Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
? World class overpressure protection
? Full compliance t? SIL 2/3 requirements.
? Modular design characteristics
STT850溫度變送器旨在在不同的環境溫度下提供非常高的性能。變送器的總安裝精度水平使STT850幾乎可以替代任何變送器。
特性：
? RTD 的數字精度高達 0.1°C
? 十年穩定性高達每年 URL 的 0.01%
? 130 毫秒更新時間
? 傳感器匹配設施可提高精度
? 內置數字輸出選項
? 通過高級顯示傳感器健康趨勢
? 完全符合 SIL 2/3 要求

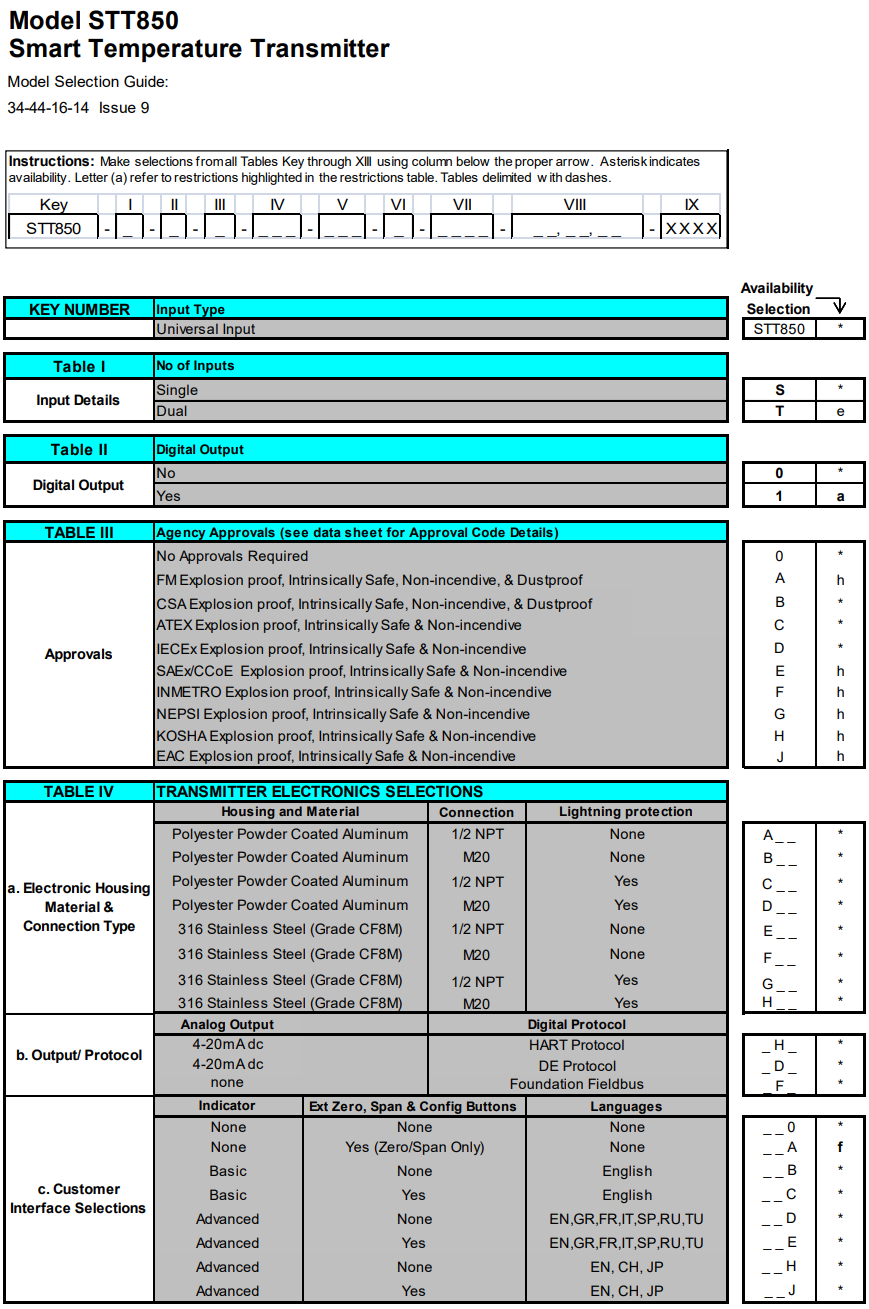

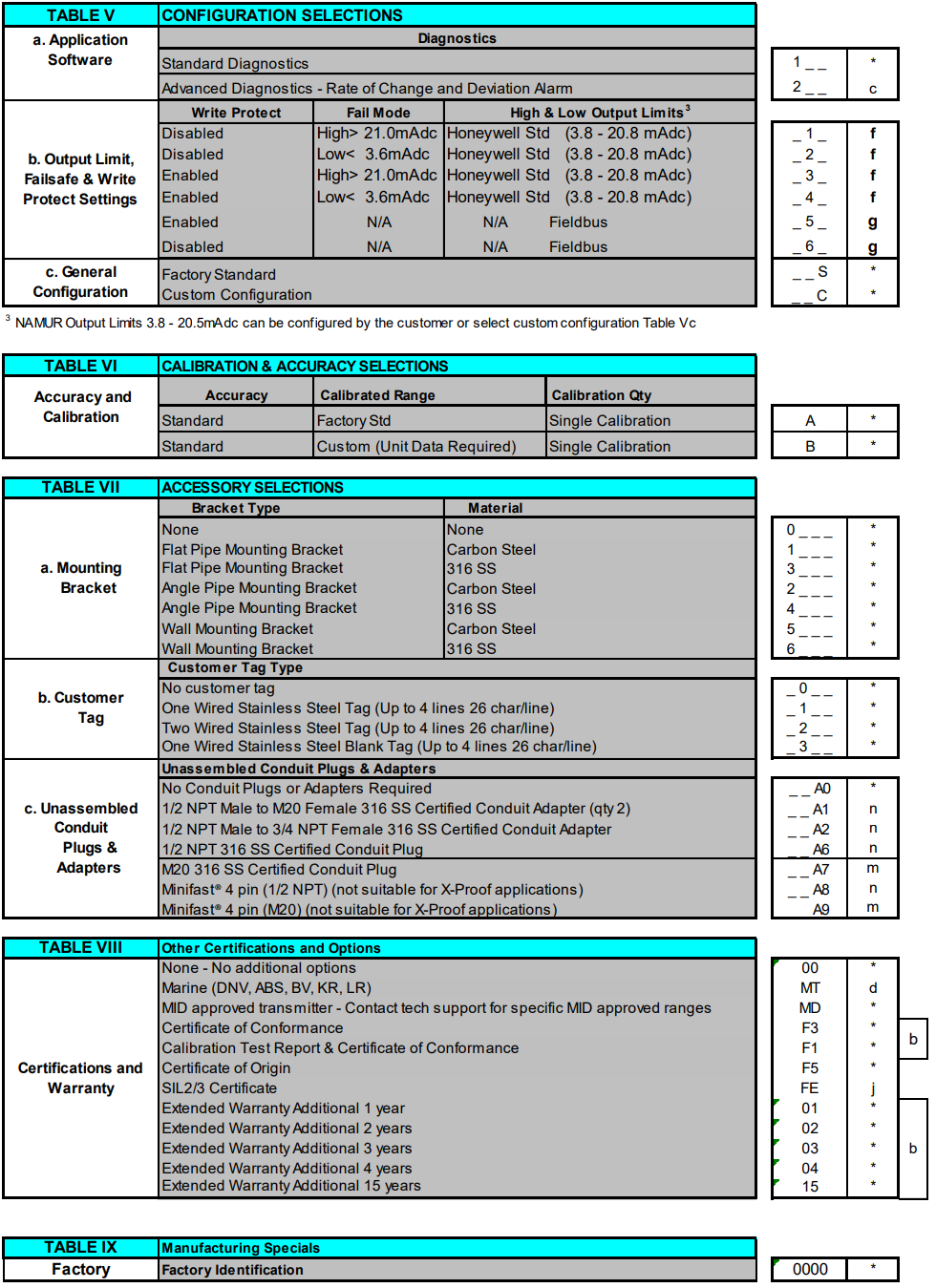

STT850 temperature transmitter is designed to deliver very high performance across varying ambient temperatures. The total installed accuracy level of the transmitter, allows the STT850 to replace virtually any transmitter.
Features:
? Digital accuracy up to 0.1°C for RTD
? Stability up to 0.01% of URL per year for ten years
? 130 ms update time
? Sensor matching facility for higher accuracy
? Built-in digital output option
? Sensor health trend through advanced display
? Full compliance with SIL 2/3 requirements
SmartLine? ST700 絕壓變送器針對需要在真空應用中具有強大性能的應用。這包括真空蒸餾塔中的低壓測量。
特征：
? 精度高達量程的 0.065%
? 穩定性高達每年 URL 的 0.020%，持續 10 年
? 自動溫度補償
? 量程比高達 100:1
? 響應時間快至 100 毫秒
? 易于使用和直觀的顯示功能
? 直觀的外部調零、跨度和配置功能
? 全面的車載診斷功能
? 基于 ANSI/NFPA 70-202 和 ANSI/ISA 12.27.0 的整體式雙密封設計，確保安全
? 完全符合 SIL 2/3 要求
? 模塊化設計字符

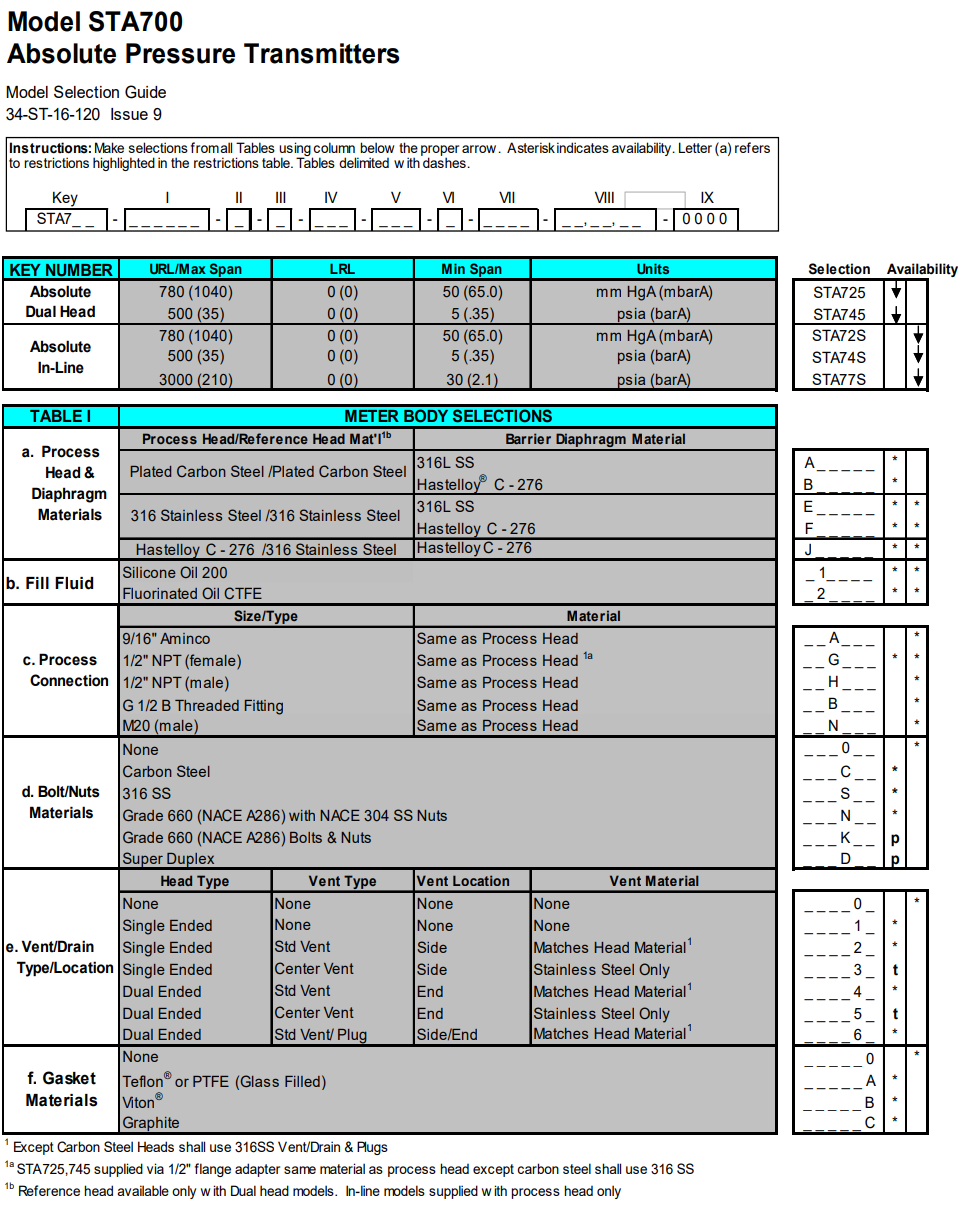

SmartLine? ST700 Absolute Pressure Transmitters are targeted at applications requiring robust performance in vacuum applications.This includes low-pressure measurement in vacuum distillation columns.
Features:
? Accuracies up to 0.065% of span
? Stability up to 0.020% of URL per year for 10 years
? Automatic temperature compensation
? Rangeability up to 100:1
? Response times as fast as 100ms
? Easy to use and intuitive display capabilities
? Intuitive external zero, span, & configuration capability
? Comprehensive on-board diagnostic capabilities
? Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
? Full compliance to SIL 2/3 requirements
? Modular design characters

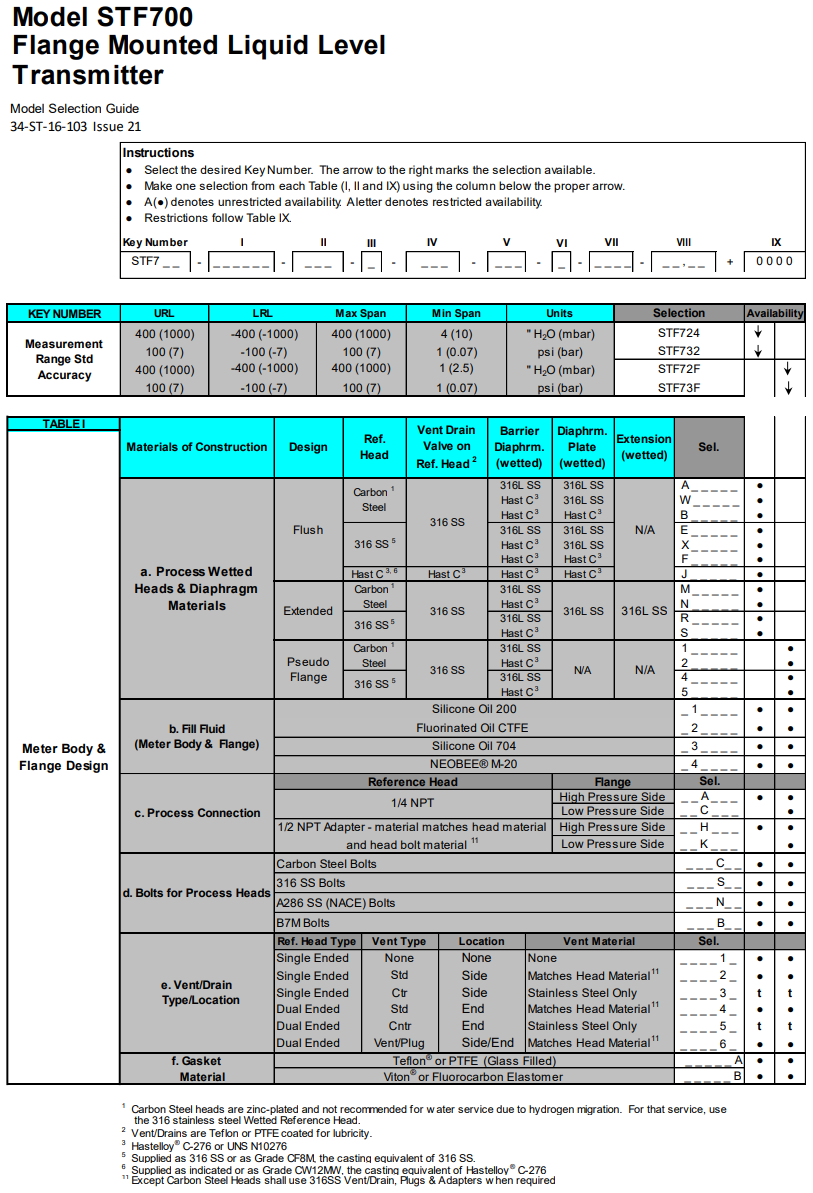

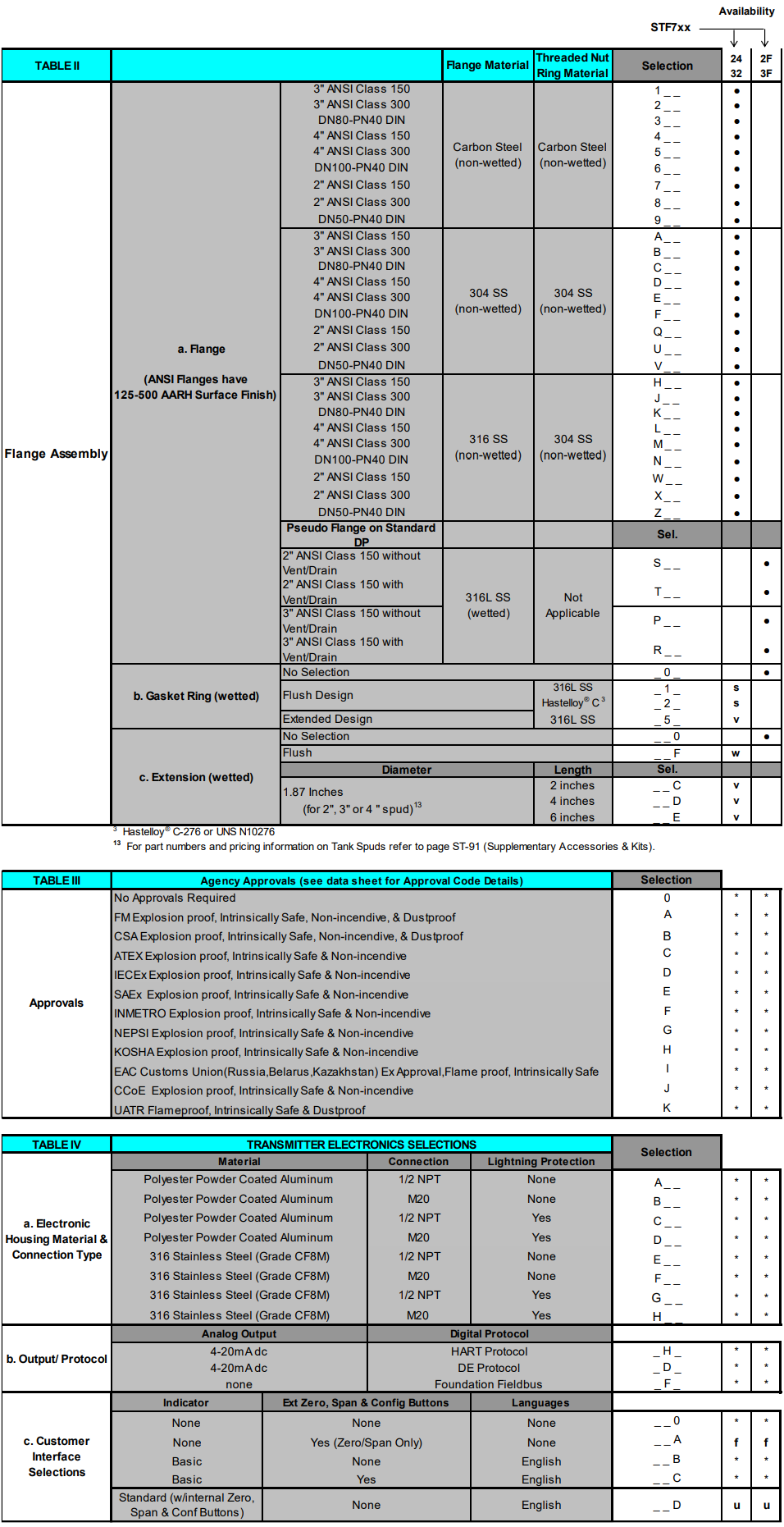

SmartLine? ST700 法蘭安裝壓力變送器可直接安裝在儲罐法蘭上，并提供各種儲罐連接。
特征：
? 精度高達標準量程的 0.05% 和 0.04%
跨度可選
? 10 年內每年的穩定性高達 URL 的 0.02%
? 自動靜壓和溫度補償
? 量程比高達 100:1
? 響應時間快至 100 毫秒
? 字母數字顯示功能
? 外部調零、跨度和配置能力
? 極性不敏感的電氣連接
? 全面的車載診斷功能
? 基于 ANSI/NFPA 70-202 和 ANSI/ISA 12.27.0 的一體式雙密封設計，確保安全性
? 過壓保護
? 完全符合SIL 2/3 要求。
? 模塊化設計特點

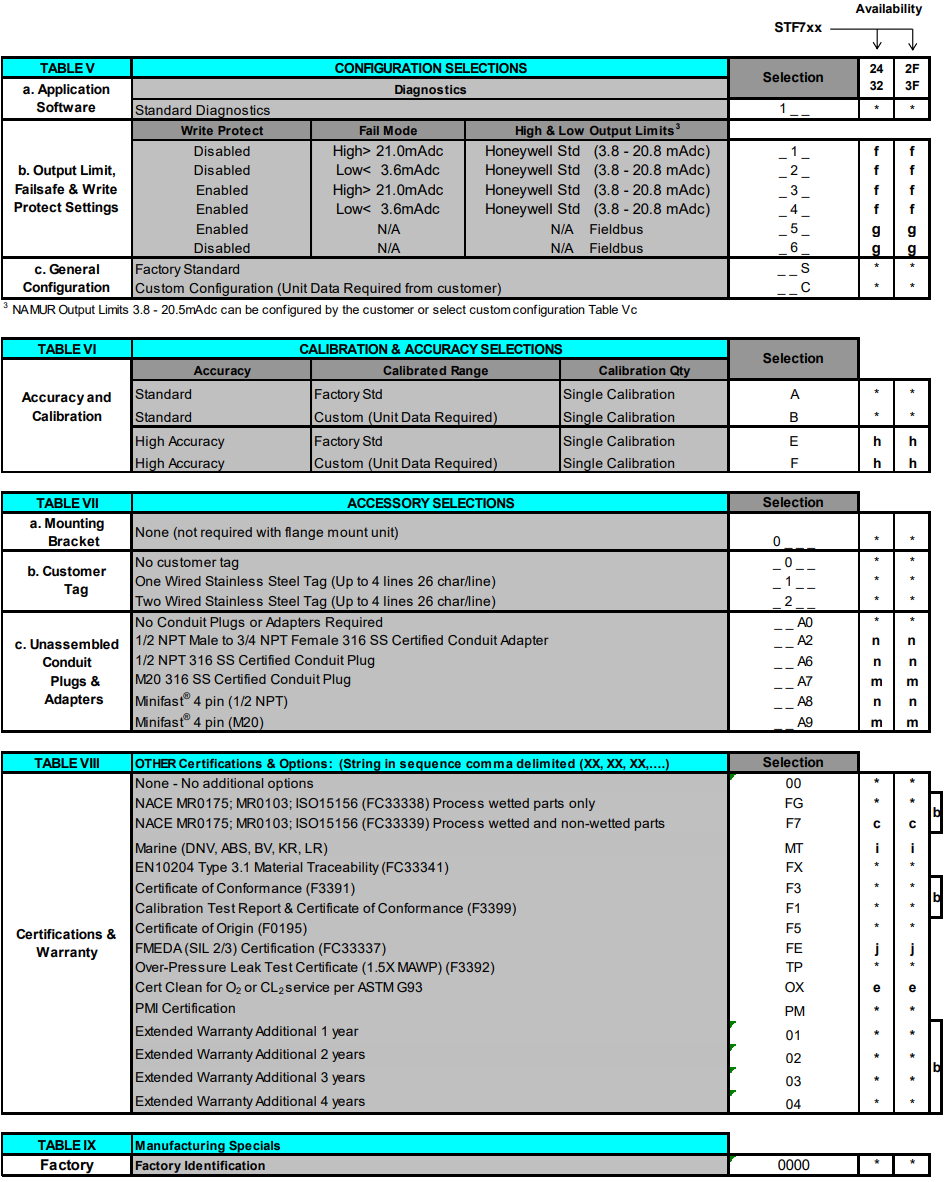

SmartLine? ST700 Flange Mount Pressure Transmitters may be installed directly onto a tank flange and are offered with a variety of tank connections.
Features:
? Accuracies up to 0.05% of span standard & 0.04% of
span optional
? Stability up to 0.02% of URL per year for 10 years
? Automatic static pressure & temperature compensation
? Rangeability up to 100:1
? Response times as fast as 100ms
? Alphanumeric display capabilities
? External zero, span, & configuration capability
? Polarity insensitive electrical connections
? Comprehensive on-board diagnostic capabilities
? Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
? World class overpressure protection
? Full compliance to SIL 2/3 requirements.
? Modular design characteristics
HONEYWELL變送器常用型號

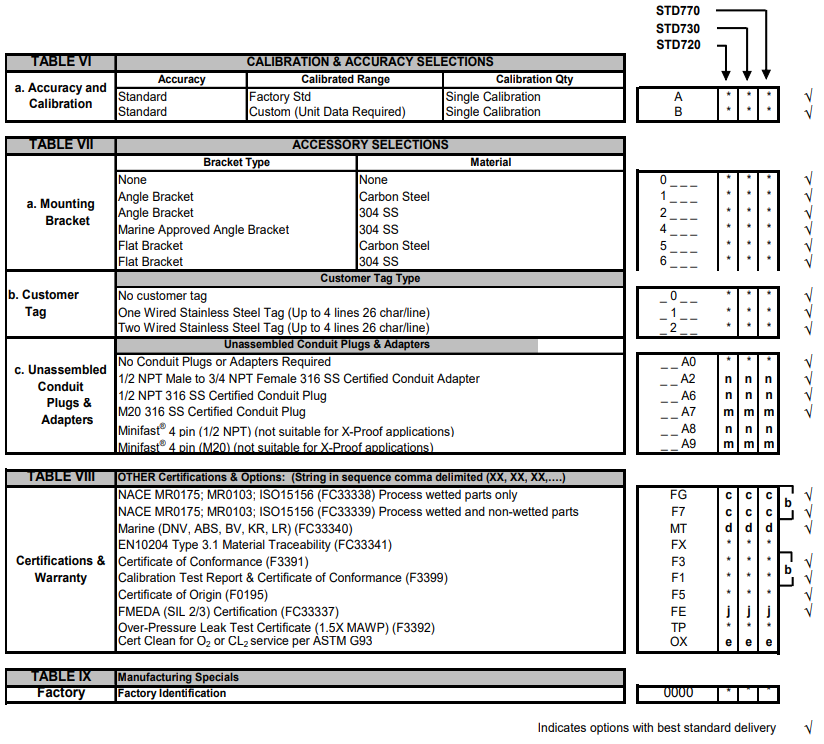

HONEYWELL STD720-A1AC1AS-1-0-AH0-11S-A-00A0-00-0000
HONEYWELL STD720-E1AS4AS-1-A-AHC-11S-A-00A6-F1-0000
HONEYWELL STD720-E1HC4AS-1-A-BHS-11S-B-10A0-F1-0000
HONEYWELL STD720-F1HC4AS-1-CDHC-11S-A-00A7-00-0000
HONEYWELL STD725-E1AC4AS-1-0-AHS-11C-B-11A0-F1-0000
HONEYWELL STD725-E1AC4AS-1-0-AHS-11S-A-00A0
HONEYWELL STD725-E1HS1AS-1-C-BHS-11C-B-00A0-F1
HONEYWELL STD725-E1HS2AS-1-C-AHT-11S-A-31A0-00-0000
HONEYWELL STD725-E1HS4AS-1-A-AH0-11S-B-10A0
HONEYWELL STD924-A1A-0000-HC
HONEYWELL STD725-E1AC4AS-1-A-AHS-11S-A-10A0-00-0000
HONEYWELL STG77S-E1G000-1-0-AH0-11S-A-10A0-00-X000
HONEYWELL STG77S-E1G000-1-0-AHS-11C-B-11A0-F1-0000
HONEYWELL STG77S-E1G000-1-0AHS-11S-A-00A0-00-0000
HONEYWELL STG77S-E1G000-1-A-AHA-11S-A-10A0-00-0000
HONEYWELL STG77S-E1G000-1-A-AHS-11S-A-00A0
HONEYWELL STG77S-E1G000-1-A-AHS-11S-A-10A0
HONEYWELL STG77S-E1G000-1-A-AHS-11S-A-10A0-00-0000
HONEYWELL STG77S-E1G000-1-A-AHT-11S-A-10A0-02-0000
HONEYWELL STG77S-E1G000-1-A-CHS-11S-A-00A0
HONEYWELL STG77S-E1G000-1-D-BHS-11S-A-70A0-F1
HONEYWELL STG77S-E1G00-1-A-AHS-11S-A-10A0
HONEYWELL STG77S-F1G0001-A-BHS11C-B11A0-F1,F5
HONEYWELL STG77S-F1G000-1-A-EHS-11S-A-10A0
HONEYWELL STG77S-F1G000-1-C-AHS-11S-A-10A0-00-0000
HONEYWELL STT850-T-0-C-CH0-11S-A-20A6-F1-0000
HONEYWELL STT850-S-0-A-CFB-16S-A-43A6-F1-0000
HONEYWELL STT850-S-0-A-AD0-11S-A-00A0-00-0000
HONEYWELL STT850-S-0-A-AHE-11S-11A0-00
HONEYWELL STT850-S-0-0-AHE-11S-A-10A0-00-0000
HONEYWELL STT850-S-0-C-AHB-11C-A-00A2-F1
HONEYWELL STT850-S-0-A-AHC-11C-A-01A0-00-0000
HONEYWELL STT850-T-0-C-AHB-11S-A-00A0-F1-F5
HONEYWELL STT850-S-0-G-AHB-11C-A-00A0-00-0000
HONEYWELL STT850-S-0-A-AHC-11S-A-10A0-00-0000
HONEYWELL STT850-T-0-C-AHC-11C-B-31A6-F1-0000
HONEYWELL STT850-S-0-D-AHB-11S-A-00A0-F1
如果您需要完整的HONEYWELL的相關技術咨詢，請隨時致電愛澤工業（021-3100 6702），或者訪問網站jjxdch.cn,我們將盡全力解決您的問題。
If you have any question for HONEYWELL，please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
