愛澤工業2022年8月部分到貨產品專題及庫
——SEW編碼器丨模塊丨剎車片丨整流器篇
如下為我司愛澤工業IZE_Industries本月到貨SEW相關產品，歡迎致電索取樣本資料和產品信息。
SEW編碼器0G83 RN 1024
SEW編碼器AS3H 13639935
SEW編碼器AS7YAV7Y
SEW整流器BG1.5 8253846
SEW模塊DEH21B
SEW模塊DFE24B
SEW模塊UOH11B
SEW剎車片0187098X BM30-BM62
SEW剎車片1836706 BE5AbmG24

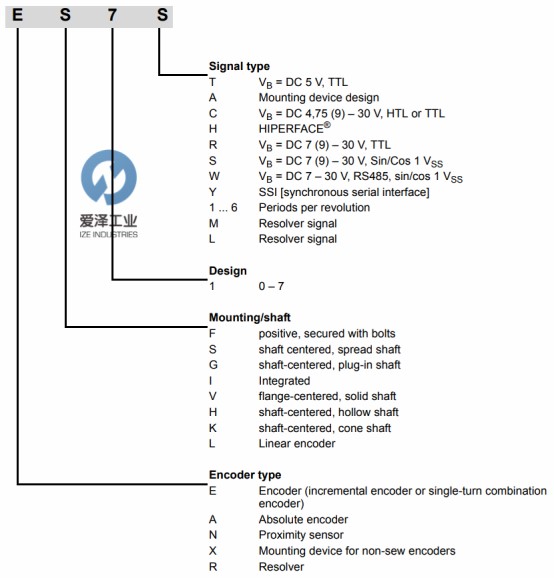

? 具有傳統信號電平 TTL（晶體管-晶體管邏輯）和 HTL（高閾值邏輯）的增量編碼器
? 帶正弦/余弦軌跡的增量式旋轉編碼器
? 帶 RS485 和正弦/余弦軌跡的絕對值編碼器
? 帶 SSI（同步串行接口）的絕對值編碼器、單圈編碼器和多圈編碼器
? 內置編碼器
? Incremental encoders with the conventional signal levels TTL (Transistor-Transistor Logic) and HTL (High Threshold Logic)
? Incremental rotary encoders with sin/cos tracks
? Absolute encoders with RS485 and sin/cos tracks
? Absolute encoders with SSI (Synchronous Serial Interface), single-turn encoders and multi-turn encoders
? Built-in encoders
BG 制動整流器 - 標準尺寸高達 100，不適用于 100 以上的框架尺寸
制動整流器 BG 是具有過壓保護的半波整流器。
如果對制動器的釋放反應時間沒有特殊要求，則整流器用于小型電機。 它不能在升高的環境溫度下使用，也不能在制動器的冷卻條件下使用。
BG Brake Rectifier - Standard size up to 100, not suitable for frame sizes above 100
The brake rectifier BG is a half-wave rectifier with overvoltage protection.
The rectifier is used for small motors if no special requirements are required in terms of the release reaction time of the brake. It cannot be used at elevated ambient temperatures and cannot be used under the cooling conditions of the brakes.
DEH21B 和 DIP11B 選件擴展了 MOVIDRIVE@ B 系統，包括一個用于絕對編碼器的 SSI 接口。 此選項允許 IPOSplus@ 定位的以下可能性：
? 系統啟動或斷電后無需參考行程
? 定位可以通過安裝在電機上的絕對編碼器或增量編碼器/旋轉變壓器進行。 即使沒有電機編碼器反饋，移動距離也不需要位置開關
? 在 IPOSlus@ 程序中自由處理絕對位置
? 除基本單元外，DIP1B 選件還提供 8 個數字輸入和 8 個數字輸出。
? 絕對值編碼器既可以安裝在電機上，也可以沿軌道安裝（如高架倉庫）
? 簡單的編碼器調整，用戶引導啟動
? 無限定位結合激活的模數功能
The DEH21B and DIP11B options extend the MOVIDRIVE@ B system to include an SSI interface_ for absolute encoders. This option allows the following possibilities for IPOSplus@ positioning:
? No reference travel required when the system is started or after a power failure
? Positioning can take place either with the absolute encoder or the incremental encoder/resolver installed on the motor. No position switch needed on the travel distance, even without motor encoder feedback
? Free processing of the absolute position in the IPOSlus@ program
? In addition to the basic unit, 8 digital inputs and 8 digital outputs are available with the DIP1B option.
? The absolute encoder can be mounted either on the motor or along the track (e.g. high-bay warehouse)
? Simple encoder adjustment with user-guided startup
? Endless positioning in combination with activated modulo function
SEW模塊DFE24B介紹
MOVIDRIVE@MDX61B 變頻器憑借其強大的通用現場總線接口，使用 DFE24B 選件通過 EtherCAT 連接到更高級別的自動化、項目規劃和可視化系統。 使用 DFE24B 選件通過 EtherCAT& 主站與變頻器通信，并通過 EtherCAT@ 操作 MOVITOOLS@MotionStudio 工程軟件來更改參數和 IPOSPlus@ 程序。
The MOVIDRIVE@MDX61B inverter enables you to use the DFE24B option to connect to higher-level automation, project planning and visualization systems via EtherCAT thanks to its powerful, universal fieldbus interface. You can use the DFE24B option to communicate_ with the inverters via the EtherCAT& master and operate the MOVITOOLS@MotionStudio engineering software via EtherCAT@to change parame- ters and IPOSPlus@ programs.
SEW的機械制動器是一種直流操作的電磁盤式制動器，它通過電子方式釋放并使用彈簧力施加。當電壓供應中斷時制動。它滿足基本的安全要求。
如果配備手動制動釋放裝置，也可以機械釋放制動器。機械釋放由自動復位的手柄或可調節的固定螺釘啟用。制動器由安裝在電機接線盒或控制柜中的制動器控制器控制。
? 短設計
特殊設計減少了重量和電機框架長度
? 多種選擇
允許自定義電機和制動器組合
? 功能和磨損監測診斷單元（可選）
通過非接觸式連續提供有關每個制動器的功能和磨損的信息
? 功能安全（可選）
通過 EN ISO 13849-1 認證。對于事件技術領域，符合 DIN 56950-1 的要求。
SEW mechanical brake is a DC-operated electromagnetic disk brake that is released electrically and applied using spring force. The brake is applied when the voltage supply is interrupted. It meets the basic safety requirements.
The brake can also be released mechanically if equipped with a manual brake release. The mechanical release is enabled by a hand lever that resets automatically or an adjustable set screw. The brake is controlled by a brake control that is installed in either the motor terminal box or the control cabinet.
? Short design
The weight and motor frame length are reduced thanks to the special design
? Large variety of options
Allows for custom combinations of motors and brakes
? Function and wear monitoring diagnostic unit (optional)
With a contactless, continuous supply of information regarding the function and wear of each individual brake
? Functional safety (optional)
With certification according to EN ISO 13849-1. For the area of event technology, the requirements of DIN 56950-1 are complied with.
SEW編碼器丨模塊丨剎車片丨整流器常用型號：
SEW 0G83 RN 1024
SEW AS3H 13639935
SEW AS7YAV7Y
SEW BG1.5 8253846
SEW DEH21B
SEW DFE24B
SEW UOH11B
SEW 0187098X BM30-BM62
SEW 1836706 BE5AbmG24
SEW BG1.4 8278814
SEW BG3 8253862
SEW DEH11B
SEW DER11B
SEW DEU21B
SEW DIP11B
如果您需要完整的SEW的相關技術咨詢，請隨時致電愛澤工業（021-3100 6702），或者訪問網站jjxdch.cn,我們將盡全力解決您的問題。
If you have any question for SEW，please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
