愛澤工業2022年8月部分到貨產品專題及庫存
——DYNAPAR丨NORTHSTAR丨HENGSTLER編碼器篇
如下為我司愛澤工業IZE_Industries本月到貨DYNAPAR丨NORTHSTAR丨HENGSTLER編碼器相關產品，歡迎致電索取樣本資料和產品信息。
DYNAPAR編碼器62-AAEF-1024-A0
DYNAPAR編碼器HD2520100033A
DYNAPAR（HENGSTLER）編碼器HD2521000063S
DYNAPAR編碼器HS35R012073A1PS
DYNAPAR編碼器HS35R0500D30H04
DYNAPAR編碼器ST81024ZC09EVCC
HENGSTLER編碼器0566713 AC581212EX.42SCX5849
HENGSTLER編碼器AD361217AF.ORBIX:6278
HENGSTLER編碼器HC54H5000023A
NORTHSTAR分配器RIMSS2

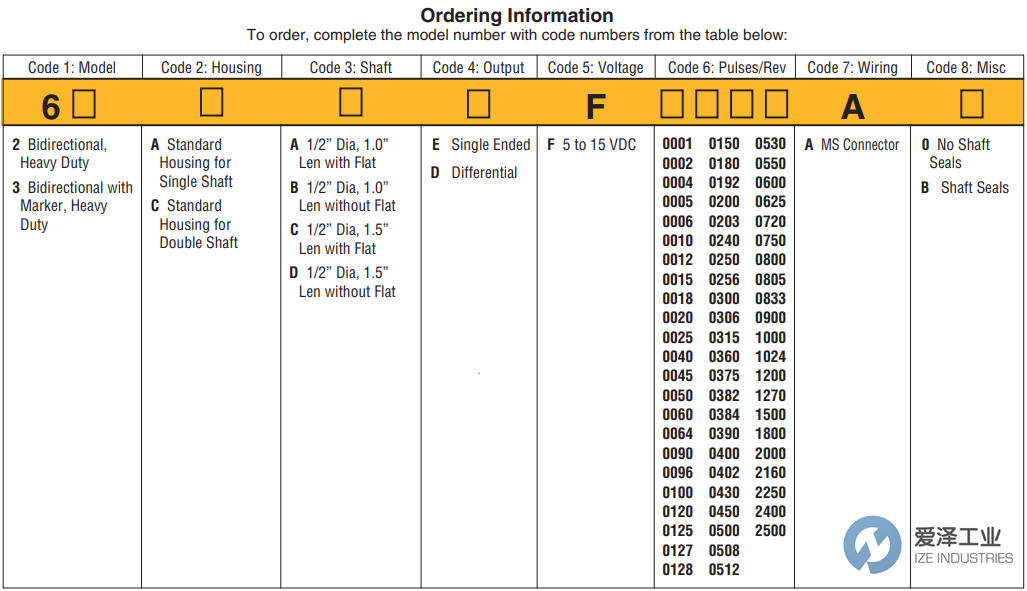

DYNAPAR編碼器60系列介紹
60 系列是一款堅固耐用的增量式光學編碼器，適用于速度、位置和運動應用。標準機械尺寸 35 封裝專為高分辨率應用和惡劣的工業環境而設計。
帶 1/2" 直徑軸的重型軸承
LED光源
堅固的磁盤
多種分辨率可供選擇，最高可達 2500 PPR
伺服環和面安裝選項
The Series 60 is a rugged, incremental, optical encoder for speed, position, and motion applications. The standard mechanical size 35 package is designed for high resolution applications and rugged industrial environments.
Heavy-duty Bearings with 1/2" Diameter Shaft
LED Optical Light Source
Unbreakable Disk
Wide Selection of Resolutions Available up to 2500 PPR
Servo Ring and Face Mount Options

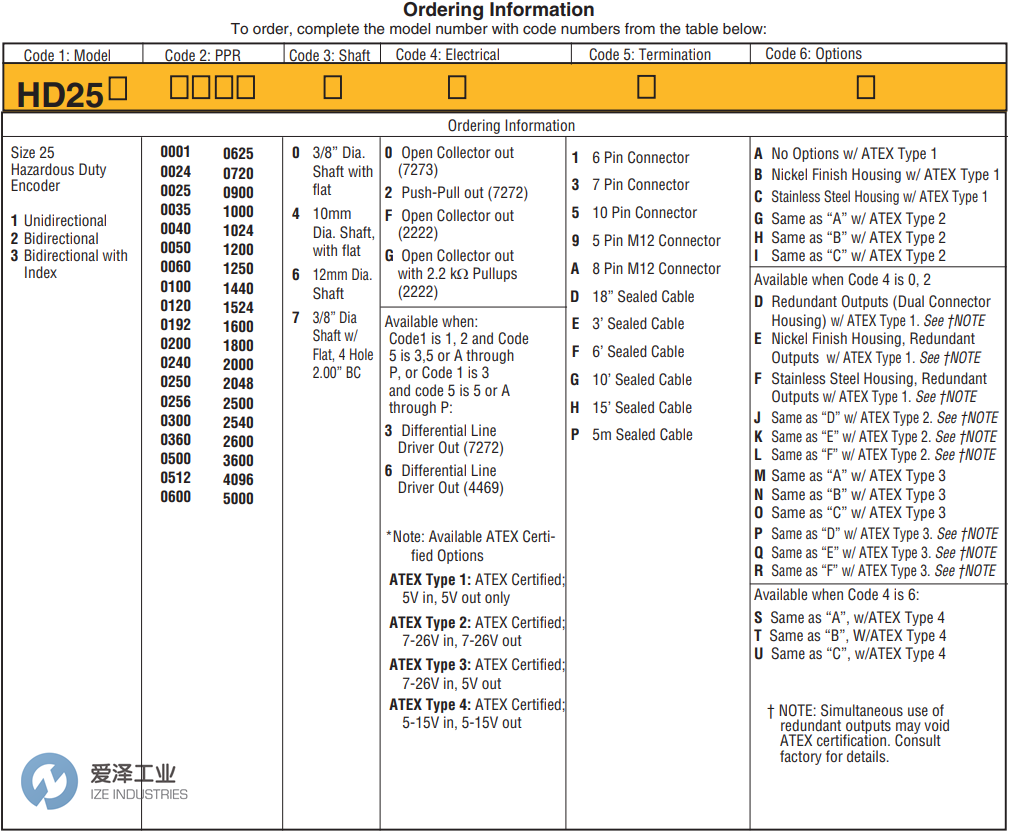

DYNAPAR編碼器HD25系列介紹
HD25光學編碼器是具有 ATEX 認證輸出選項的 2.5" OD 本安編碼器。它非常適合需要嚴格沖洗的腐蝕性環境的機器應用，包括需要高壓蒸汽或腐蝕性化學品以滿足法規要求的應用。這款緊湊型專用編碼器旨在提供超過 IP66/IP67 和 NEMA 6 外殼要求，PPR 范圍高達 5000。
具有單或雙隔離輸出的 SIZE 25 危險型編碼器
經 ATEX、CSA、IECEx 認證，適用于危險應用
高達 5000 PPR 的堅固的密碼盤
IP67 等級的特殊外殼和密封件
陽極氧化鋁、不銹鋼或鍍鎳外殼
提供軸式和輪轂軸式
The HD25 Harsh-Duty Optical Encoder is 2.5" OD Intrinsically Safe Encoder with ATEX Certified Output Options. It is ideal for machine applications with corrosive environments that demand stringent wash-downs including those where high pressure steam or caustic chemicals are needed to meet regulatory requirements. This compact, special-duty encoder is designed to exceed IP66/IP67 and NEMA 6 enclosure requirements with a PPR range through 5000.
Size 25 Hazardous-Duty Encoder with Single or Dual Isolated Outputs
ATEX, CSA, IECEx Certified for Hazardous Duty Applications
Unbreakable Code Disc up to 5000 PPR
Special Housing and Seals for IP67 Rating
Anodized Aluminum, Stainless Steel, or Nickel Plated Housing
Available in Shafted and Hub-Shafted

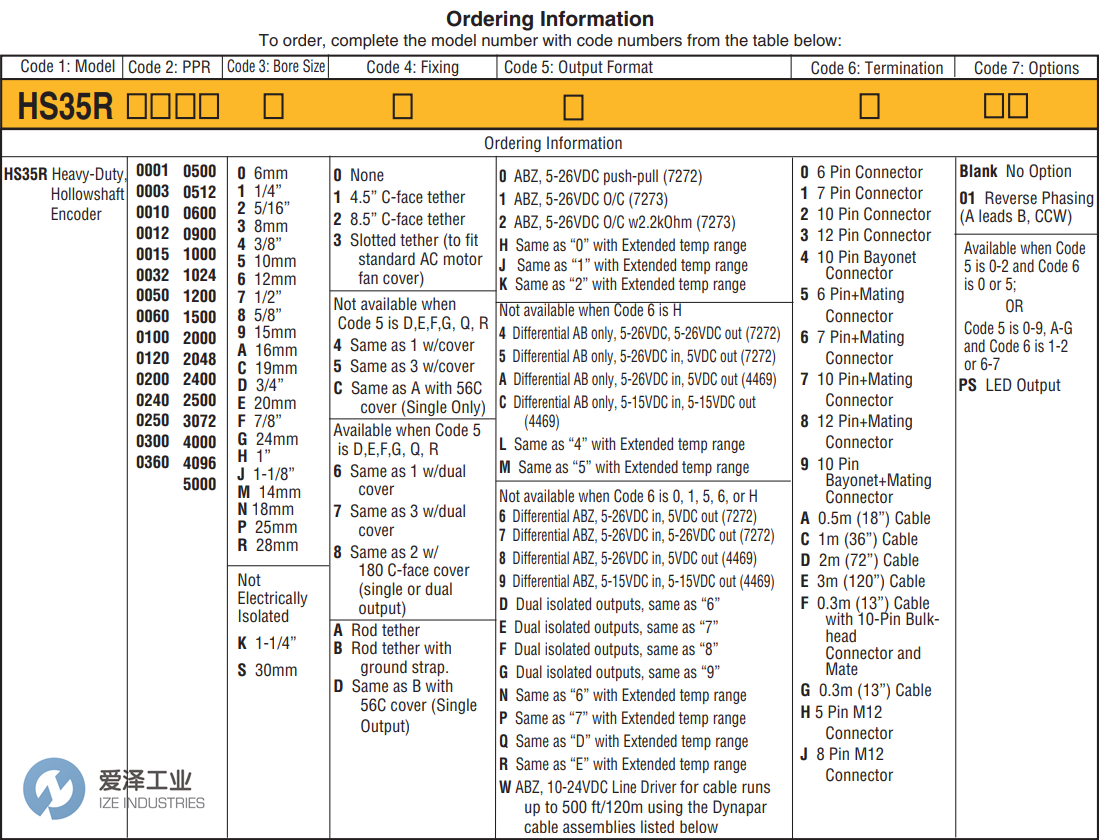

DYNAPAR編碼器HS35R系列介紹
HS35R 具有 400g 沖擊等級、IP67 密封和 -40oC 至 100oC 的寬溫度范圍，提高了矢量編碼器性能的標準，在軋機和重型工廠環境中提供更高的可靠性并最大限度地延長設備正常運行時間。
相控陣傳感器提供可靠的信號輸出
堅固的設計可承受高達 400g 的沖擊和 20g 的振動
可定制的安裝選項，包括帶有可選接地帶的扭矩臂
高達 5000 PPR 的牢不可破的密碼盤
IP67 選項的重型設計
400G 沖擊和 20G 振動獨立驗證
With 400g shock rating, IP67 sealing, and wide -40oC to 100oC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.
Phased Array Sensor for Reliable Signal Output
Rugged Design Withstands up to 400g Shock and 20g Vibration
Customizable Mounting Options including Torque Arm with Optional Grounding Strap
Unbreakable Code Disc up to 5000 PPR
Heavy Duty Design Rated for IP67 Option
400G Shock and 20G Vibration Independently Validated

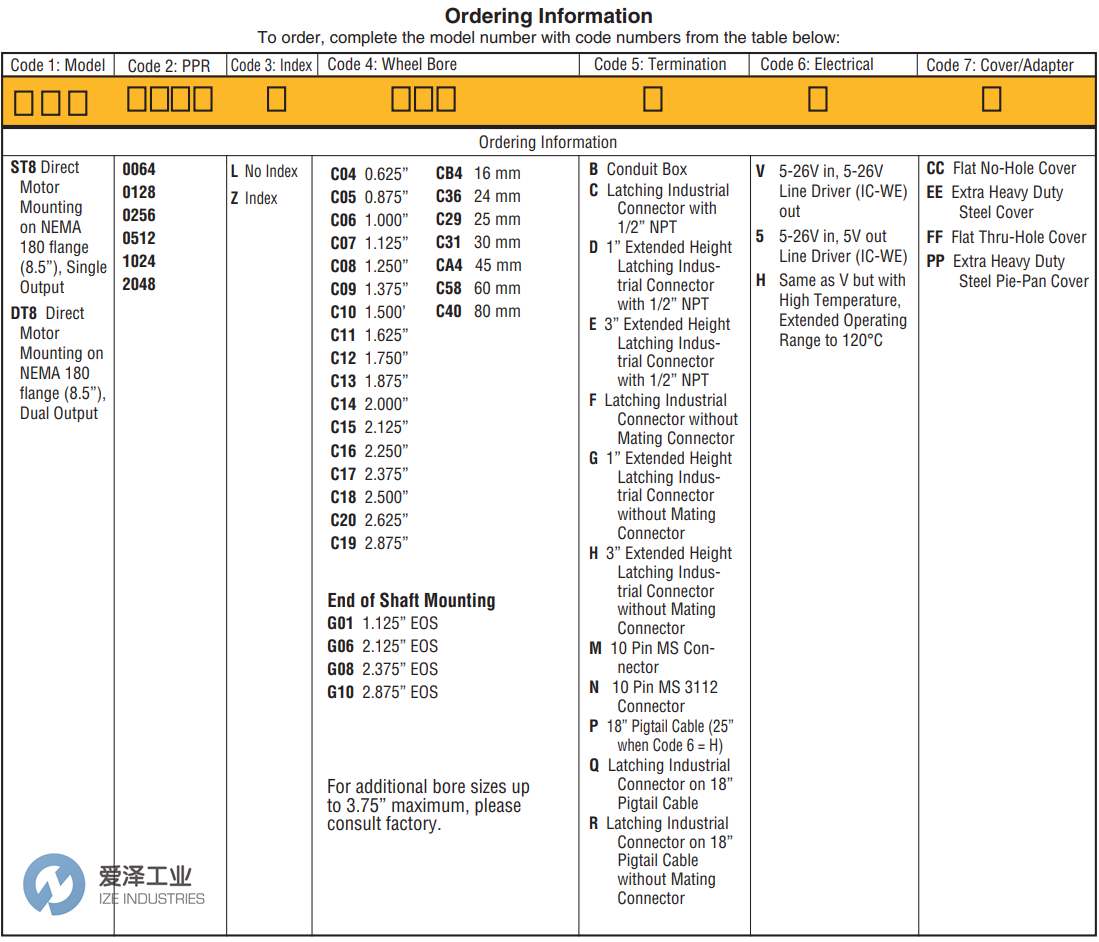

DYNAPAR編碼器ST85系列介紹
SLIM Tach NexGen ST85磁性編碼器是8.5" C 面無軸承磁編碼器，附帶大傳感器氣隙和主動診斷 LED。
使用我們的革命性傳感器技術重新設計，提供 0.060 英寸的大氣隙
無軸承設計可安裝到 180 個 C 面電機
可用于“三明治”安裝的雙 C 面版本
帶有現場可維修連接器的陽極氧化鋁外殼
診斷 LED 可方便地查看編碼器功能狀態
SLIM Tach NexGen ST85 Magnetic Encoder is 8.5" C-Face Bearingless Magnetic Encoder with Large Sensor Air Gap and Active Diagnostic LED
Redesigned using our Revolutionary Sensor Technology to provide a Large Air Gap of 0.060”
Bearingless Design Mounts to 180 C-Face Motors
Dual C-Face Versions Available for “Sandwich” Mounting
Anodized Aluminum Housing with Field-Serviceable Connector
Diagnostic LED for Convenient Visual of Encoder Functionality Status
HENGSTLER編碼器AC58系列介紹
AC58 系列將一系列絕對值旋轉編碼器與光學掃描相結合，適用于眾多應用領域。 58 mm 編碼器有實心軸或空心軸型號，可滿足幾乎所有涉及電機反饋的苛刻工業應用和使用的要求。
單圈和多圈絕對值編碼器
廣泛的溫度范圍：-40 至 +100°C
分辨率：高達 34 位（單圈 22 位，多圈 12 位，取決于接口）
結構緊湊：50 毫米長
高 EMC 兼容性
各種總線連接：SSI、BiSS、EtherCAT、Profibus、Profi net、CANopen、CANlayer2、DeviceNet、Interbus 和 SUCOnet
The AC58 series combines a series of absolute rotary encoders with optical scanning for numerous fields of application. The 58 mm encoders are available as solid-shaft or hollow-shaft models and meet the requirements for nearly every demanding industrial application and use involving motor feedback.
Single-turn and multi-turn absolute encoders
Broad temperature range: -40 to +100°C
Resolution: up to 34 bits (22 bits in single-turn, 12 bits in multi-turn, depending upon interface)
Compact construction: 50 mm long
High EMC compatibility
Various bus connections: SSI, BiSS, EtherCAT, Profibus, Profinet, CANopen, CANlayer2, DeviceNet, Interbus and SUCOnet

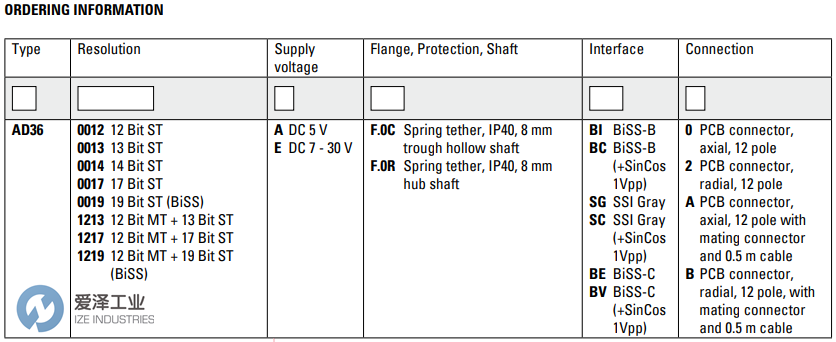

HENGSTLER編碼器AD36系列介紹
AD 36 是一款光學絕對編碼器，帶有多圈齒輪和光學掃描，尺寸為 36 mm。作為同類產品中的型號，它提供 8 毫米通孔空心軸，可實現與旋轉變壓器兼容的安裝。機械概念基于安裝在雙滾珠軸承中的軸組件，具有靈活的扭矩支撐。AD36 適用于安裝在框架高度較小的 BLDC 伺服電機中。BiSS 或 SSI 通信接口可以設置完全數字化的控制電路。它具有高達 19 位單圈和 12 位多圈的分辨率。
用于無刷伺服電機
安裝與旋轉變壓器尺寸 15 兼容
帶 8 mm 通孔空心軸
19位單圈+12位多圈
-40°C 至 +120°C 工作溫度
10,000 rpm 連續運行
齒輪光學多圈
SSI 或 BiSS 接口
正弦波 1 Vpp
500 kHz 帶寬
The AD 36 is an optical absolute encoder with a multi-turn gear and optical scanning, size 36 mm. As the only model in its class, it offers an 8 mm through hollow shaft, which allows resolver-compatible installation. The mechanical concept is based on a shaft assembly mounted in dual ball-bearings with a flexible torque support. The AD36 is suitable for fitting in BLDC servo motors with small frame heights. The BiSS or SSI communication interface enables control circuits to be set up that are completely digital. It is available with resolutions of up to 19 bits single-turn and 12 bits multi-turn.
For brushless servomotors
Installation compatible with resolver size 15
With 8 mm through hollow shaft
19 bits single-turn + 12 bits multi-turn
-40°C to +120°C operating temperature
10,000 rpm in continuous operation
Geared optical multi-turn
SSI or BiSS interface
Sinewave 1 Vpp
500 kHz bandwidth
NORTHSTAR分配器RIMSS2介紹
信號分離器將接受 4-26 VDC 信號，并根據用戶定義的電壓水平提供兩個獨立且完全隔離的 5-26 VDC 線路驅動器輸出。 其光學隔離輸入接受來自差分線路驅動器、集電極開路甚至接近探頭的正交或單通道輸入，無論是否帶有互補信號。 信號分離器還具有重復和放大信號的能力。 信號分配器的每個輸出均可由用戶自定義，范圍為 5 至 26 VDC。 除了短路保護外，輸出還根據 MIL-STD-883 進行 ESD 保護。 信號分離器的每個連接器都配備了兩個用于 +VCC 和公共端的位置，以及兩個額外的可訪問連接點，使電源連接變得簡單快捷。 能夠驅動高達 26 VDC 的輸出信號，信號分離器也可以在任一輸出斷開的情況下工作。
消除了兩個獨立編碼器的費用和維護
光隔離輸出可以同時發送到電機驅動器和顯示器
與幾乎所有本品牌的增量數字編碼器兼容
解決長距離和電氣干擾問題
The Signal Splitter will accept 4-26 VDC signals and provide two independent and completely isolated line driver outputs of 5-26 VDC based on user de-ned voltage levels. Its optically isolated inputs accept quadrature or single channel inputs, with or without their complements, from di?erential line drivers, open collector, and even from proximity probes. The Signal Splitter also has the ability to repeat and amplify signals. Each output of the Signal Splitter is user de-nable from 5 to 26 VDC. In addition to short circuit protection, outputs are ESD protected according to MIL-STD-883. Each connector of the Signal Splitter is equipped with two positions for +VCC and common, as well as two extra -eld accessible tie points, making power supply connections simple and quick. Capable of driving the output signal up to 26 VDC, the Signal Splitter will also function with either output disconnected.
Eliminates the expense and maintenance of two separate encoders
Optically isolated outputs can be sent to a motor drive and a display at the same time
Compatible with virtually every incremental digital encoder
Combats long distance and electrical interference problems
DYNAPAR丨NORTHSTAR丨HENGSTLER編碼器/分配器常用型號：
DYNAPAR HS35R10240256
DYNAPAR HS35R10240317
DYNAPAR HS35R10240346
DYNAPAR HS35R10240362
DYNAPAR HS35R10240372PS
DYNAPAR HS35R10240477
DYNAPAR HS35R10240487
DYNAPAR HS35R102405A8
DYNAPAR HS35R102405P7
DYNAPAR HS35R102407E2
DYNAPAR HS35R1024101E
DYNAPAR ST81024LC04EVCC
DYNAPAR ST81024LC05CVCC
DYNAPAR ST81024LC05EVCC
DYNAPAR ST81024LC06CVCC
DYNAPAR ST81024LC06MVPP
DYNAPAR ST81024LC07BVCC
DYNAPAR ST81024LC07BVFF
DYNAPAR ST81024LC07CVFF
DYNAPAR ST81024LC07DVCC
DYNAPAR ST81024LC07EVCC
DYNAPAR ST81024LC07QVPP
DYNAPAR ST81024LC12EVCC
DYNAPAR 62-AAEF-1024-A0
DYNAPAR HD2520100033A
DYNAPAR HD2521000063S
DYNAPAR HS35R012073A1PS
DYNAPAR HS35R0500D30H04
HENGSTLER AD361217AF
HENGSTLER HC54H5000023A
HENGSTLER 0566713 AC581212EX.42SCX5849
HENGSTLER AC58/0012ES.41PGB
HENGSTLER AC58/0012EK.42DPZ
HENGSTLER AC58/0012EK.72PGB
HENGSTLER AC58/0012EF.47SGA
HENGSTLER AC58/0012EF.47OLB-F0
HENGSTLER AC58/0012EK.42OLA
HENGSTLER AC58/0012EK.42SBA
HENGSTLER AC58/0012EK.42PBB
HENGSTLER AC58/0012EK.42SBB-F0-C
HENGSTLER AC58/0012ES.41PBB-U
HENGSTLER AC58/0012ES.41PGA
HENGSTLER AC58/0012EK.42PGV
HENGSTLER AC58/0012ES.41SGH
HENGSTLER AC58/0012EK.42PGU
NORTHSTAR RIMSS2
NORTHSTAR RIMSSW
如果您需要完整的DYNAPAR丨NORTHSTAR丨HENGSTLER編碼器的相關技術咨詢，請隨時致電愛澤工業（021-3100 6702），或者訪問網站jjxdch.cn,我們將盡全力解決您的問題。
If you have any question for DYNAPAR丨NORTHSTAR丨HENGSTLER encoder，please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
