愛澤工業2022年3月部分到貨產品專題及庫存
——WHITTET-HIGGINS篇
如下為我司愛澤工業IZE_Industries本月到貨WHITTET-HIGGINS相關產品，歡迎致電索取樣本資料和產品信息。
WHITTET-HIGGINS墊圈W20
WHITTET-HIGGINS螺母BH-05
WHITTET-HIGGINS螺母BH-06
WHITTET-HIGGINS螺母BH-11
WHITTET-HIGGINS螺母BH20
WHITTET-HIGGINS螺母CNM-12

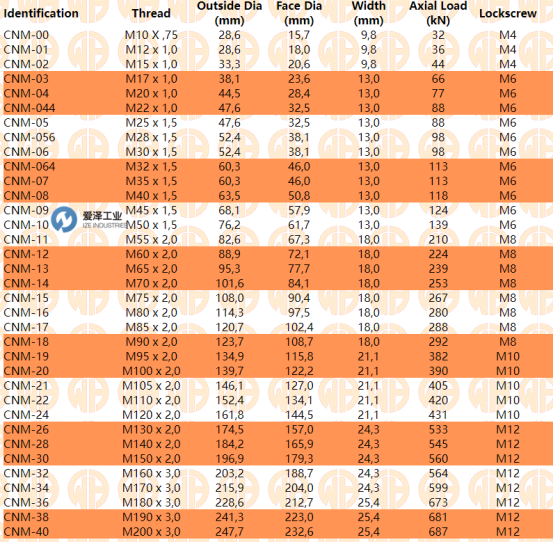

WHITTET-HIGGINS螺母CNM系列介紹及選型
該系列夾緊螺母具有符合ISO公制標準的軸承螺紋、配合和公差，因此可與越來越多地用于軸承和其他動力傳輸組件的公制保持裝置完全互換。這些螺紋符合ISO 965標準。
軸承面—具有高于面直徑的間隙釋放的一側 - 加工成與螺紋的中徑軸線成直角，因此一轉的跳動總指示器讀數偏差不大于：50微米（0.002英寸）用于00至14尺寸，100微米（0.004英寸）用于15至40尺寸。
This series of CLAMP NUTS has the bearing threads specified to the ISO Metric standards, fits, and tolerances thus are fully interchangeable with metric retaining devices increasingly used in bearing and other power transmission assemblies. These threads are in accordance with the ISO Standard 965.
The bearing face - the side with the clearance relief above the face diameter - is machined square to the axis of the pitch diameter of the threads whereby the runout for one revolution has a total indicator reading variance no greater than: 50 Microns (.002 inches) for sizes 00 to 14, 100 Microns (.004 inches) for sizes 15 to 40.

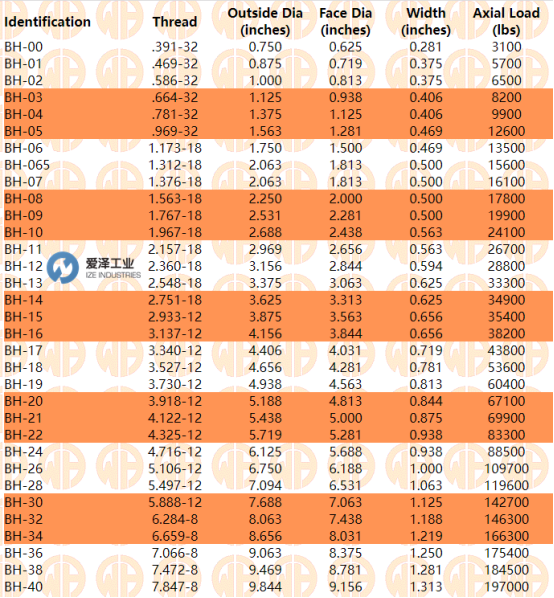

WHITTET-HIGGINS螺母BH系列介紹及選型
該系列BEARHUG鎖緊螺母帶有尼龍?zhí)篆h(huán)，是精密的自鎖螺母。它設計用于與N和AN鎖緊螺母相同的軸尺寸，但具有自鎖和超精密的附加功能，其中它已成為精密軸承和動力傳輸組件的最重要部件。
這些螺母的軸承面與其螺紋中徑之間的跳動具有一圈總指示器讀數不大于：00到04尺寸為0.0004英寸，05至20尺寸為0.0006英寸，05到20尺寸為0.0008英寸21 到 40。
座位表面在40微英寸以內。
This series of BEARHUG Locknuts, with a nylon collar, is the mainstay of the precision self-locking nuts. It is designed for the same shaft dimensions as are the N and AN locknuts, but with the added features of self-locking and super precision wherein it has become a most important component for precision bearing and power transmission assemblies.
The runout of the bearing face of these nuts to the pitch diameter of their threads have a one revolution total indicator reading no greater than: .0004 inches for sizes 00 through 04, .0006 inches for sizes 05 through 20, .0008 inches for sizes 21 through 40.
Seating surface is within 40 micro-inches.

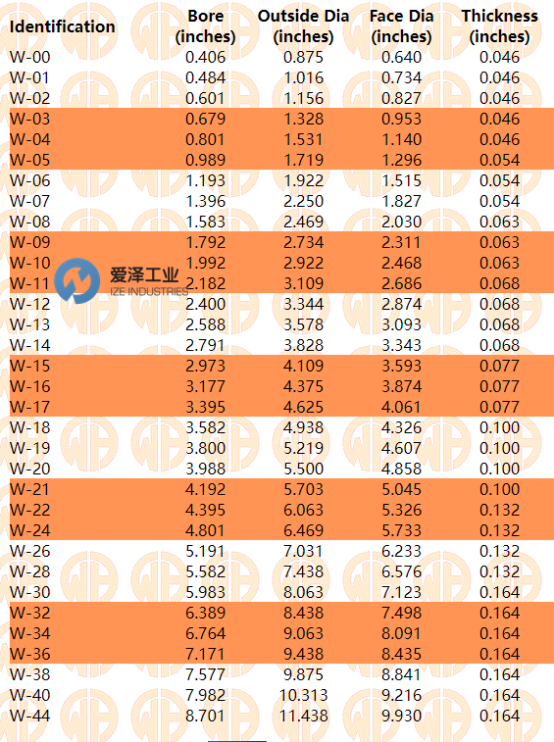

WHITTET-HIGGINS墊圈W系列介紹及選型
最常用的鎖緊墊圈。它們由足夠柔軟的材料制成，因此柄腳可以承受組裝中的多次鎖定和解鎖彎曲，但材料足夠堅硬以抵抗可能由扳手槽角施加的剪切作用。鍵沿與柄腳相反的方向彎曲并沿軸軸向彎曲，以安裝在軸承座圈下方的軸鍵槽中，從而為剪切作用提供更大的阻力，并為軸承的內座圈提供支撐。
Most commonly used lockwashers. They are made of a material sufficiently soft so the tangs will withstand several bends of locking and unlocking in assembly, but of a material sufficiently hard to resist the shearing action which may be exerted by the corner of the spanner slots. The key is bent in the opposite direction of the tang and axially to the shaft to fit in a shaft keyway under the bearing race to provide greater resistance to the shearing action and to provide support with the inner race of the bearing.
WHITTET-HIGGINS螺母/墊圈其他型號：
WHITTET-HIGGINS CNM-00
WHITTET-HIGGINS CNM-01
WHITTET-HIGGINS CNM-02
WHITTET-HIGGINS CNM-03
WHITTET-HIGGINS CNM-04
WHITTET-HIGGINS CNM-044
WHITTET-HIGGINS CNM-05
WHITTET-HIGGINS CNM-056
WHITTET-HIGGINS CNM-06
WHITTET-HIGGINS CNM-064
WHITTET-HIGGINS CNM-07
WHITTET-HIGGINS CNM-08
WHITTET-HIGGINS CNM-09
WHITTET-HIGGINS CNM-10
WHITTET-HIGGINS CNM-11
WHITTET-HIGGINS CNM-12
WHITTET-HIGGINS CNM-13
WHITTET-HIGGINS CNM-14
WHITTET-HIGGINS CNM-15
WHITTET-HIGGINS CNM-16
WHITTET-HIGGINS CNM-17
WHITTET-HIGGINS CNM-18
WHITTET-HIGGINS CNM-19
WHITTET-HIGGINS CNM-20
WHITTET-HIGGINS CNM-21
WHITTET-HIGGINS CNM-22
WHITTET-HIGGINS CNM-24
WHITTET-HIGGINS CNM-26
WHITTET-HIGGINS CNM-28
WHITTET-HIGGINS CNM-30
WHITTET-HIGGINS CNM-32
WHITTET-HIGGINS CNM-34
WHITTET-HIGGINS CNM-36
WHITTET-HIGGINS CNM-38
WHITTET-HIGGINS CNM-40
WHITTET-HIGGINS BH-00
WHITTET-HIGGINS BH-01
WHITTET-HIGGINS BH-02
WHITTET-HIGGINS BH-03
WHITTET-HIGGINS BH-04
WHITTET-HIGGINS BH-05
WHITTET-HIGGINS BH-06
WHITTET-HIGGINS BH-065
WHITTET-HIGGINS BH-07
WHITTET-HIGGINS BH-08
WHITTET-HIGGINS BH-09
WHITTET-HIGGINS BH-10
WHITTET-HIGGINS BH-11
WHITTET-HIGGINS BH-12
WHITTET-HIGGINS BH-13
WHITTET-HIGGINS BH-14
WHITTET-HIGGINS BH-15
WHITTET-HIGGINS BH-16
WHITTET-HIGGINS BH-17
WHITTET-HIGGINS BH-18
WHITTET-HIGGINS BH-19
WHITTET-HIGGINS BH-20
WHITTET-HIGGINS BH-21
WHITTET-HIGGINS BH-22
WHITTET-HIGGINS BH-24
WHITTET-HIGGINS BH-26
WHITTET-HIGGINS BH-28
WHITTET-HIGGINS BH-30
WHITTET-HIGGINS BH-32
WHITTET-HIGGINS BH-34
WHITTET-HIGGINS BH-36
WHITTET-HIGGINS BH-38
WHITTET-HIGGINS BH-40
WHITTET-HIGGINS W-00
WHITTET-HIGGINS W-01
WHITTET-HIGGINS W-02
WHITTET-HIGGINS W-03
WHITTET-HIGGINS W-04
WHITTET-HIGGINS W-05
WHITTET-HIGGINS W-06
WHITTET-HIGGINS W-07
WHITTET-HIGGINS W-08
WHITTET-HIGGINS W-09
WHITTET-HIGGINS W-10
WHITTET-HIGGINS W-11
WHITTET-HIGGINS W-12
WHITTET-HIGGINS W-13
WHITTET-HIGGINS W-14
WHITTET-HIGGINS W-15
WHITTET-HIGGINS W-16
WHITTET-HIGGINS W-17
WHITTET-HIGGINS W-18
WHITTET-HIGGINS W-19
WHITTET-HIGGINS W-20
WHITTET-HIGGINS W-21
WHITTET-HIGGINS W-22
WHITTET-HIGGINS W-24
WHITTET-HIGGINS W-26
WHITTET-HIGGINS W-28
WHITTET-HIGGINS W-30
WHITTET-HIGGINS W-32
WHITTET-HIGGINS W-34
WHITTET-HIGGINS W-36
WHITTET-HIGGINS W-38
WHITTET-HIGGINS W-40
WHITTET-HIGGINS W-44
如果您需要完整的WHITTET-HIGGINS相關技術咨詢，請隨時致電愛澤工業（021-3100 6702），或者訪問網站jjxdch.cn,我們將盡全力解決您的問題。
If you have any question for WHITTET-HIGGINS，please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
