愛澤工業2021年12月部分到貨產品專題及庫存
——JEFFERSON篇
如下為我司愛澤工業IZE_Industries本月部分到貨JEFFERSON相關產品,歡迎致電索取樣本資料和產品信息。
JEFFERSON電磁閥1342BV08T
JEFFERSON閥1332LA12T-1
JEFFERSON電磁閥維修包K42V2

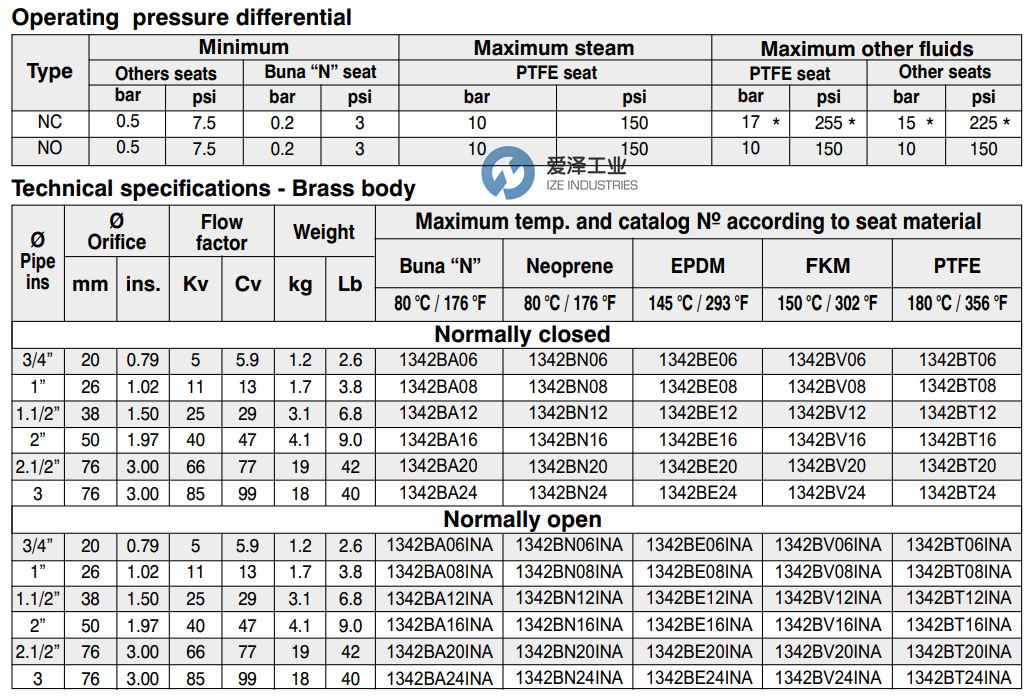

JEFFERSON電磁閥1342系列介紹及選型
主要特征:
常閉或常開。
伺服操作。
3/4" 至 3" BSP 或 NPT 螺紋連接。
閥體:鍛造黃銅或不銹鋼。
芯管 SS 304 和 316。
柱塞和固定芯:SS 430 F。
遮光線圈:銅、銀或鋁。
應用:
● 水泵、洗衣設備。
● 灌溉、壓縮機、污染控制。
● 中高壓蒸汽加熱。
● 高壓滅菌器,工業洗衣設備。
● 噴灑、灌溉。
● 空氣干燥器、水處理。
Main characteristics:
Normally closed or normally open.
Servo-operated action.
3/4" to 3”BSP or NPT threaded connections.
Body: Forged brass or stainless steel.
Core tube SS 304 and 316.
Plunger and fixed core: SS 430 F.
Shading coil: copper, silver or aluminium.
Applications:
● Pumps, Laundry equipments.
● lrigation, Compressors, Pollution controls.
● Heating with medium or high pressure steam.
● Autoclaves, Industrial laundry equipments.
● Spraying, Irigation.
● Air dryers, water treatment.

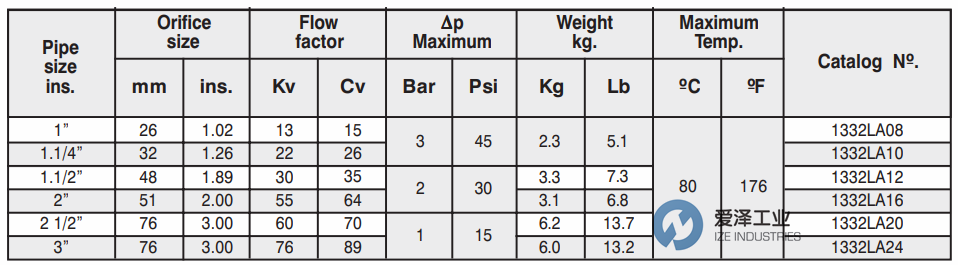

JEFFERSON閥1332系列介紹及選型
主要特征:
常閉。
直接作用。 沒有最低壓差操作。
“自由手柄”系統,即切斷電流時自動關閉,電信號打開時手動打開。
注塑或鑄鋁閥體。
丁鈉橡膠“N”座。
DIN 43650 連接封裝線圈。
IP65 和 NEMA 4 保護。
關閉或打開閥門查看器。
360o 旋轉外殼。
響應時間 < 50 毫秒。
芯管:304不銹鋼,芯彈簧:302不銹鋼,閥芯:430法蘭
遮光線圈:銅。
應用
? 在鍋爐燃燒系統中與溫度限制、壓力、火焰不足、液位等一起工作的關閉安全系統。
? 充電功率超過 30,000 Kw/h 的燃燒設備和多個燃燒器。
? 用于自動和半自動爐的燃燒器。
Main characteristics:
Normally closed.
Direct acting. No minimum differential pressure to operate.
“Free handle” system, i.e., it closes automatically when current is cut off and opens manually when the electric signal is on.
Injected or cast aluminium body.
Buna “N” seat.
DIN 43650 Connection encapsulated coils.
IP65 and NEMA 4 Protection.
Closed or open valve viewer.
360o Rotating housing.
Response time < 50 milliseconds.
Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.
Shading coil: copper.
Applications
?Shutoff security systems that work with temperature limits, pressure, lack of flame, level, etc., in boiler combustion systems.
?Combustion equipment with charges over 30,000 Kw/h and multiple burners.
?Burners for automatic and semiautomatic furnaces.
JEFFERSON閥其他常用型號:
JEFFERSON 1342BA06
JEFFERSON 1342BA08
JEFFERSON 1342BA12
JEFFERSON 1342BA16
JEFFERSON 1342BA20
JEFFERSON 1342BA24
JEFFERSON 1342BN06
JEFFERSON 1342BN08
JEFFERSON 1342BN12
JEFFERSON 1342BN16
JEFFERSON 1342BN20
JEFFERSON 1342BN24
JEFFERSON 1342BE06
JEFFERSON 1342BE08
JEFFERSON 1342BE12
JEFFERSON 1342BE16
JEFFERSON 1342BE20
JEFFERSON 1342BE24
JEFFERSON 1342BV06
JEFFERSON 1342BV08
JEFFERSON 1342BV12
JEFFERSON 1342BV16
JEFFERSON 1342BV20
JEFFERSON 1342BV24
JEFFERSON 1342BT06
JEFFERSON 1342BT08
JEFFERSON 1342BT12
JEFFERSON 1342BT16
JEFFERSON 1342BT20
JEFFERSON 1342BT24
JEFFERSON 1332LA08
JEFFERSON 1332LA10
JEFFERSON 1332LA12
JEFFERSON 1332LA16
JEFFERSON 1332LA20
JEFFERSON 1332LA24
如果您有任何關于產品的相關技術咨詢或者需要JEFFERSON的相關技術資料與文檔,請隨時致電愛澤工業(021-3100 6702),或者訪問網站jjxdch.cn,我們將盡全力解決您的問題。
If you have any question for JEFFERSON,
please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
