OIL CONTROL成立于1974年(現被博士力士樂收購),在意大利工業領域運動控制閥移動機械市場占有很高的市場容量,且業績?cè)谄嚭凸こ虣C(jī)械行業迅速增長。今天的OIL CONTROL公司,已是移動設備與機械領域的閥門優質供應商,可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有:換向閥,止回閥,電磁閥,平衡閥,球閥,插裝閥,單向閥,溢流閥,行程閥,驅動閥,安全閥,閥組,閥塊,電磁閥線圈,流量計等等。
Technical data | |
Max. operating pressure port 1 (P) | 350 bar (5000 psi) |
Max. pressure admitted port 2 (T) | 140 bar (2000 psi) |
Max. flow | 30 l/min (8 gpm) |
Max. internal leakage1) | 15 drops/min. |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 45 - 50 Nm (33 - 37 ft-lbs) |
Weight2) | 0.17 kg (0.38 lbs) |
Special cavity | 008 (see data sheet 18325-75) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit3) | Code: RG0008010000100 |
Fluids | Mineral-based or synthetics with lubricating properties |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation position | No restrictions |
Other Technical Data | See data sheet 18350-50 |

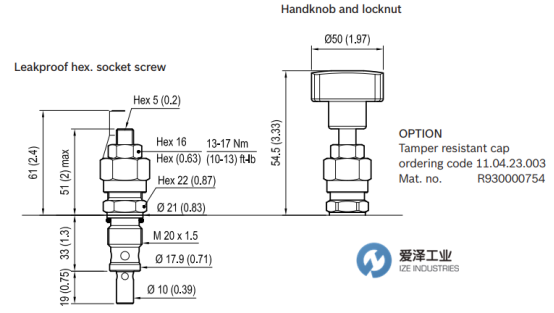

REXROTH閥VS-30系列外觀尺寸圖

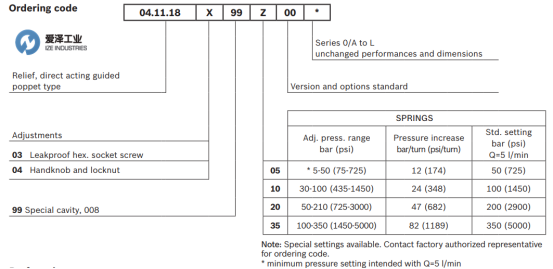

REXROTH閥VS-30系列選型
REXROTH閥VS-30系列其他常用型號:
REXROTH 041118049905000 R930000148
REXROTH 041118049910000 R930000149
REXROTH 041118049920000 R901127942
REXROTH 041118049935000 R930000151
REXROTH 041118039905000 R901113613
REXROTH 041118039910000 R901113614
REXROTH 041118039920000 R901226876
REXROTH 041118039935000 R901113617
REXROTH valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥041118039910000 R901113614的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH閥041118039910000 R901113614技術參數及選型
