KAWASAKI是一家日本制造商，生產摩托車、發動機、重型設備、航空航天，機車車輛和船舶等。它還積極參與生產工業機器人、燃?xì)廨啓C(jī)、水泵、鍋爐等工業產品。
KAWASAKI閥PRBP10P-10/350-EB技術參數
Code | PRBP10P-10/350-EB |
Type | [PRBP] Pressure reducing valve of solenoid proportional balanced piston type |
Nominal dimension | [10] 10 |
Connection method | [P] Gasket connection type |
Series number | [10] 10 |
Highest adjustment pressure | [350] 34.3MPa (350kgf/cm2) |
Types with/without check valve | [No symbol] Types without the valve |
Solenoid ratings | [E] 14.2Ω×0.8A |
Electric connection symbol | [B] DIN connector |
Type of hydraulic oil | [No symbol] Mineral based hydraulic oil |
KAWASAKI閥PRBP系列介紹
電磁比例平衡活塞型減壓閥由電磁比例先導溢流閥和平衡活塞型減壓閥組成，可根據輸入電流以給定速率遠程控制液壓系統壓力。此外，放大器安裝型由電壓輸入控制。
特點
? 閥門的先導壓力由一次側提供，即使一次和二次壓力差或流量增加，閥門也可以使用先導流量，并提供穩定的性能。（公稱尺寸 20、30）
? 電磁比例先導溢流閥采用特殊阻尼機構，即使一次和二次壓力急劇變化，也能獲得出色的穩定性。
? 最大壓力限制裝置提供針對異常壓力的安全措施。
? 在電氣系統初始調整或故障期間，可以使用先導溢流閥上的手動壓力調節螺紋進行手動操作。
Pressure reducing valve of solenoid proportional balanced piston type consists of the solenoid proportional pilot relief valve and balanced piston type pressure reducing valve, and allows hydraulic system pressure to be remotely controlled at a given rate in proportion to the input current. In addition, amplifier mounted types are controlled by voltage input.
Features
? The pilot pressure for the valve is supplied from the primary side, which allows the valve to use pilot flow even when the primary and secondary pressure difference or flow rate increases and provides stable performance. (Nominal dimension 20, 30)
? The special damping mechanism is used in the solenoid proportional pilot relief valve, even when the primary and secondary pressure drastically changes, superior stability is obtained.
? The maximum pressure limiting device provides safety measures against abnormal pressure.
? During the initial adjustment or malfunction in the electrical system, manual operation can be done with the manual pressure adjustment thread on the pilot relief valve.

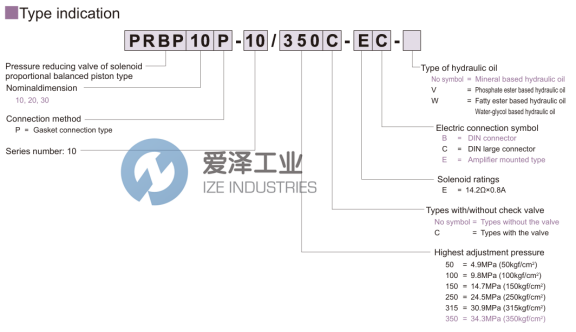

KAWASAKI閥PRBP系列選型
KAWASAKI閥PRBP系列其他常用型號：
KAWASAKI PRBP20P-10/350C-EC
KAWASAKI PRBP10P-10/350-EB
KAWASAKI PRBP10P-10/350C-EC
KAWASAKI VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KAWASAKI減壓閥PRBP10P-10/350-EB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KAWASAKI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
