BEX生產和銷售噴嘴和罐式混合噴射器已有五十多年歷史。BEX通過不斷追求創新設計并采用以客戶為導向的商業模式來實現這一目標。
Model Number | 1/4F4015 |
Equiv. Orif. Dia.(mm) | 2.4 |
Capacities at Various Pressures (LPM) | |
0.3 bar | 1.87 |
0.5 bar | 2.42 |
0.7 bar | 2.86 |
1 bar | 3.4 |
1.5 bar | 4.2 |
2 bar | 4.8 |
3 bar | 5.9 |
4 bar | 6.8 |
5 bar | 7.6 |
7 bar | 9 |
10 bar | 10.8 |
20 bar | 15.3 |
30 bar | 18.7 |
Spray Angles | |
1.5 bar | 35° |
3 bar | 40° |
5 bar | 41° |
BEX噴嘴F40系列介紹
噴霧特性
F40 噴嘴可產生扁平的扇形噴霧模式，噴霧角度為 40°，壓力為 40 PSI。噴霧密度朝模式邊緣逐漸減小，以便重疊，同時保持均勻的噴霧密度。這些噴嘴適用于各種清洗和噴涂應用。
構造
每個 BEX 模制噴嘴都設計有一系列“旋鈕”，這使得它們比六角形更容易用手指擰緊，尤其是在潮濕時。小型啟動筒的設計特點大大降低了安裝過程中噴嘴剝落或交叉螺紋的傾向。
SPRAY CHARACTERISTICS
The F40 spray nozzles produce a flat, fan-shaped spray pattern with a spray angle of 40° at 40 PSI. The spray density tapers off towards the edges of the pattern to allow for overlapping while maintaining uniform spray density. These nozzles are suitable for various washing and spraying applications.
CONSTRUCTION
Each BEX molded nozzle is designed with a series of “knobs” which makes them easierto finger tighten than a hex, especially when wet. The design feature of a small starter barrel greatly reduces the tendency to strip or cross-thread the nozzle during the installation.

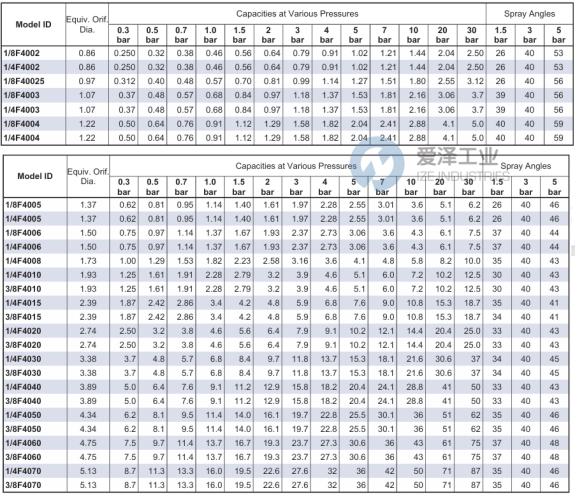

BEX噴嘴F40系列選型
BEX噴嘴F40系列其他常用型號：
BEX 1/8F4005
BEX 1/4F4005
BEX 1/8F4006
BEX 1/4F4006
BEX 1/4F4008
BEX 1/4F4010
BEX 3/8F4010
BEX 1/4F4015
BEX 3/8F4015
BEX 1/4F4020
BEX 3/8F4020
BEX 1/4F4030
BEX 3/8F4030
BEX 1/4F4040
BEX 3/8F4040
BEX 1/4F4050
BEX 3/8F4050
BEX 1/4F4060
BEX 3/8F4060
BEX 1/4F4070
BEX 3/8F4070
BEX NOZZLES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BEX噴嘴1/4F4015的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BEX噴嘴F40系列1/4F4015技術參數及選型
