ABB HDS伺服電機介紹
ABB HDS伺服電機介紹
HDS高性能交流永磁伺服電機，采用業界領先設計理念，全面考慮行業需求，融合多項先進制造技術，結合多年伺服電機制造和ABB 機器人本體及系統伺服應用經驗，更靈活、動態響應更高、控制精度更高。
該系列伺服電機可以滿足系統集成商、機器制造商的嚴苛需求，配合ABB伺服驅動和運動控制器，為客戶在智能制造新時代帶來前所未有的生產力和效率提升。
HDS high-performance AC permanent magnet servo motors, combine pioneering design and advanced manufacturing technologies to exceed expectations in demanding and high dynamic applications by providing superior control precision and dynamic response.
Every aspect of HDS motors are developed and assembled in our state of the art facility, built on our experience in a broad range of industry and the demands for precision and resilience expected from motors in our ABB robots. Together with ABB servo drives, HDS will deliver productivity and efficiency to customers in the new era of intelligent manufacturing.
特性
高轉矩密度與高功率密度：體積更小、質量更輕
低齒槽轉矩和低轉矩波動：優秀的低速性能和系統控制性能
優秀的過載能力：三倍電氣過載輸出，機械四倍過載承載能力
寬轉速特性，高轉速特性可選
高動態響應，精準動平衡
定子整體環氧灌封工藝：結構更緊湊、散熱更高效
精密法蘭和轉軸工藝：低噪聲、低震動
多種反饋選項，包括 Hiperface DSL —— 單電纜絕對值解決方案
Features
? High torque density and power density: reduced volume and weight
? Low cogging torque and torque ripple: excellent performance at low speed and system control
? Outstanding overload performance: 3 times peak torque, 4 times mechanical overload capacity
? Wide speed characteristic, optional high speed characteristic*3
? Fast dynamic response, accurate rotor balance
? Epoxy resin potting technology on complete stator: compact size and better heat dissipation
? Precise flange and shaft machining: low noise and vibration
? Various feedback options, including Hiperface DSL - single cable absolute encoder solution
應用
切割
飛剪
機加工
標簽
材料處理
Common applications
Cut-to-length
Flying shear
Machining
Labeling
Material handling
行業
包裝
食品飲料
一般制造
醫療
Common industries
Packaging
Food & beverage
Manufacturing
Medical
冷卻方式：全封閉，不通風； 風扇冷卻； 水冷
磁鐵材料：超高內稟矯頑力稀土
絕緣等級：F
安裝：IMB5； IMB35 可選
熱保護：3×PTC155
外墻涂料：環氧
顏色：電機本體：黑色。 端蓋：白色，帶有 ABB 標志
反饋裝置：旋轉變壓器。 增量/絕對編碼器。 DSL單線絕對值編碼器
防護等級（IP）：IP54 不帶油封；IP65 帶油封
認證：UL、CE
Cooling Method：Totally enclosed, non-ventilated; Fan-cooled; Water-cooled
Magnet Material：Ultra-high intrinsic coercive field rare earth
Insulation Class：F
Mounting：IMB5; IMB35 optional
Thermal Protection：3×PTC155
Exterior Paint：Epoxy
Color：Motor body: Black. End-cover: White, with ABB logo
Feedback Device：Resolver. Incremental/absolute encoder. DSL single-cable absolute encoder
Ingress Protection (IP)：IP54 without oil seal；IP65 with oil seal
Certification：UL, CE

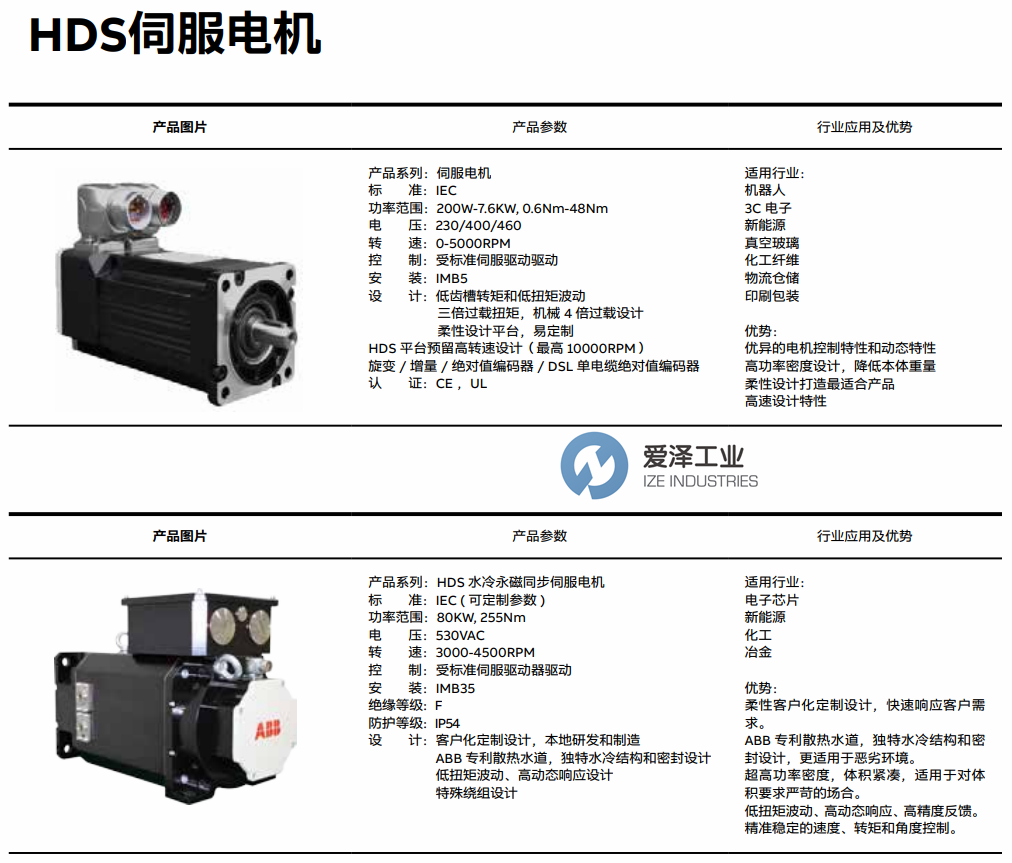

ABB HDS伺服電機分類
