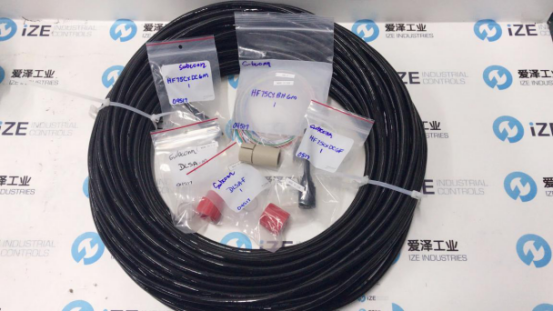

SUBCONN水密連接器 愛澤工業izeindustries發貨照片
SubConn Coax - Coax and Coax/Electric (50 and 75 ohm)
Connector specifications
Voltage rating on electric contacts: 300 V AC rms
DC rating: 85% of above AC rating
Current rating on electric contacts: 5 A per contact (max 20 A per connector)
HD video (75 ohms connector version): HD-SDI SMPTE292M (1.485 Gbps), 1920x1080 60i
50 ohm frequency*: 0.1 GHz / 0.3 GHz / 0.5 GHz / 0.7 GHz / 0.9 GHz / 1.1 GHz / 1.3 GHz / 1.5 GHz
50 ohm attenuation*: 1.4 dB / 3.0 dB / 4.1 dB / 6.3 dB / 8.0 dB / 11.2 dB / 15.9 dB / 18.5 dB
75 ohm frequency*: 0.1 GHz / 0.3 GHz /0.5 GHz /0.7 GHz / 0.9 GHz / 1.1 GHz / 1.3 GHz / 1.5 GHz
75 ohm attenuation*: 1.6 dB / 3.4 dB / 4.5 dB / 6.9 dB/ 7.9 dB /13.7 dB / 18.4 dB / 22.5 dB
Recommended max frequency for 50 and 75 ohm: 1.5 GHz
Insulation resistance: > 200 Mohm
Contact resistance: < 0.01 ohm
Wet matings: N/A (dry mating only)
Temperature rating (water): - 4 to 60?C, 25 to 140?F
Temperature rating (air): - 40 to 60?C, - 40 to 140?F
Storage temperature rating: - 40 to 60?C, - 40 to 140?F
Depth rating: 600 bar, 8,700 psi
SubConn? Coax connectors are dry mate only, and cannot take open face pressure. Locking sleeves are required.
Material specifications
Connector body: Chloroprene rubber
Bulkhead body: Brass, stainless steel, titanium or anodised aluminium
Power contacts: Female sockets in gold plated brass UNS - C36000, male pins in gold plated beryllium copper
Coax contacts: Gold plated contacts
O-rings: Nitrile
Locking sleeves POM
Snap rings: Stainless steel AISI 302
Inline cable (60 cm, 2 ft): PUR jacket cable with either 50 or 75 ohm coax and 6 x 20 AWG, 0.52 mm2 conductors
50 ohm bulkhead leads (100 cm 3.3 ft): RG188 coax
75 ohm bulkhead leads (100 cm 3.3 ft): RG179 coax
50 ohm 6 contacts bulkhead leads (100 cm 3.3 ft): 5 x 20 AWG, 0.52 mm2 coloured PTFE wires and RG188 coax
75 ohm 6 contacts bulkhead leads (100 cm 3.3 ft): 5 x 20 AWG, 0.52 mm2 coloured PTFE wires and RG179 coa
Nominal cable outside diameter (OD)
50 ohm coax PUR cable 0.290'', 7.38 mm
50 ohm, 6 conductor PUR cable 0.385'', 9.80 mm
75 ohm coax PUR cable 0.305'', 7.75 mm
75 ohm, 6 conductor PUR cable 0.385'', 9.80 mm
SUBCONN HF75CXBH6M 愛澤工業 SUBCONN HF75CXDX6M 愛澤工業 izeindustries
SUBCONN PVCX6C20 愛澤工業 SUBCONN DCSA-M 愛澤工業 izeindustries
