C-FLEX軸承尺寸及性能選型介紹
C-FLEX軸承介紹
C-Flex 軸承或樞軸是圓柱形有限旋轉軸承，具有較高的相對徑向和軸向剛度，可提供低、中或高扭轉彈簧剛度。它通常可用于 +/-30 的最大偏轉角，但可根據要求提供各種配置。扭轉剛度范圍從 0.0003 Lb-In/度到 7.8023 Lb-In/度。它可以簡單地用作振蕩單元或極其敏感的關鍵元件。
交叉撓曲軸承的優點已在光機械應用中更換滾珠軸承樞軸方面得到充分證明。 C-Flex 軸承優于替代品的應用之一是質譜儀的掃描鏡組件。在這里，兩鏡安裝在一個組件上，激光束被掃描到樣品上進行分析。 C-Flex 軸承的無潤滑、無摩擦運動非常適用于此類應用，其中軸承潤滑劑的釋氣可能會污染光學器件，并且由于持續受限旋轉而導致的軸承磨損最終會導致運動誤差。

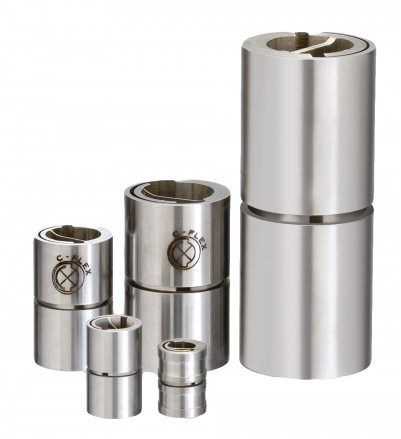

軸承本身由兩個不銹鋼套筒組成，由兩個平面上的三個板簧固定到位。套筒之間沒有接觸，消除了摩擦，并且彈簧還提供樞軸動作，該動作本質上是自定心的，不需要潤滑或維護。該軸承還提供一個額外的套筒，允許中央安裝，提供兩個樞軸臂（雙端軸承，尺寸 AD 至 JD）。
The C-Flex bearing or pivot is a cylindrical, limited rotational bearing, with a high relative radial and axial stiffness which is available in low, medium, or high torsional spring rates. It is typically available for maximum deflection angles of +/-30, but various configurations are supplied upon request. Torsional stiffness ranges from .0003 Lb-In/degree to 7.8023 Lb-In/degree. It can be used simply as an oscillating unit or an extremely sensitive critical element.
The advantages of cross-flexure bearings has been well documented in connection with the replacing of ball bearing pivots in optomechanical applications. One such application in which the C-Flex bearing has outperformed alternatives is the scanning mirror assembly of a mass spectometer. Here two mirrors are mounted on an assembly and laser beams are scanned across samples to be analyzed. The lubrication free, frictionless movement of the C-Flex bearings is ideal in applications such as this where the outgassing from bearing lubricants could contaminate the optics, and bearing wear due to continuous limited rotation would eventually result in movement errors.
The bearing itself consists of two stainless steel sleeves held in position by three leaf springs on two planes. There is no contact between the sleeves eliminating friction, and the springs also provide the pivotal action which is inherently self centering and requires no lubrication or maintenance. The bearing is also available with an additional sleeve allowing for central mounting providing two pivotal arms (the double end bearing, sizes AD to JD).

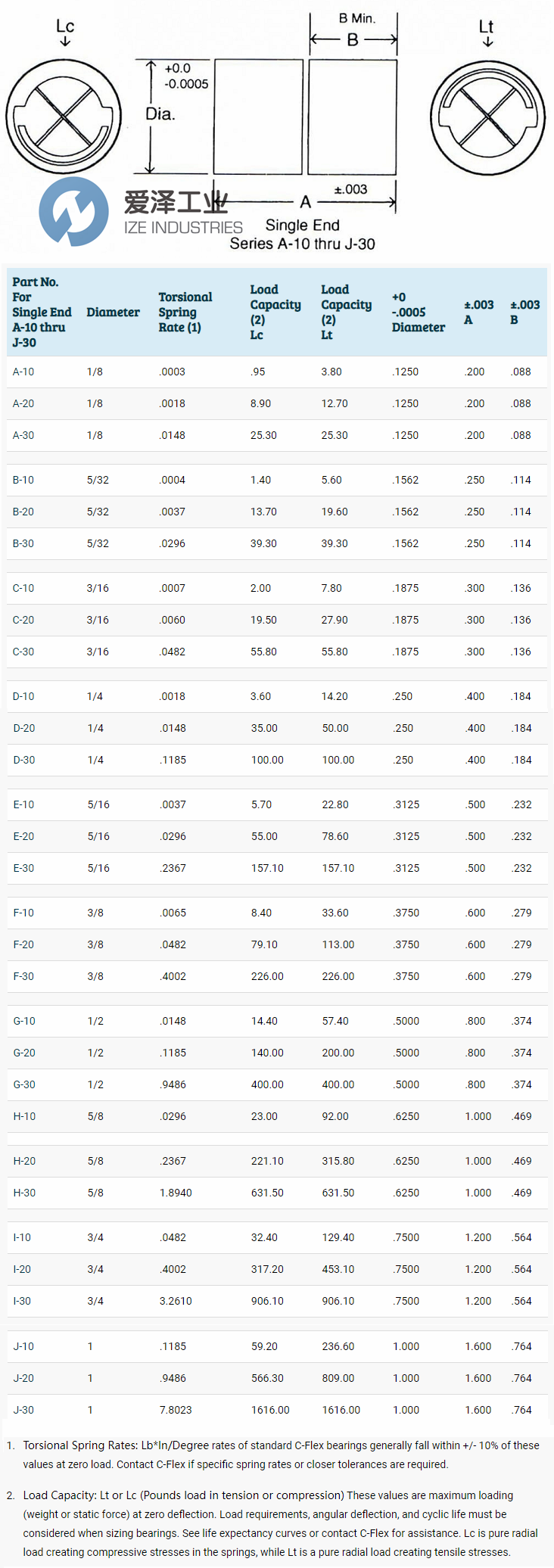

C-FLEX單端軸承選型

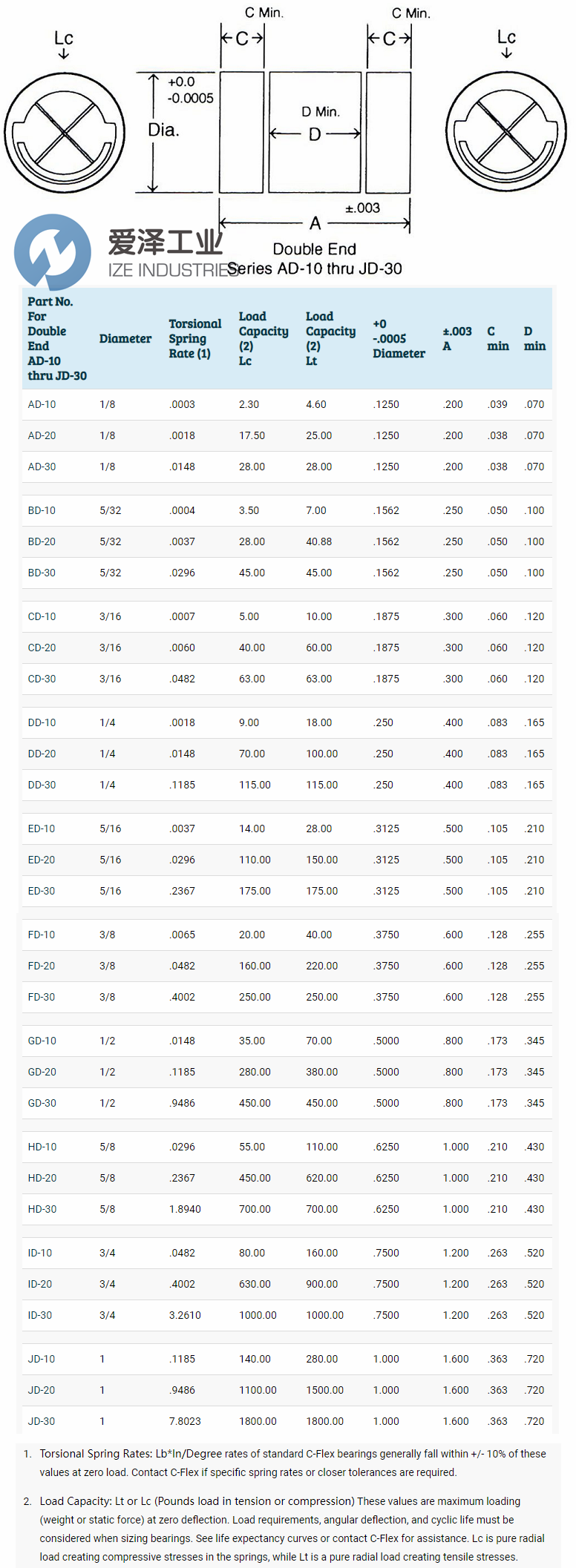

C-FLEX雙端軸承選型
C-FLEX軸承常用型號：
C-FLEX A-10
C-FLEX A-20
C-FLEX A-30
C-FLEX B-10
C-FLEX B-20
C-FLEX B-30
C-FLEX C-10
C-FLEX C-20
C-FLEX C-30
C-FLEX D-10
C-FLEX D-20
C-FLEX D-30
C-FLEX E-10
C-FLEX E-20
C-FLEX E-30
C-FLEX F-10
C-FLEX F-20
C-FLEX F-30
C-FLEX G-10
C-FLEX G-20
C-FLEX G-30
C-FLEX H-10
C-FLEX H-20
C-FLEX H-30
C-FLEX I-10
C-FLEX I-20
C-FLEX I-30
C-FLEX J-10
C-FLEX J-20
C-FLEX J-30
C-FLEX AD-10
C-FLEX AD-20
C-FLEX AD-30
C-FLEX BD-10
C-FLEX BD-20
C-FLEX BD-30
C-FLEX CD-10
C-FLEX CD-20
C-FLEX CD-30
C-FLEX DD-10
C-FLEX DD-20
C-FLEX DD-30
C-FLEX ED-10
C-FLEX ED-20
C-FLEX ED-30
C-FLEX FD-10
C-FLEX FD-20
C-FLEX FD-30
C-FLEX GD-10
C-FLEX GD-20
C-FLEX GD-30
C-FLEX HD-10
C-FLEX HD-20
C-FLEX HD-30
C-FLEX ID-10
C-FLEX ID-20
C-FLEX ID-30
C-FLEX JD-10
C-FLEX JD-20
C-FLEX JD-30
