德國霍科德股份公司( G.Kromschroder AG ) 是專業從事工業爐窯燃?xì)馊紵{(diào)控制系統研發及制造的世界著名公司。公司成立于1865年。
主營產品：
KROM SCHRODER穩壓閥
KROM SCHRODER過濾器
KROM SCHRODER切斷閥
KROM SCHRODER安全釋放閥及電磁閥
KROM SCHRODER電磁直通閥
KROM SCHRODER電磁蝶閥
KROM SCHRODER電動燃?xì)馇袛嚅y系列
KROM SCHRODER 空氣/燃?xì)獗壤y
KROM SCHRODER電動燃?xì)庹{(diào)節蝶閥
KROM SCHRODER常溫閥
KROM SCHRODER高溫閥
KROM SCHRODER燃?xì)鉄?/p>
KROM SCHRODER高速脈沖燒嘴
KROM SCHRODER帶輻射管空氣預熱式燒嘴
KROM SCHRODER帶調溫風的燃?xì)鉄?/p>
KROM SCHRODER壓力開關DL系列規格參數
Gas types: air or flue gas, no flammable gases, no aggressive gases. |
Enclosure to IEC 60529: IP 54. |
Diaphragm pressure switch, tempered LSR diaphragm system. |
Housing: glass fibre reinforced PBT plastic with low gas release. |
Max. inlet pressure pmax. = withstand pressure: 5 kPa,differential pressure: 5 kPa. |
Permitted ambient temperature in operation: |
Storage and transport temperature:-20 to +40°C (-4 to +104°F). |
Line diameter: 0.5 to 1.8 mm (AWG 24 to AWG 13). |
Line entrance: M16 x 1.5, clamping range:diameters of 4 to 10 mm. |
Electrical connection type: screw terminals. |
KROM SCHRODER壓力開關DL系列介紹及選型
DL壓力開關可用作空氣，煙道氣和其他非腐蝕性氣體的正壓開關，真空傳感器或差壓開關。它們不適用于燃?xì)猓鼈兛杀O(jiān)測極低的壓差。
如果達到設定的開關點，它們會觸發打開，關閉或切換操作?？梢允褂檬州喺{(diào)節此切換點，或者如果需要，可以使用調節螺釘將其固定。
帶有微動開關的膜片壓力開關具有很高的接觸可靠性，因?yàn)槭褂昧说蜌怏w釋放成分。
Pressure switches for air DL can be used as positive pressure switches, vacuum sensors or differential pressure switches for air, flue gas and other nonaggressive gases. They are not suitable for fuel gases.They monitor extremely low pressure differentials.
They trigger switch-on, switch-off or switch-over operations if a set switching point is reached. This switching point can be adjusted using a hand wheel or,if required, it can be fixed using an adjusting screw.
The diaphragm pressure switch with micro switch features particularly high contact reliability as low gas release components are used.
KROM SCHRODER壓力開關DL系列其他常用型號：
KROM SCHRODER DL3.5KT-1
KROM SCHRODER DL3.5KTG-1
KROM SCHRODER DL4.5KT-1
KROM SCHRODER DL4.5KTG-1
KROM SCHRODER DL8KT-1
KROM SCHRODER DL8KTG-1
KROM SCHRODER DL11KT-1
KROM SCHRODER DL11KTG-1
KROM SCHRODER DL16KT-1
KROM SCHRODER DL24KT-1
KROM SCHRODER DL24KTG-1
KROM SCHRODER DL40KT-1
KROM SCHRODER pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KROM SCHRODER壓力開關DL8KT-1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KROM SCHRODER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

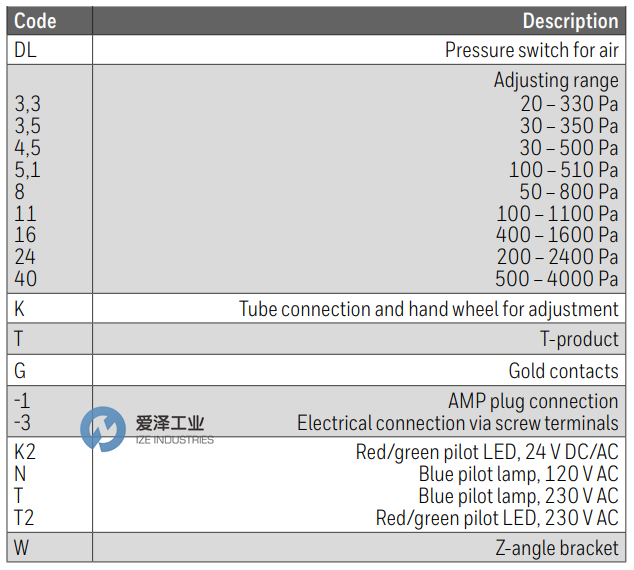

KROM SCHRODER壓力開關DL系列DL8KT-1產品參數
