MACNAUGHT抽油泵R系列操作說明

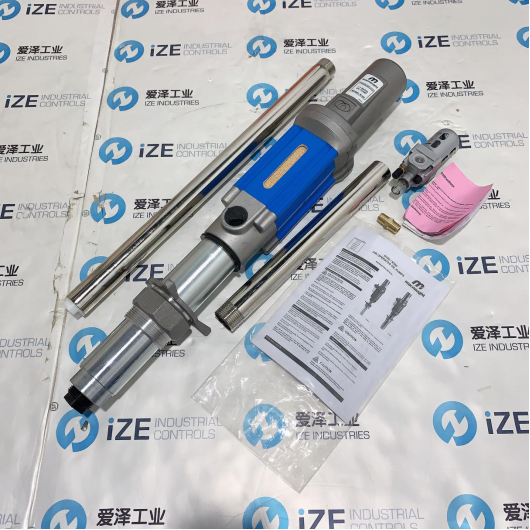

MACNAUGHT抽油泵R100 愛澤工業ize-industries
介紹
Macnaught 1：1和3：1比例油泵設計用于分配潤滑油，發動機油，齒輪油，自動變速箱油和防凍/防沸或兼容產品
Introduction
The Macnaught 1:1 and 3:1 Ratio Oil Pumps are designed to dispense lubricating oil, engine oil, gear oil, automatic transmission fluid and anti-freeze/anti-boil or compatible
重要信息
請勿超過建議的最大進氣口壓力1035 kPa/150 psi/10.3 bar。 泵需要的最小進氣壓力為400 kPa/60 psi/4 bar，建議以690 kPa/100 psi/6.9 bar的壓力運行設備。
如果無法操作，請勿撞擊本機。
在所有螺紋接頭上使用合適的螺紋密封劑（例如特氟龍膠帶），但不要過分?jǐn)Q緊，以免損壞組件。
切勿讓人體任何部位出現在排出口的前面或直接與排出口接觸。
切勿超過系統中安裝的任何組件的額定壓力。
檢查所有軟管是否有磨損，泄漏或配件松動的跡象。定期擰緊所有流體連接，并更換弱的或損壞的軟管。
嘗試對該產品進行任何維護或修理之前，請通過擠壓手柄/噴槍扳機來斷開供氣并釋放油路壓力。
IMPORTANT INFORMATION
Do not exceed the maximum recommended air inlet pressure of 1035 kPa/150psi/10.3bar. The pumps require a minimum air inlet pressure of 400 kPa/60 psi/4 bar and we recommend that you operate the unit at 690 kPa/100 psi/6.9 bar.
Do not hit the unit if it fails to operate.
Use suitable thread sealant ( e.g. Teflon tape ) on all screwed fittings, but do not over tighten to avoid component damage.
Never allow any part of the human body to come in front of, or in direct contact with a material outlet.
Never exceed the pressure rating of any component installed in the system.
Check all hoses for signs of wear, leaks or loose fittings. Tighten all fluid connections regularly and replace weak or damaged hose.
Before attempting any maintenance or repairs of this product, disconnect the air supply and release the oil line pressure by squeezing the hand piece / gun trigger.
部件
測量滾筒/儲罐的深度，并將適當長度的螺紋管連接到泵的入口（R100S和R300S）。Macnaught提供了一系列伸縮式吸管。
從泵上拆下塞子適配器組件，然后將其擰入桶/罐開口中。通過塞子適配器小心放下泵，并牢固地?cái)Q緊環形螺母。
將適當?shù)能浌芎?或分配設備連接到泵的出口。
在連接氣源之前，用戶應添加一個“停止”閥壓縮空氣旋塞。
注意：空氣旋塞必須為1/4圈型（允許快速關閉），并且應位于靠近泵體的位置，并且易于識別。
調節空氣開關閥以調節流量。 關閉出紙口/噴嘴以停止流動。
注意：為保護泵，必須使用在線注油器。還建議在泵的進氣口安裝一個超細（5微米）空氣過濾器，以確保泵的最大效率。
ASSEMBLY
Measure the depth of the drum/tank and attach the appropriate length of threaded pipe to the inlet of the pumps (R100S and R300S). There are a range of telescopic suction tubes available from Macnaught.
Remove the bung adapter assembly from the pump and screw it into the drum/tank opening. Carefully lower the pump through the bung adapter and tighten the ring nut firmly.
Connect the appropriate hose and / or dispensing equipment to your pump outlet.
Before connecting the air supply, the user should add a ‘stop’ valve compressed air cock.
Note: The air cock must be a ? turn type ( allowing quick closure ) and should be located close to the body of the pump and be easily recognized.
Adjust the on/off air valve to regulate the flow. Close the delivery outlet/nozzle to stop flow.
Note: To protect the pump an in-line oiler must be used. It is also recommended that a micro-fine (5 micron) air filter is fitted to the air inlet of the pump to ensure maximum efficiency of the pump.
操作方式
1）確保滾筒或水箱“通風”。
2）部分打開空氣開關閥。泵將自動灌注。
3）打開出紙口/噴嘴。泵將自動啟動。
4）調節開/關空氣閥以調節流量。關閉輸出口/噴嘴以停止流動。
OPERATION
1) Ensure the drum or tank is “vented”.
2) Partially open the on/off air valve. The pump will prime automatically.
3) Open the delivery outlet/nozzle. The pump will automatically start.
4) Adjust on/off air valve to regulate the flow. Close delivery outlet/ nozzle to stop flow.
