WIXROYD是生產機器配件、設計元素、訪問組件以及夾具和夾具零件的供應商。WIXROYD擁有超過18,000種零件的產品系列,為日常設計和工程問題提供獨特和創新的解決方案。
WIXROYD拉手79120 W140-8技術參數
| |

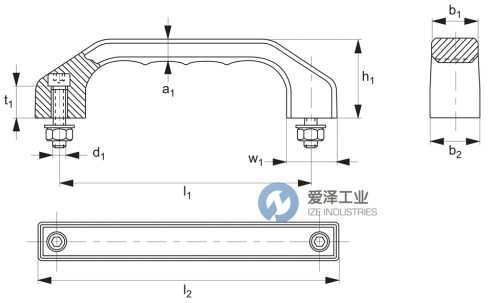

Article properties | |
Order No. | 79120.W0140-8 |
Finish | Black |
l1 | 140 |
l2 | 170 |
a1 | 12.0 |
b1 | 24.0 |
b2 | 27 |
d1 | M 8x30 |
h1 | 45 |
t1 | 16 |
w1 | 28 |
WIXROYD拉手79120 W140-8產品介紹
材質
固體熱塑性 PA 6,玻璃球增強。啞光黑色或橙色,具有美觀的細粒結構。
技術說明
包括六角螺釘 DIN912 和合適的螺母和墊圈。固體塑料。現代工業設計,滿足高要求。極耐扭轉且易于抓握。
最小抗應力 >1000N。
包括黑色鍍鋅圓頭螺釘(無六價鉻),帶六角凹頭 DIN 912 和鍍鋅螺母 DIN 934,帶墊圈 DIN 125。
Material
Solid thermoplastic PA 6, glass ball reinforced. Matt black or orange with attractive, fine grain structure.
Technical Notes
Including hex screws DIN912 with suitable nuts and washer. Solid plastic. Modern industrial design for the highest demands. Extremely resistant to torsion and easy to grip.
Minimum stress resistance >1000N.
Including black galvanised cheese head screws (chromium VI free) with hexagon sockets DIN 912 and galvanised nuts DIN 934 with washers DIN 125.
WIXROYD拉手79120系列其他常用型號:
WIXROYD 79120.W0100-8
WIXROYD 79120.W0120-8
WIXROYD 79120.W0140-8
WIXROYD 79120.W0160-8
WIXROYD 79120.W0180-8
WIXROYD 79120.W0100-0
WIXROYD 79120.W0120-0
WIXROYD 79120.W0140-0
WIXROYD 79120.W0160-0
WIXROYD 79120.W0180-0
