威格士（EATON VICKERS）是伊頓集團流體動力部門旗下的一個全球知名的液壓品牌，其主要產品包括液壓泵、馬達、油缸、液壓閥等。伊頓的流體動力產品應用廣泛，包括土方機械、農業、建筑、航空、采礦、林業、公共設施和物料搬運。
主營業務：
VICKERS液壓泵
VICKERS馬達
VICKERS油缸
VICKERS液壓閥
VICKERS減壓閥XG2V-8CW-10技術參數
Code | XG2V-8CW-10 |
Model | (F3-) X(C)G2V- * * *-1* |
Fluid compatibility | Blank = Anti-wear hydraulic oil (class L-HM), |
Integral check valve (free reverse flow) | Omit if not required |
Mounting surface, ISO 5781 | 8 = Size 08 |
Reduced pressure adjustment control range | C = 5 to 140 bar (44 to 2000 psi) |
Type of manual adjustment | W = Screw/locknut |
Design number | 10 |
VICKERS減壓閥X(C)G2V系列介紹
當液壓系統的某些部分需要在低于一般系統的壓力下運行時，使用減壓閥通常比添加更多泵部分更方便。
這些兩級減壓閥允許從入口到出口端口的全流量，直到達到減壓設置，此時出口流量被關閉。減壓設置可在先導級手動調節。有五個減壓調節范圍可供選擇。
高閥門響應確保降低的出口壓力不受入口壓力峰值的影響。主級中的小止回閥將出口端口連接到先導級，可防止出口端口壓力過度累積（例如由執行器回流引起）。
特點和優點
? 有五個減壓調節范圍可供選擇，與機器要求緊密匹配。
? 主級部件的筒式設計具有出色的重復性和穩定性能。
? 內部先導系統的設計使并聯使用多個閥門時泵流量損失最小。
? 集成止回閥選項可實現自由反向流動。
? 國際安裝表面。
? 高功率/尺寸比（比許多傳統設計高出一倍以上），安裝成本低，空間要求低。
Where sections of an hydraulic system are required to operate at a pressure below that of the general system, it is frequently more convenient to use a pressure reducing valve than to add further pump sections.
These two-stage pressure reducing valves allow full flow from inlet to outlet port until the reduced pressure setting is reached, whereupon the outlet flow is closed off. Reduced pressure setting is manually adjustable at the pilot stage. Five ranges of reduced pressure adjustment are available.
High valve response ensures that the reduced outlet pressure is unaffected by inlet pressure peaks. Excessive build-up of outlet port pressure (e.g. caused by flow back from an actuator) is prevented by the small check in the main-stage which connects the outlet port to the pilot stage.
Features and Benefits
? Close matching to machine requirements with choice of five adjustment ranges of reduced pressure.
? Excellent repeatability and stable performance results from cartridge design of main-stage parts.
? Minimal pump flow losses when using several valves in parallel, results from design of internal pilot system.
? Free reverse flow from integral check valve option.
? International mounting surfaces.
? Low installed cost and space requirement from high power/size ratios (more than double that of many conventional designs).

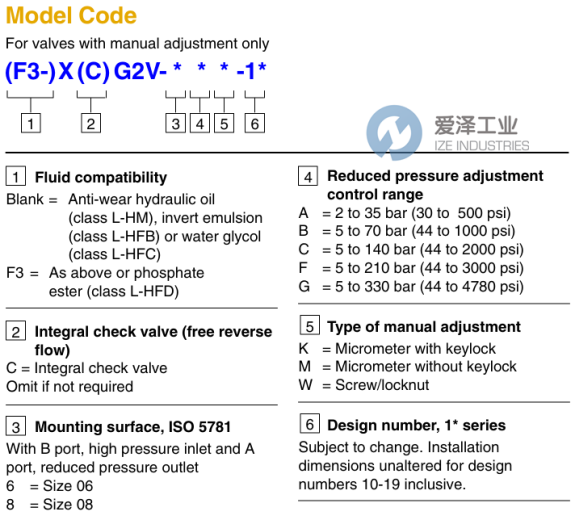

VICKERS減壓閥X(C)G2V系列選型
VICKERS減壓閥X(C)G2V系列其他常用型號：
VICKERS XG2V-6AW-10
VICKERS XG2V-6BK-10
VICKERS XG2V-6CW-10
VICKERS XG2V-6FW-10
VICKERS XG2V-6GW-10
VICKERS XG2V-8CW-10
VICKERS XG2V-8FW-10
VICKERS XG2V-8GW-10
VICKERS F3-XG2V-6CW-10
VICKERS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS減壓閥XG2V-8CW-10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VICKERS減壓閥X(C)G2V系列XG2V-8CW-10技術參數及選型
