HONEYWELL壓力傳感器PX2系列技術參數
PERFORMANCE SPECIFICATIONS | |
Operating temperature range | -40°C to 125°C [-40°F to 257°F] |
Storage temperature range | -40°C to 125°C [-40°F to 257°F] |
Compensated temperature range | -40°C to 125°C [-40°F to 257°F] |
Long term stability | ±0.5 %FSS (1000 hr at 25°C [77°F]) |
Accuracy | ±0.25 %FSS |
Offset error | ±1 %FSS |
Total Error Band | ±2 %FSS (-40°C to 125°C [-40°F to 257°F]) |
Response time | <2 ms |
Turn on time | <7 ms |
Life | minimum of 10 million cycles to operating pressure |
ENVIRONMENTAL AND MECHANICAL CHARACTERISTICS | |
Mechanical shock | 100 G per MIL-STD-202F, Method 213B, Cond. F (at 25°C [77°F]) |
Vibration | 20 G sweep, 10 Hz to 2000 Hz (at 25°C [77°F]) |
Enclosure rating | per electrical connector type selection |
Wetted materials: | port: 304 stainless steel |
External materials: | housing: 304 stainless steel |
Installation torque | per pressure port type |
HONEYWELL壓力傳感器PX2系列介紹
Honeywell PX2 系列重型壓力傳感器是一系列可配置壓力傳感器，采用壓阻傳感技術，并在不銹鋼外殼中配備 ASIC（專用集成電路）信號調節。PX2 系列使用板載 ASIC 進行全面校準和補償，以補償偏移、靈敏度、溫度影響和非線性。這些傳感器可測量絕對壓力、密封壓力表或通風壓力表。絕對壓力表具有內部真空參考和與絕對壓力成比例的輸出值，密封壓力表具有海平面一個大氣壓的內部壓力參考，通風壓力表測量相對于環境壓力的壓力。它們符合 RoHS 標準，并根據 ISO 9001 標準設計和制造。
特點
? 壓力范圍：1 bar 至 70 bar | 100 kPa 至 7 MPa | 15 psi 至 1000 psi
? 壓力參考：絕對壓力、密封壓力表或通風壓力表
? 壓力端口類型：7/16-20 UNF 1/4 英寸 45° 喇叭口母 Schrader (SAE J512)、7/16-20 UNF 45° 喇叭口公接頭 (SAE J513)、7/16-20 UNF 37° 喇叭口公接頭 (SAE J514)、G1/4 (ISO 1179-3)、G1/8 (ISO 1179-3)、M12 x 1.5 (ISO 6149-3)、1/4-18 NPT、1/8-27 NPT、9/16-18 UNF、(SAE J1926-3) 或 7/16-20 UNF (SAE J1926-3)
? 電連接器類型：Metri-Pack 150 （UL 94 HB 或 V-0 選項）、Micro M12、DIN、Deutsch 或電纜線束（1 米、2 米、3 米或 5 米）
? 總誤差帶：±2.0 %FSS
? 工作和補償溫度范圍：-40°C 至 125°C [-40°F 至 257°F]
? 響應時間：＜2 毫秒
? 壽命：工作壓力下至少 1000 萬次循環
? 輸出傳遞函數：比率、調節或電流
? 機械沖擊額定值：100 G，符合 MIL-STD-202F，方法 213B，條件。 F
? 振動等級：20 G 掃描，10 Hz 至 2000 Hz
? 侵入防護：高可達 IP69K
? 輻射抗擾度保護：高可達 100 V/m (ISO 11452-2)
? 阻燃選項：所有電氣終端均符合 UL 94 HB 標準；UL 94 V-0 可根據要求提供
Honeywell PX2 Series Heavy Duty Pressure Transducers are a portfolio of configurable pressure sensors that use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a stainless steel housing. The PX2 Series is fully calibrated and compensated for offset, sensitivity, temperature effects and non-linearity using the on-board ASIC. These transducers measure absolute, sealed gage, or vented gage pressure. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure, sealed gage versions have an internal pressure reference of one atmosphere at sea level, and vented gage versions measure pressure with respect to ambient pressure. They are RoHS compliant and are designed and manufactured according to ISO 9001 standards.
FEATURES
? Pressure range: 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
? Pressure reference: Absolute, sealed gage or vented gage
? Pressure port types: 7/16-20 UNF 1/4 in 45° Flare Female Schrader (SAE J512), 7/16-20 UNF 45° Flare Male (SAE J513), 7/16-20 UNF 37° Flare Male (SAE J514), G1/4 (ISO 1179-3), G1/8 (ISO 1179-3), M12 x 1.5 (ISO 6149-3), 1/4-18 NPT, 1/8-27 NPT, 9/16-18 UNF, (SAE J1926-3), or 7/16-20 UNF (SAE J1926-3)
? Electrical connector types: Metri-Pack 150 (UL 94 HB or V-0 options), Micro M12, DIN, Deutsch, or cable harness (1 m, 2 m, 3 m, or 5 m)
? Total Error Band: ±2.0 %FSS
? Operating and compensated temperature range: -40°C to 125°C [-40°F to 257°F]
? Response time: ＜2 ms
? Life: Minimum of 10 million cycles to operating pressure
? Output transfer function: Ratiometric, regulated or current
? Mechanical shock rating: 100 G per MIL-STD-202F, Method 213B, Cond. F
? Vibration rating: 20 G sweep, 10 Hz to 2000 Hz
? Ingress protection: Up to IP69K
? Radiated immunity protection: Up to 100 V/m (ISO 11452-2)
? Flame retardant options: UL 94 HB standard on all electrical terminations; UL 94 V-0 available upon request

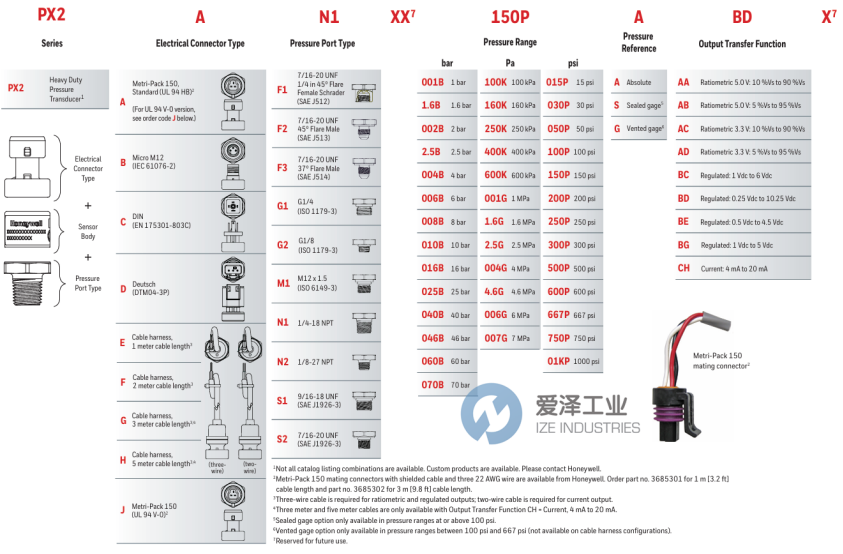

HONEYWELL壓力傳感器PX2系列選型
HONEYWELL壓力傳感器PX2系列其他常用型號：
HONEYWELL PX2AN2XX250PSCHX
HONEYWELL PX2AN2XX300PSCHX
HONEYWELL PX2EN1XX100PSAAX
HONEYWELL PX2EN1XX150PSCHX
HONEYWELL PX2EN1XX200PSCHX
HONEYWELL PX2EN1XX250PSAAX
HONEYWELL PX2EN1XX500PSAAX
HONEYWELL PX2AG1XX010BSCHX
HONEYWELL PX2AG1XX016BSCHX
HONEYWELL PX2AG1XX025BSCHX
HONEYWELL PX2AG2XX010BSAAX
HONEYWELL PX2AG2XX010BSCHX
HONEYWELL PX2AG2XX025BSCHX
HONEYWELL PRESSURE SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
