KISTLER成立于1959年，KISTLER產品有：傳感器，連接器，信號調節器等等
KISTLER壓力傳感器6182B系列技術參數
Technical data | |
Measuring range bar | 0 … 2 000 |
Overload bar | 2 500 |
Sensitivity pC/bar | ≈-2.5 |
Linearity, all ranges % FSO | ≤±1 |
Operating temperature range | Mold (sensor, cable, connector) °C: 0 … 200 |
Insulation resistance | at 20°C TΩ: >10 |
KISTLER壓力傳感器6182B系列介紹
用于測量模腔壓力的微型石英傳感器 6182B 型... 具有 2.5 mm 直徑的前端面。單線電纜的橫截面積較小，安裝靈活。單線技術中的屏蔽由模具提供。因此，電纜和連接器必須集成在模具中。
對于多腔應用，傳感器 6182B 型無需使用單線連接器 1839 型。多腔套件 6829A 型... 和多傳感器系統 6831A 型... 在相應的數據表中進行了描述。
壓力作用于傳感器的整個前端，并傳輸?shù)绞y量元件，產生成比例的電荷（pC = 皮庫侖）。與電荷放大器一起使用時，可將其轉換為 0 ... 10 V 電壓。
? 非常適合工業應用
? 設計無隔膜，正面平坦且可加工
? 也可提供帶涂層的正面，用于玻璃填充塑料
The miniaturized quartz sensor for mold cavity pressure Type 6182B... has a 2,5 mm diameter front face. The small cross sectional area of the single-wire cable allows flexibility of in stallation. Shielding in the single-wire technology is pro vided by the mold. It is therefore essential for the cable and connec tor to be integrated in the mold.
For multi cavity applications the sensor Type 6182B is used without the single-wire connector Typ 1839. The Multi Cavity Set Type 6829A... and the Multi Sensor System Type 6831A... are described in the appropriate data sheets.
The pressure acts over the entire front of the sensor and is transmitted to the quartz measuring element, which produc es a proportional electric charge (pC = Picocoloumb). This is converted into a voltage 0 ... 10 V when used with a charge amplifier.
? Ideally suited for industrial applications
? Designed without a diaphragm and with a flat, machinable
front face
? Also available with coated front for glass filled plastics

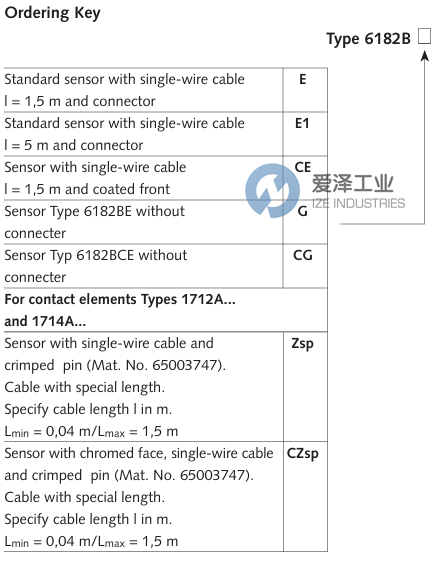

KISTLER壓力傳感器6182B系列選型
KISTLER壓力傳感器其他常用型號：
KISTLER 6182BCE
KISTLER 6182BE
KISTLER 6182B
KISTLER 6182D
KISTLER 6178C
KISTLER 6167AE
KISTLER 6165AA
KISTLER 6184A
KISTLER 6185AAG
KISTLER 6188AAG
KISTLER PRESSURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
