SANDPIPER創立于1965年，擁有廣泛的泵尺寸，類型和型號。SANDPIPER的優勢主要在于保證不中斷的性能，消除了在不同操作條件下選擇不同的技術需求。

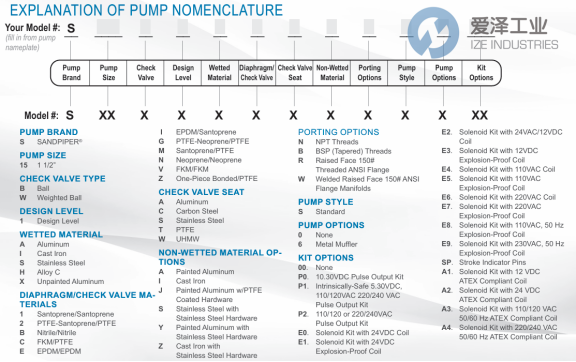

SANDPIPER隔膜泵S15B1INWABS000技術參數
Code | S15B1INWABS000 |
Pump Brand | [S] SANDPIPER? |
Pump Size | [15] 1 1/2” |
Check Valve Type | [B] Ball |
Design Level | [1] Design Level |
Wetted Material | [I] Cast Iron |
Diaphragm/Check Valve Materials | [N] Neoprene/Neoprene |
Check Valve Seat | [W] UHMW |
Non-Wetted Material Options | [A] Painted Aluminum |
Porting Options | [B] BSP (Tapered) Threads |
Pump Style | [S] Standard |
Pump Options | [0] None |
Kit Options | [00.] None |
SANDPIPER隔膜泵S15系列介紹
SANDPIPER 1?" S15 金屬 AODD 泵提供超過 22 英尺（6.7 米）的卓越吸力。這款多功能移動泵專為出色的操作而設計，非常適合 OEM 應用。
它能夠處理磨蝕性流體和懸浮固體，在可靠性至關重要的嚴苛化學應用中表現出色。此外，這款 AODD 泵具有與 SANDPIPER 的 S20 和 S30 泵的空氣側互換性，便于庫存管理并降低庫存成本。
S15 的耐用螺栓結構優于夾箍結構泵，可提供出色的無泄漏性能。結構材料選項包括：鋁、鑄鐵和不銹鋼，彈性體 TPE（熱塑性彈性體）和 PTFE 選項（隔膜和止回閥）。
S15 功能
可維護性：空氣分配系統 (ADS) 是任何 AODD 泵中最常維修的部件之一。SANDPIPER 的 ESADS+ 功能允許訪問完整的 ADS無需停止泵的運行。維修或清潔只需五分鐘。
簡單性：SANDPIPER 的原創 ADS 完全可互換、可維修且可在線維護。其他制造商經常更改 ADS 設計，從而導致互換性、庫存過時和擁有成本增加等問題。
The SANDPIPER 1?" S15 Metallic AODD Pump provides superior suction lift of greater than 22 ft (6.7 m). Designed for outstanding operation, this versatile and mobile pump is perfect for OEM applications.
Equipped to handle abrasive fluids and suspended solids, it gives exceptional performance in harsh chemical applications where reliability is critical. Additionally, this AODD pump offers air-side interchangeability with SANDPIPER’s S20 and S30 pumps for ease of inventory management and reduced inventory costs.
The durable, bolted construction of the S15 is superior to the clamp-band construction pump, providing excellent leak-free performance. Material of construction options include: aluminum, cast iron and stainless steel with elastomer TPE (thermoplastic elastomers) and PTFE options in diaphragms and check valves.
S15 Features
Serviceability: The air distribution system (ADS) is one of the most frequently serviced parts of any AODD pump. Only SANDPIPER's ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in five minutes.
Simplicity: SANDPIPER’S original ADS is fully interchangeable, repairable and inline-serviceable. Other manufacturers frequently change ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.
SANDPIPER隔膜泵S15系列選型
SANDPIPER隔膜泵S15系列其他常用型號：
SANDPIPER S15B1ABWANS000
SANDPIPER S15B1ACTANS000
SANDPIPER S15B1AEWANS000
SANDPIPER S15B1AGTANS000
SANDPIPER S15B1ANWANS000
SANDPIPER S15B1A1WANS000
SANDPIPER S15B1AVWANS000
SANDPIPER S15B1IBWANS000
SANDPIPER S15B1ICTANS000
SANDPIPER S15B1IEWANS000
SANDPIPER S15B1IGTANS000
SANDPIPER S15B1INWANS000
SANDPIPER S15B1I1WANS000
SANDPIPER S15B1IVWANS000
SANDPIPER S15B1SBWANS000
SANDPIPER S15B1SCTANS000
SANDPIPER S15B1SGTANS000
SANDPIPER S15B1SNWANS000
SANDPIPER S15B1S1WANS000
SANDPIPER S15B1SVWANS000
SANDPIPER S15B1A1WABS000
SANDPIPER S15B1A2TABS000
SANDPIPER S15B1INWABS000
SANDPIPER PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SANDPIPER隔膜泵S15B1INWABS000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SANDPIPER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SANDPIPER隔膜泵S15系列S15B1INWABS000技術參數及選型
