E-T-A電路保護模塊ESX10-TD-101-DC24V-X279技術參數
Code | ESX10-TD-101-DC24V-X279 |
Type No. | [ESX10] Electronic Circuit Protector, with current limitation |
Mounting | [TD] Version: rail mounting, with auxiliary contact and slide actuation for 3-step current rating adjustment |
Version | [1] without physical isolation |
Signal input | [0] without signal input |
Signal output | [1] signal make contact |
Operating voltage | [DC 24 V] voltage rating DC 24 V |
Current ratings | [X279] 2/4/6 A adjustable (only ESX10-TD-...-X279) |
E-T-A電路保護模塊ESX10-T系列介紹
ESX10-T系列延伸了DC24V應用領域電子過流保護器的產品線。
其提供了DC24V負載回路的選擇性分?jǐn)啾Ｗo(hù)，寬度僅12.5mm。這是由發生短路和過載故障時的主動限流以及大于1.1倍過載電流時的分?jǐn)鄟?lái)實現。ESX10-T具備唯一脫扣曲線，適用各種負載，如，容性負載達75,000 μF，直流馬達，閥島。集成的失效保護元件參照電流等級和連接電纜的截面積。
ESX10-T可嵌入式標準導軌，確保了多個回路的簡易安裝。
Type ESX10-T. expands our product range of electronic overcurrent protection for DC 24 V applications.
It provides selective protection of all DC 24 V load circuits at a width of only 12.5 mm. This is achieved by active current limitation in the event of a short circuit and overload disconnection from 1.1 times rated current. The ESX10-T features one single trip curve for all types of loads, e.g. capacitive loads up to 75,000 μF, d.c. motors, valve clusters. The integral fail-safe element has been adjusted to the current rating and the connected cable cross section.
The ESX10-T can be snapped onto symmetrical rails, ensuring ease of mounting in multiple circuits.

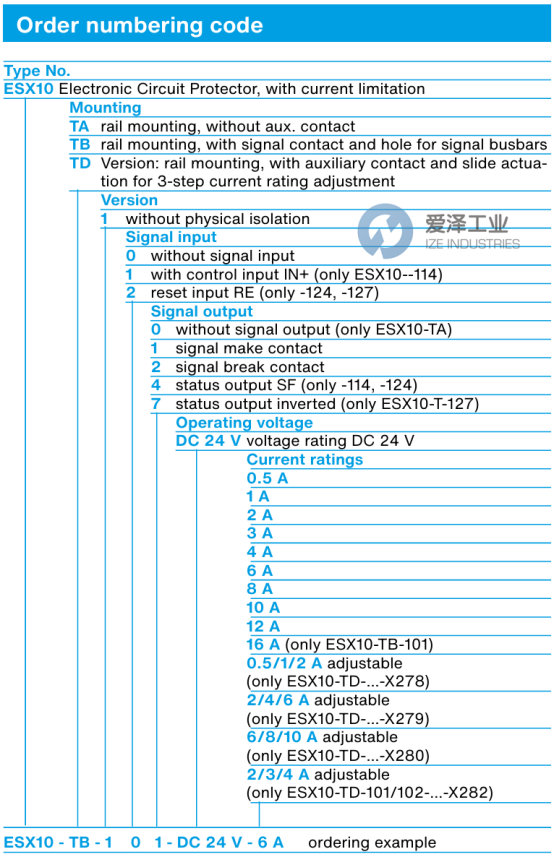

E-T-A電路保護模塊ESX10-T系列選型
E-T-A電路保護模塊ESX10-T系列其他常用型號：
E-T-A ESX10-TD-101-DC24V-X280
E-T-A ESX10-TB-124-DC24V-10A-E
E-T-A ESX10-TD-101-DC24V-X279
E-T-A ESX10-TD-101-DC24V-X278
