DANFOSS壓力變送器060G1541 MBS3000-2011-A1AB08-0技術參數
Product details | |
Gross weight | 0.208 Kilogram |
Net weight | 0.186 Kilogram |
Volume | 0.424 Liter |
EAN | 5702423123964 |
+supply | Pin 1 |
-common | Pin 2 |
Accuracy, max. [±FS%] | 0.01 |
Accuracy, typical [±FS%] | 0.005 |
Adj. zero point and span | No |
Ambient temperature range [°C] [max] | 85 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 185 °F |
Ambient temperature range [°F] [min] | -40 °F |
Approval | ATEX |
Approval comments | ATEX Ex ec IIA T4 Gc |
China RoHS compliance | Yes exceed limitations |
Compensated temp. range [°C] [max] | 80 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 176 °F |
Compensated temp. range [°F] [min] | 32 °F |
EEE category | 5 small equipment (any external dimension 50 cm) |
Electrical conn. Male/Female | Male and Female |
Electrical connection | Angular connector |
Electrical connection size | Pg 9 |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
EU RoHS compliance | Yes with exemptions |
EU RoHS exemption clause | No |
Flush diaphragm | No |
High Clipping Level | 22.4 |
Identical product | 060G4151 |
In scope of WEEE | Yes |
In scope of WEEE and contain batteries | No |
International Article Number | 5702423123964 |
Intrinsically safe | No |
Low Clipping level | 3.6 |
Medium temperature range [°C] [max] | 85 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 185 °F |
Medium temperature range [°F] [min] | -40 °F |
Non-linearity BFSL [±FS%] | 0.005 |
Output signal | Current |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 60 bar |
Overload pressure max. [psi] | 870 psi |
Packing format | Multi pack |
Pressure connection HEX [mm] | 27 mm |
Pressure connection size | 1/2 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [max] | 10 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 145 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 14 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Response time max. [ms] | 4 ms |
SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
SCIP dossier product name | AKS/MBS |
Specification key | MBS 3000-2011-A1AB08-0 |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [min] | 9 V |
Supply voltage [V] DC [min] | 9 V |
Type | MBS 3000 |
UK RoHS compliance | Yes |
DANFOSS壓力變送器060G1541 MBS3000-2011-A1AB08-0產品介紹
壓力變送器，MBS 3000，0.00 bar - 10.00 bar，0.00 psi - 145.00 psi
壓力參考：壓力表（相對），
輸出信號：電流，
電氣連接：角連接器，
壓力連接類型：G，
壓力連接尺寸：1/2，
規格編號：MBS 3000-2011-A1AB08-0
Pressure transmitter, MBS 3000, 0.00 bar - 10.00 bar, 0.00 psi - 145.00 psi
Pressure reference: Gauge (relative),
Output signal: Current,
Electrical connection: Angular connector,
Pressure connection type: G,
Pressure connection size: 1/2,
Specification key: MBS 3000-2011-A1AB08-0

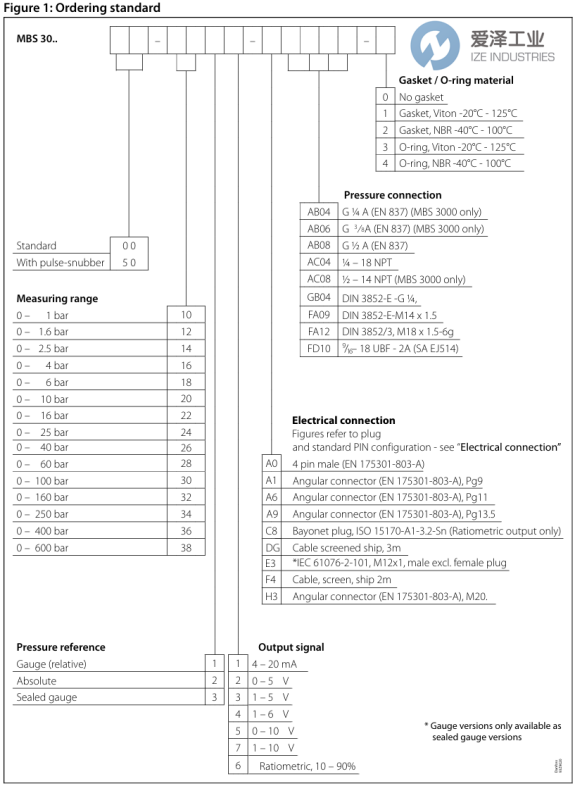

DANFOSS壓力變送器MBS3000系列選型
DANFOSS壓力變送器MBS3000系列其他常用型號：
DANFOSS 060G1470 MBS 3300-1811-A6AB08-0
DANFOSS 060G1471 MBS 3300-2011-A6AB08-0
DANFOSS 060G1472 MBS 3300-2211-A6AB08-0
DANFOSS 060G1473 MBS 3300-2411-A6AB08-0
DANFOSS 060G1474 MBS 3350-1811-A6FB04-4
DANFOSS 060G1475 MBS 3350-2011-A6FB04-4
DANFOSS 060G1476 MBS 3350-1811-A6AB08-0
DANFOSS 060G1477 MBS 3350-2011-A6AB08-0
DANFOSS 060G1539 MBS 3000-1611-A1AB08-0
DANFOSS 060G1540 MBS 3000-1811-A1AB08-0
DANFOSS 060G1541 MBS 3000-2011-A1AB08-0
DANFOSS 060G1542 MBS 3000-2431-A1AB08-0
DANFOSS 060G1563 MBS 3000-1011-A1AC04-0
DANFOSS 060G1572 MBS 3000-1221-A1AB04-0
