OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績?cè)谄嚭凸こ虣C(jī)械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
Technical data | |
Design | Seat valve with damping |
Line connections | for pipeline installation and block installation |
Installation position | Optional |
Ambient temperature | –30...+80 °C |
Pressure medium | Hydraulic oils based on mineral oil acc. to DIN/ISO, |
Viscosity | 10...800 mm2/s permissible range |
Pressure medium temperature | –30 °C...+80 °C with NBR sealings, NBR = Perbunan? |
Filtration | Oil contamination Class 19/16 in accordance with ISO/DIS 4406, |
Direction of flow rate | shown by symbol or marking |
Operating pressure For line installation | P: max. permissible 350 bar, depending on number of load changes and temperature. Counter values on request. |
For block installation | P: In accordance with set pressure. |
MTTFd: | max. 150 years, PRV with set value > 210 bar: B10 value on request |
Cracking pressure (tolerance pnom +5 %) Set at flow 0.1 l/min | |
Leakage oil flow | Max. 1 cm3/min |
Flow | Max. 120 l/min, depending on set pressure and line ?, see chapter “Characteristics” |

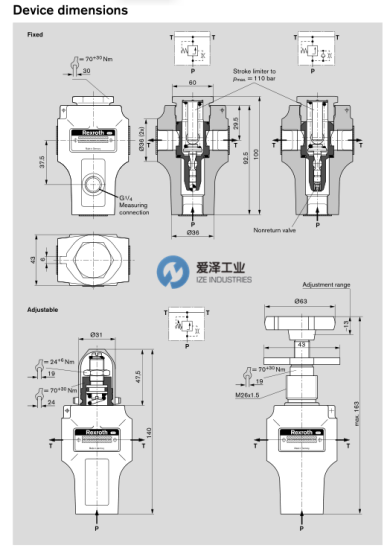

REXROTH閥0532系列尺寸圖

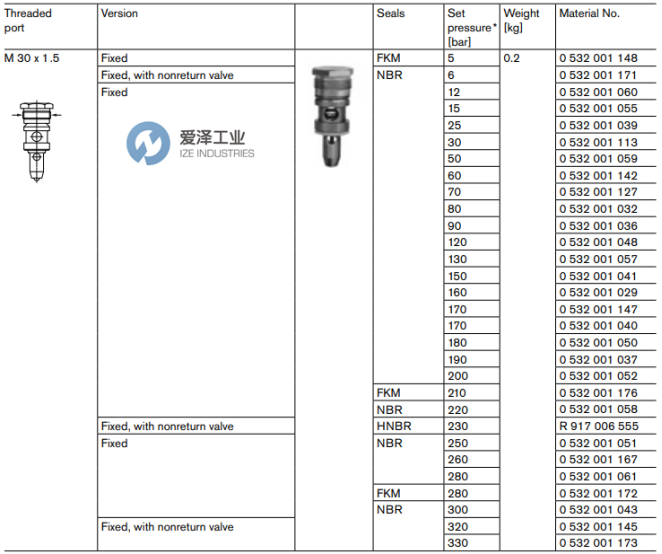

REXROTH閥0532001系列選型
REXROTH閥0 532….系列其他常用型號：
REXROTH 0532002068
REXROTH 0532001060
REXROTH 0532001055
REXROTH 0532001039
REXROTH 0532001113
REXROTH 0532001059
REXROTH 0532001142
REXROTH 0532001127
REXROTH 0532001058
REXROTH 0532001036
REXROTH 0532001048
REXROTH 0532001057
REXROTH 0532001041
REXROTH 0532001029
REXROTH 0532001147
REXROTH 0532001040
REXROTH 0532001050
REXROTH 0532001037
REXROTH 0532001052
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥0532001036的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH閥0532001036技術數據及選型
