Technical Data | ||
Measured values | ||
Relative Humidity | ||
Working range | 0...95 % RH | |
Accuracy1) at 20 °C (68 °F) and U =24 V DC | ||
Analogue (0-10 V, 4-20 mA) | ±2 % RH (40...60 % RH) | ±3 % RH (10...90 % RH) |
Digital (RS485) | ±3 % RH (30...70 % RH) | ±5 % RH (10...90 % RH) |
Temperature dependence | typical 0.06 % RH /°C (0.03 % RH / °F) | |
Temperature | ||
Accuracy1) at 20 °C (68 °F) and U =24 V DC | output A3: ±0.25 °C (±0.45 °F) | |
Output | ||
Analogue | 0-10 V | ﹣1 mA < IL < 1 mA |
(RH: 0...100 % RH / T: see ordering guide) | 4-20 mA (two wires) | RL < (UV-10)/0.02 < 500 Ohm |
Digital Interface | RS485 with max. 32 devices on one bus | |
Protocol | Modbus RTU or BACnet MS/TP | |
Temperature passive | please see ordering guide | |
General | ||
Voltage supply (UV) | ||
0 - 10 V | 15 - 40 V DC or 24 V AC ±20% | |
4 - 20 mA | 10 + 0.02 x RL < UV < 28 V DC(RL < 500 Ohm) | |
RS485 | 15 - 35 V DC or 24 V AC ±20% | |
Current consumption | ||
Analogue (0-10 V, 4-20 mA) | for DC supply: typ. 4 mA / for AC supply: typ. 15 mAeff | |
Digital (RS485) | for DC supply: typ. 9 mA / for AC supply: typ. 20 mAeff | |
Electrical connection | screw terminals max. 1.5 mm (AWG 16) | |
Housing (polycarbonate) | US Version: UL94V-0 approved / EU Version: UL94HB approved Protection class | |
Display | for EE10-M1 | Humidity / Temperature alternating |
for EE10-M6 | Humidity | |
CE compatibility according | EN61326-1 | |
EN61326-2-3 | ||
Temperature working range | ﹣5...55 °C (23...131 °F) | |
Temperature storage range | ﹣25...60 °C (-13...140 °F) | |
E+E溫濕度傳感器EE10系列產品介紹
EE10專門用于住宅和商用HVAC中的準確相對濕度（RH）和溫度（T）測量。
RH和T測量數據可通過兩個模擬輸出或BACnet或Modbus RTU接口獲得。也提供帶有模擬RH和無源T輸出的版本?？梢栽诳蛇x顯示器上本地讀取與有效輸出相對應的測量數據。
Modbus RTU和BACnet MS / TP接口上還提供其他物理量：絕對濕度，混合比，焓，霜點溫度和水蒸氣分壓。
時尚的外殼根據地區標準提供多種顏色和兩種尺寸。
僅包含螺絲端子的后蓋可以首先安裝并接線。調試之前，可以將包含電子設備的前蓋簡單地卡入后蓋。因此，該設備的有源部件不會受到施工現場的污染，可以在幾秒鐘內無需工具即可更換。
EE10 is dedicated for accurate relative humidity (RH) and temperature (T) measurement in residential and commercial HVAC.
The RH and T measured data is available either on two analogue outputs,or on a BACnet or Modbus RTU interface. A version with analogue RH and passive T output is also available. The measured data corresponding to the active outputs can be read locally on the optional display.
Additional physical quantities are available on the Modbus RTU and BACnet MS/TP interface: absolute humidity, mixing ratio, enthalpy, frost point temperature and water vapor partial pressure.
The stylish enclosure is available in several colors and in two sizes according to regional standards.
The back cover, which contains only the screw terminals, can be mounted and wired first. The front cover containing the electronics can be simply snapped onto the back cover right before commissioning. Thus the active part of the device is not exposed to construction site pollution and can be replaced without tools within seconds.

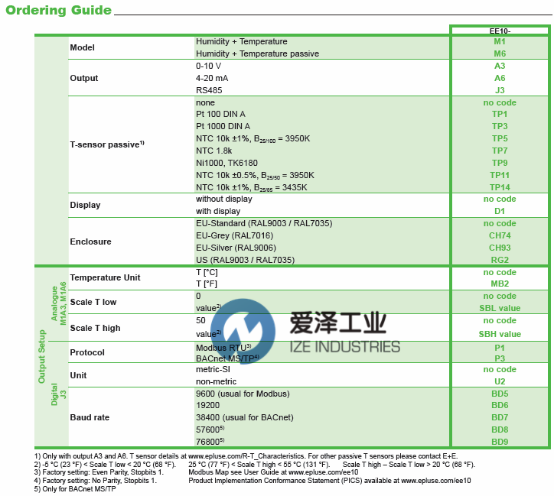

E+E溫濕度傳感器EE10系列選型
E+E溫濕度傳感器EE10系列其他常見型號：
E+E EE10-M1A6D1
E+E EE10-M1A3D1
E+E EE10-M1J3P3BD7
E+E EE10-M1J3P1BD5
E+E EE10-M1A6SBL-5SBH55
E+E EE10-M6A3
E+E EE10-M6A6
E+E EE10-M1A6
E+E EE10-M1A3
E+E EE10-M1J3
