GO REGULATOR是面向分析，儀器儀表，石油化工，石油和天然氣以及特種氣體行業的標準化和特種壓力調節器，隔膜閥和過濾器的全球優秀設計商和制造商。GO調節器和閥門旨在滿足廣泛的應用，在控制壓力的同時適應多種氣體和液體的中低流速。
GO產品有：隔膜閥，篩選閥，調節閥等。
GO調節閥PR1-1F11Q3D111技術參數
Order Code | PR1-1F11Q3D111 |
Series | PR-1 Series |
BODY MATERIAL | 1 316L stainless steel |
PORT CONFIGURATION | F |
PROCESS PORT TYPES (GAUGE PORT TYPES, IF SPECIFIED) | 1 ?? FNPT (?? FNPT gauge ports), standard |
SURFACE FINISH OF DIAPHRAGM CAVITY | 1 < 25 Ra, standard |
SEAT MATERIAL | Q PEEK? Low Temp Service, Plastic Knob |
FLOW COEFFICIENT (Cv) | 3 0.06, standard |
OUTLET RANGE | D 0–25 psig |
DIAPHRAGM TYPE | 1 Standard diaphragm |
DIAPHRAGM FACING/BACKING MATERIAL | 1 Tefl on?/stainless steel |
CAP ASSEMBLY | 1 Standard, stainless steel |
GO調節閥PR-1系列介紹
PR-1系列是一種多功能減壓調節器，旨在滿足儀器采樣系統和其他應用（如半導體處理氣體）的廣泛需求。 PR-1的許多特性使其非常適合在氣體或液體服務中以低到中等流量控制壓力的各種應用。 316L閥體材料用于方便焊接連接。 不銹鋼帽和調節螺釘可防止大氣腐蝕并保持外觀。 增強的主體內部表面光潔度優于25 Ra 加上電解拋光，可更輕松地清潔并可能減少流動中的顆粒污染。
? 氣體或液體服務
? 316L 不銹鋼、Inconel?、Teflon? 和 Tefzel?（或可選的主閥座材料選擇）僅在流動流中
? 電拋光316L主體，具有優于25 Ra的隔膜腔表面光潔度
? 不銹鋼帽，帶SS調節螺絲
? 入口壓力高達6000 psi
? 可調節的出口壓力范圍為0–10、0–25、0–50、0–100、0–250、0–500 和 0–750 psig
? 工作溫度為-40° F至+500° F（-40° C 至 +260° C）
? 20微米過濾器
? 大多數情況下的氣密關閉
? Cv 流量系數0.025、0.06、0.20 和 0.50（0.06 標準）
The PR-1 Series is a versatile pressure reducing regulator designed to fulfi ll a wide range of needs in instrumentation sample systems and other applications such as semiconductor processing gases. Many features of the PR-1 make it ideal for a wide range of applications controlling pressures at low to moderate fl ows in gas or liquid service. 316L body material is used to facilitate welded connections. Stainless steel caps and adjusting screws prevent atmospheric corrosion and maintain appearance. Enhanced internal body surface fi nish of better than 25 Ra plus electropolishing allows easier cleaning and potentially less particle contamination in the fl ow stream.
? Gas or liquid service
? 316L stainless steel, Inconel?, Tefl on?, and Tefzel? (or optional main seat material choice) only in fl ow stream
? Electropolished 316L body with better than 25 Ra diaphragm cavity surface fi nish
? Stainless steel cap with SS adjusting screw
? Inlet pressures of up to 6000 psi
? Adjustable outlet pressure ranges of 0–10, 0–25, 0–50, 0–100, 0–250, 0–500 and 0–750 psig
? Operating temperatures of ?40° F up to +500° F (?40° C up to +260° C)
? 20 micron fi lters
? Bubble-tight shutoff under most conditions
? Cv fl ow coeffi cients 0.025, 0.06, 0.20, and 0.50 (0.06 standard)

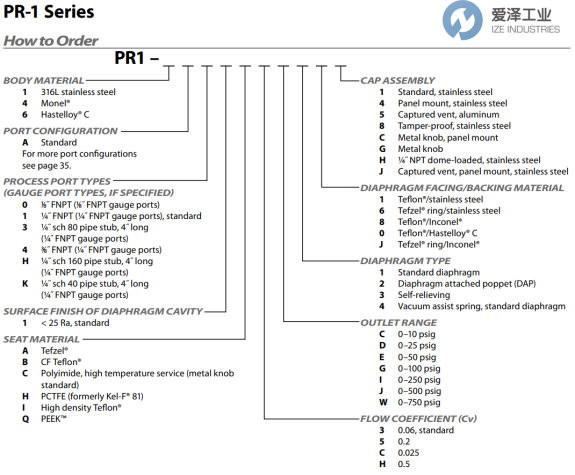

GO調節閥PR-1系列選型
GO調節閥PR-1系列其他常用型號：
GO PR1-1A41A5I311
GO PR1-1A41A5J111
GO PR1-1A41AHG314
GO PR1-1A41AHI314
GO PR1-1A41AHW1111
GO PR1-1A41AHW1111A
GO PR1-1A41AHW114
GO PR1-1A41H3W111
GO PR1-1B11A3C111
GO PR1-1B11A3D111
GO PR1-1B11A3D114
GO PR1-1B11A3E111
GO PR1-1B11A3I111
GO PR1-1B11A3I114
GO PR1-1B11A5E111
GO PR1-1B11B3D111
GO PR1-1B11B3E111
GO PR1-1B11B5D1A1
GO PR1-1F11Q3D111
GO Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GO調節閥PR1-1F11Q3D111的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GO調節閥PR-1系列PR1-1F11Q3D111技術參數及選型
