SUN公司于1970年成立于美國，是高性能液壓螺紋插裝閥塊以及集成閥塊的設計和制造公司，產品集成在流體動力系統中，用以實現力，速度和運動的控制。產品廣泛應用于移動，工業機械和設備等領域。
Technical Data | |
Cavity | T-11A |
Series | 1 |
Capacity | 10 gpm |
Maximum Operating Pressure | 5000 psi |
Factory Pressure Settings Established at | blocked control port (dead headed) |
Control Pilot Flow | 7 - 10 in3/min. |
Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
Valve Hex Size | 7/8 in. |
Valve Installation Torque | 30 - 35 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight | 0.33 lb. |
Seal kit - Cartridge | Buna: 990011007 |
Seal kit - Cartridge | EPDM: 990011014 |
Seal kit - Cartridge | Polyurethane: 990011002 |
Seal kit - Cartridge | Viton: 990011006 |
SUN閥DTDF-MCN224產品介紹
這款電磁操作的 2 通 2 位閥芯是一種直動式、閥瓣式方向閥。該閥有常開或常閉兩種配置，設計用于 740 和 747 系列線圈。
由于采用閥瓣式結構，該閥的泄漏極低。
? 電磁管組件的疲勞額定值為 5000 psi (350 bar)。
? 該閥是直接驅動的，無需低液壓即可運行。
? 使用常閉選項時，該閥適用于負載保持應用。如果發生電源故障，閥門將彈簧關閉。
? 配置有 EPDM 密封件的閥芯用于磷酸酯流體系統。接觸石油基流體、油脂和潤滑劑會損壞密封件。
? 該閥的所有配置都包括鋅鎳鍍層，作為 1000 小時鹽霧防護的標準配置。
? 線圈連接器選項提供高達 IP69K 的防護等級。
? 該閥芯同時使用 740 系列高功率線圈和 747 系列危險位置線圈。
? 該閥芯具有手動超控選項。
? 閥門的泄漏率極低；小于 10 滴/分鐘 @ 5000 psi（0.7 cc/分鐘 @ 350 bar）。
? 在配備 D 或 L 控制的型號上，手動超控中的制動機構用于臨時啟動。D、L 和 T 手動控制組件的機械壽命約為 7,000 次循環。
? 該閥采用濕式電樞設計。這意味著工作流體圍繞電樞并暴露在線圈產生的熱量中。如果線圈長時間通電，這可能是一個因素。某些流體，特別是水/乙二醇混合物，在這些溫度下會隨著時間的推移而分解，并形成會影響濾芯功能的清漆。
? 提供各種線圈端接和電壓選項，帶或不帶浪涌保護。
? 螺線管獨特的磁性設計可實現高效螺線管，每瓦特消耗產生高閥芯驅動力，從而實現可靠的閥門換向。
? 線圈可以以任意方向安裝在管上。
? 采用 Sun 浮動式結構，更大限度地減少由于安裝扭矩過大和/或腔體/濾芯加工變化而導致內部零件卡住的可能性。

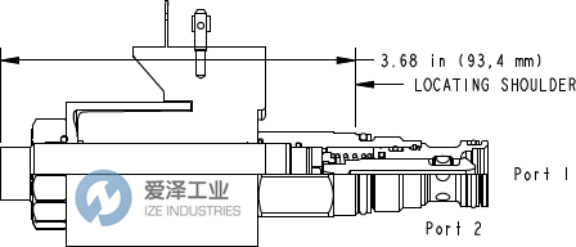

This solenoid-operated 2-way, 2-position cartridge is a direct-acting, poppet-style directional valve. The valve is available in either a normally open or normally closed configuration and is designed to be used with 740 and 747 Series coils.
Due to the poppet style construction, this valve has extremely low leakage.
? The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
? This valve is direct actuated and requires no minimum hydraulic pressure for operation.
? This valve is suitable for load holding applications when using the Normally Closed option. In the event of power failure, the valve will spring closed.
? Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
? All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
? Coil connector options offer ratings up to IP69K.
? This cartridge utilizes both 740 Series high-power and 747 Series hazardous location coils.
? This cartridge has an option for manual override.
? Valves exhibit extremely low leakage rates; less than 10 drops/min. @ 5000 psi (0,7 cc/min @ 350 bar).
? On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.
? This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
? A wide variety of coil termination and voltage options are available, with and without surge protection.
? The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
? Coils can be mounted on the tube in either direction.
? Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
SUN閥DTDF系列其他常用型號：
SUN DTDF-MCN224
SUN DTDFMCN211
SUN DTDFMCN212
SUN DTDFMCN212D
SUN DTDFMCN214
SUN DTDFMCN214D
SUN DTDFMCN223
SUN DTDFMCN224
SUN DTDFMCN224D
SUN DTDFMCN228
SUN DTDFMCN228D
SUN DTDFMCN612
SUN DTDFMCN612D
SUN DTDFMCN614
SUN DTDFMCN614D
SUN VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUN閥DTDF-MCN224的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SUN閥DTDF-MCN224技術參數介紹
