HEGWEIN是燃燒控制技術廠商，于1948年在德國成立，1996年，HEGWEIN成為DURAG集團的成員。
HEGWEIN的產品適用于多種不同的工業自動化環境，HEGWEIN部門不斷研究新產品及改良現有產品以符合市場上的需要，HEGWEIN的宗旨是為客戶提供高品質的產品。
Technical Data | |
Burner Portion | |
Heat release | max. 120 kW (410,000 BTU/hr) |
Flame length | max. 600 mm (approx. 23.5“) |
Tube length | lengths available from 240 –15,000 mm, in 10 mm increments |
Gas connection | 1/2", from left or right |
Air connection | 1“, may be rotated in increments of 90° |
Air flow | max. 50 m3/h |
Air ratio | 0.3 – 0.5; remainder must be available from combustion chamber itself |
Maximum ambient temperature | ignitor tube: 500°C (932°F); if temperature is higher, combustion air must be left on to serve as cooling air, and a stainless steel outer tube must be used. At temperatures > 700°C (1292°F), additional cooling air must be supplied in the gap between the guide tube and ignitor tube. In case of divisible or tilting tubes the temperature at the division or moving part must not exceed 180°C (356°F). |
Maximum back pressure | 200 mbarg inside the ignitor housing |
Transformer and Flame Monitor | |
Enclosure rating | IP 65 (NEMA 4x) |
Connection type | permanently sealed in control cable (IP 65 version) |
Power consumption | ignition transformer: 100 VA |
Duty cycle | ignition transformer: usually limited to 2 – 3 s by the burner control 15% duty cycle (cycle time 3 min. = 100 %) |
Ambient temperature | -20°C to +40°C (-4°F to +104°F), where EC approval is required |
Explosion proof ratings | II 3 G EEx nC IIC T5 zone 2 div. II |
HEGWEIN燃氣點火器ZXDA0系列介紹
最大釋放熱量：120 kW (410,000 BTU/小時)，緊湊型設計，帶點火變壓器和電離火焰監測器，采用經 EC 測試和批準的防火外殼 II 3 G EEx nC IIC T5、PTB 和 ATEX 認證，適用于 II 區應用
Maximum heat release: 120 kW (410,000 BTU/hr), Compact design with ignition transformer and ionisation flame monitor in EC-tested and approved design flame proof housing II 3 G EEx nC IIC T5, PTB- and ATEX approved suitable for applications in Zone II

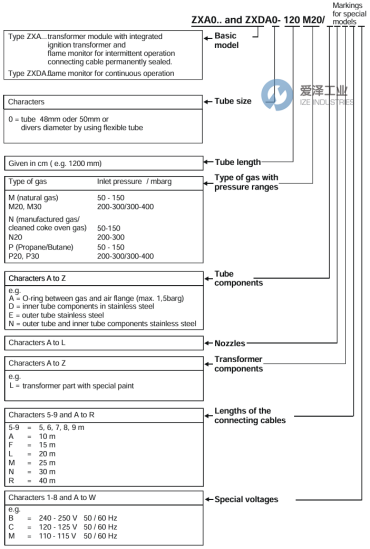

HEGWEIN燃氣點火器ZXDA0系列選型
HEGWEIN燃氣點火器ZXDA0系列其他常用型號：
HEGWEIN ZXDA/0-73S/HEG09353
HEGWEIN ZXDA/045M20 00KA0
HEGWEIN ZXDA/0-50M/00KA0
HEGWEIN ZXDA/0-60 M/NOKAO
HEGWEIN ZXDA/0-30M/00K50
HEGWEIN ZXDA/0-347 M/00K50
HEGWEIN GAS FIRED IGNITER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HEGWEIN燃氣點火器ZXDA/0-73S/HEG09353的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HEGWEIN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HEGWEIN燃氣點火器ZXDA0系列ZXDA/0-73S/HEG09353技術參數及選型
