ROSSEL是一家專業從事電阻式溫度計（如電阻溫度計和熱電偶）測量技術的集團，成立了多家子公司。高品質溫度傳感器和氣象儀器的生產為公司今天作為高端精密儀器知名制造商的成功奠定了基礎。
ROSSEL主營產品應用：
熱電偶
電阻溫度計
變送器
連接頭
連接電纜
連接器
飾品
校準系統/設備
打印機
指標
BUS-模塊

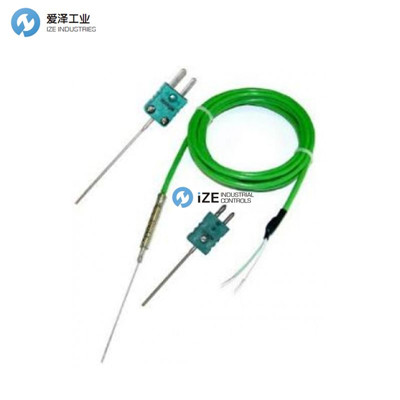

ROSSEL熱電偶TYPE K SN:520193簡介
多年前，礦物絕緣金屬護套（MIMS）熱電偶成功引入溫度測量技術。
標準版本主要用于-270°C至+ 1200°C的范圍。它們在極寬的溫度范圍內結合了高靈活性和易于操作的優點。它們由高溫MIMS熱電偶補充，工作溫度為2000°C及以上。
Inconel 600主要用作護套材料，鎳基合金。這種材料可以很容易地焊接和焊接，它在較高溫度下也具有極好的電阻率特性，并且能夠抵抗大多數環境條件。
熱電偶通常是K型（NiCr-Ni）符合IEC 60 584-1。廣泛使用的還有L型。J（均為Fe-CuNi）和在較高溫度范圍內的貴金屬類型SR和B，它們是鉑/銠合金。熱電偶線嵌入高純度MgO的緊密絕緣中，并由鎳/鉻/鐵合金或不銹鋼的金屬護套包圍。緊湊的絕緣材料可牢固地固定電線，因此不會因強烈的振動或高彎曲負荷而造成損壞。導線之間或?qū)Ь€與護套之間的短路實際上也是不可能的。
Mineral-Insulated Metal-Sheathed (MIMS) thermocouples were successfully introduced many years ago into temperature measurement technology.
The standard versions are mainly used in the range between -270 °C and +1200 °C. They combine the advantages of high flexibility and easy handling in an extremely wide temperature range. They are supplemented by high-temperature MIMS thermocouples for operating temperatures of 2000 °C and above.
Inconel 600 is mainly used as sheath material, a nickel-based alloy. This material can easily be welded and soldered, it possesses extremely good resistivity characteristics also at higher temperatures and is resistant against most ambient conditions.
The thermocouple is often the type K (NiCr-Ni) acc. to IEC 60 584-1. Widely in use are also types L resp. J (both Fe-CuNi) and in the higher temperature range the noble metal types S R and B, which are platinum/rhodium alloys. The thermocouple wires are embedded in a compact insulation of high-purity MgO and enclosed by a metal sheath of a nickel/chromium/iron alloy or of stainless steel. The compact insulation fixes the wires securely so that no damage can occur because of strong vibrations or high bending loads. Also short circuits between the wires or between wire and sheath are virtually impossible.
ROSSEL熱電偶TYPE K SN:520193特征及優點
機械抗性
易彎曲
適用于幾乎所有應用的眾多不同設計
響應時間短
高度抗振動
寬溫度范圍從-270°C到+ 2000°C以上
Mechanically resistant
Easily bendable
Numerous different designs for nearly all applications
Short response times
Highly resistant against vibrations
Wide temperature range from -270 °C to over +2000 °C
ROSSEL熱電偶TYPE K SN:520193
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件ROSSEL熱電偶系列列表：
ROSSEL熱電偶TYPE K SN:520193
ROSSEL熱電偶TYPE A
ROSSEL熱電偶Type AL
ROSSEL熱電偶Type AL-RT
ROSSEL熱電偶Type ALS
ROSSEL熱電偶Type ALSTE
ROSSEL熱電偶Type B
ROSSEL熱電偶Type S
ROSSEL熱電偶Type STE
ROSSEL熱電偶Type WMM
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSSEL熱電偶TYPE K SN:520193的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關ROSSEL熱電偶TYPE K SN:520193更詳細的信息或者購買ROSSEL相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
ROSSEL熱電偶TYPE K SN:520193簡介及優點
