Specifications | |
Performance data | |
Accuracy RSS (at constant temp) | ±1.0% FS (standard); |
Non-linearity, BFSL | ±0.96% FS (standard); |
Hysteresis | 0.10% FS |
Environmental data | |
Operating temperature oF (oC) | 0 to +175 (-18 to +79) |
Storage temperature oF (oC) | -65 to +250 (-54 to +121) |
Electrical data (voltage) | |
Circuit | 3-Wire (Com, Out, Exc) |
Excitation/output | 9 to 30 VDC / 0 to 5 VDC |
Output impedance | 100 ohms |
Bidirectional output at zero pressure | 2.5 VDC |
Electrical data (current) | |
Circuit | 2-wire |
Output | 4 to 20 mA |
External load | 0 to 800 ohms |
Min. loop supply voltage (VDC) | 9 + 0.02 x (resistance of receiver plus line) |
Max. loop supply voltage (VDC) | 30 + 0.004 x (resistance of receiver plus line) |
Bidirectional output at zero pressure | 12 mA |
Pressure media | Clean air or similar non-conducting gases. |
SETRA差壓傳感器264系列介紹
264 極低差壓傳感器采用無端不銹鋼焊接電容式傳感元件，只需極小的放大倍數，即可在關鍵安裝中提供出色的精度和長期穩定性。264 采用堅固的設計，提供黃銅倒鉤配件和可選導管蓋，安裝簡單且一致。
? 極低差壓的行業標準
? ±0.25%、±0.4%、±1% FS 精度
? 3 年無條件保修
? 高達 10 PSI 的過壓（取決于范圍）
? 最小化安裝時間，使用安裝選項
? 反向接線保護
? 內部調節允許與未調節的直流電源一起使用
? 阻燃外殼（經 UL 94 V-0 認證）
? 符合 CE 和 RoHS 標準
The 264 very low differential pressure transducer uses a dead-ended stainless steel welded capacitive sensing element that requires minimal amplification and delivers excellent accuracy and longterm stability in critical installations. The 264 utilizes a robust design that offers brass barbed fittings, and an optional conduit cover for easy and consistent installation.
? Industry standard for very low differential pressure
? ±0.25%, ±0.4%, ±1% FS accuracy
? 3 year unconditional warranty
? Up to 10 PSI overpressure (range dependent)
? Installation time minimized w/ mounting options
? Reverse wiring protection
? Internal regulation permits use with unregulated DC power supplies
? Fire retardant case (UL 94 V-0 approved)
? CE & RoHS compliant

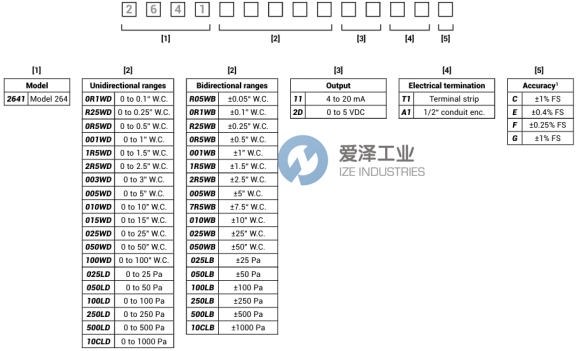

SETRA差壓傳感器264系列選型
SETRA差壓傳感器264系列其他常用型號：
SETRA 26410R5WB11T1F
SETRA 2641R25WB2DT1C
SETRA 2641005WB2DT1C
SETRA 2641003WD11T1C
SETRA 2641010WD2DT1C
SETRA 2641001WD2DT1C
SETRA 26410R1WB11T1C
SETRA 2641005WD2DT1G
SETRA 26410R1WB2DT1C
SETRA 2641005WD11T1E
SETRA 2641R25WB11T1G
SETRA 2641010WD11T1F
SETRA 26412R5WB2DT1G
SETRA 2641001WB11T1C
SETRA 2641001WD11T1E
SETRA DIFFERENTIAL PRESSURE TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SETRA差壓傳感器2641001WD2DT1C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SETRA差壓傳感器264系列2641001WD2DT1C技術參數及選型
