霍尼韋爾（HONEYWELL）為全球客戶提供相關行業解決方案，涵蓋航空和汽車產品及服務，樓宇、住宅和工業控制技術，以及特性材料。從飛機、汽車、住宅、樓宇、制造工廠、供應鏈到人員，HONEYWELL的技術致力于萬物互聯，創造一個更智能、更安全和更可持續發展的世界。
HONEYWELL的主要產品有：傳感器，繼電器，電機，行程開關，限位開關，壓力開關，溫控儀，點火控制器，變壓器，模塊，放大器，閥，火焰探測器，執行器等。
HONEYWELL執行器72系列技術參數
Lifetime | 60,000 Full Stroke Cycles |
Repositions: | 1.5 Million |
Controller: | These motors can be used with any electronic controller that provides a stable noise-free proportional current output as specified in Electrical Ratings, Input Range below. |
Electrical Ratings: | |
Input Range: | Current, Nonadjustable: 4 to 20 mA nominal, 25 mA maximum. |
Input Impedance: | 4 to 20 mA Input: 100 ohms. |
Stroke: | Most models available with field adjustable strokes from 90° to 160°. Stroke adjusted by means of potentiometers located in the wiring compartment. |
Timing: | Nominal 30 seconds for 90° stroke and 60 seconds for 160° stroke. |
Dead Weight Load On Shaft: | 200 lb (91 kg) on motor power or auxiliary end; maximum combined load of 300 lb (136 kg). |
Ambient Temperature Ratings: | -40 to 150°F (-40 to 66°C). |
Shaft: | 3/8 in. (9.5 mm) square. |
Motor Rotation: | |
Closed: | Counterclockwise rotation limit as viewed from motor power end. |
Mechanically Normally Closed: | Spring return. Normally closed motors rotate to closed position on power loss. |
Electrically Normally Closed: | Both spring return and non- spring motors return to closed position on minimum signal. |
HONEYWELL執行器72系列介紹
72 系列 Modutrol IV 電機為彈簧復位和非彈簧復位電機，用于控制風門和閥門。電機接受來自電子控制器的電流或電壓信號，將風門或閥門定位在打開和關閉之間的任意位置。
The Series 72 Modutrol IV Motors are spring return and non-spring return motors used to control dampers and valves. The motors accept a current or voltage signal from an electronic controller to position a damper or valve at any point between open and closed.

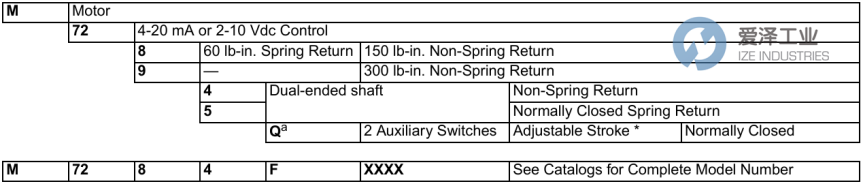

HONEYWELL執行器72系列選型
HONEYWELL執行器72系列其他常用型號：
HONEYWELL M7284A1012
HONEYWELL M7284A1004
HONEYWELL M7284C1000
HONEYWELL M7284C1083
HONEYWELL M7284C1091
HONEYWELL M7284C1000/U
HONEYWELL M7284Q1082
HONEYWELL M7284Q1090
HONEYWELL M7284Q1009
HONEYWELL ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL執行器M7284Q1009的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HONEYWELL執行器72系列M7284Q1009技術參數及選型
