E+E溫濕度傳感器EE160系列技術參數
Technical Data | |
Measurands | |
Relative humidity | |
Accuracy at 20 °C | ±2.5 % RH |
Temperature dependency, typ. | ±0.03 % RH/°C |
Temperature | ±0.3 °C (±0.54 °F) |
Outputs | |
Analogue output | 0 - 10 V 0 < IL < 1 mA or |
Digital interface | RS485 (EE160 = 1 unit load) |
Passive T-sensor | 4-wire connection, see ordering guide |
General | |
Sensing element | E+E HCT01 with E+E proprietary coating |
Power supply |
|
Connection | Screw terminals, max. 1.5 mm2 |
Housing material | Polycarbonate, UL94V-0 approved |
Protection class | IP65 / NEMA 4 |
Cable gland | M16x1.5 |
Electromagnetic compatibility | EN 61326-1 |
Working range | -40...60 °C (-40...140 °F) / 10…95 % RH |
Storage conditions | -20...60 °C (-4...140 °F) / 10…90 % RH, non-condensing |
E+E溫濕度傳感器EE160系列介紹
E+E Elektronik的EE160傳感器是專門為HVAC應用而設計的，是一種用于測量相對空氣濕度和溫度的經濟高效，高度準確和可靠的解決方案。外殼降低了安裝成本，并提供優秀的保護，防止污染和冷凝，從而確保了完善的操作。 EE160采用新型的濕度/溫度E + E傳感器元件HCT01，具有長期穩定性和抗污染性。它提供±2.5％RH的精度，可用于壁掛式或管道安裝式電流或電壓輸出。 EE 160系列的多功能性通過與免費配置軟件一起使用的配置適配器電纜（HA011059）得以擴展，可輕松就地調節濕度和溫度。
Specially designed for HVAC applications, the EE160 sensor by E+E Elektronik is a cost effective, highly accurate and reliable solution for measuring relative air humidity and temperature. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation, thus ensuring flawless operation. The EE160 employs the new humidity/temperature E+E sensor element HCT01 with excellent long term stability and resistance against pollutants. It provides an accuracy of ±2.5%RH and is available for wall or duct-mounted with current or voltage output. The EE 160 Series versatility is expanded with the configurator adapter cable (HA011059) used with the free configurator software for easy on-site adjustment of the humidity and temperature.

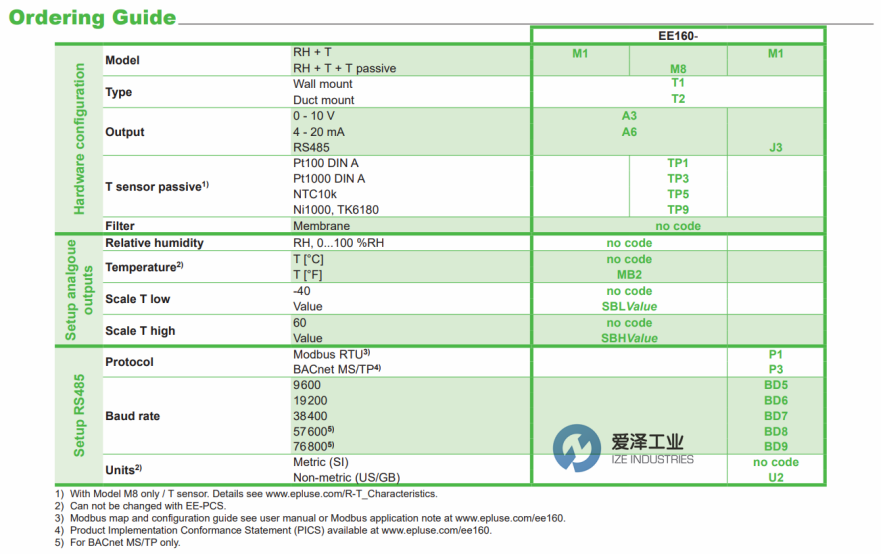

E+E溫濕度傳感器EE160系列選型
E+E溫濕度傳感器EE160系列其他常用型號：
E+E EE160-M1T1A3SBL0SBH50
E+E EE160-M1T2A3SBL0SBH50
E+E EE160-M1T2A6SBL0SBH50
E+E EE160-M1T1A6P1BD5
E+E EE160-M1T2A6P1BD5
E+E EE160-HT6xAPBBTx004M
E+E EE160-M1T2A6SBL-40SBH60
E+E HUMIDITY AND TEMPERATURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
