TK-FUJIKIN為半導體、FPD生產線、石化、發電、CNG和氫氣等多個行業提供整體氣體解決方案。專業生產超高純度閥門、配件、調節器、氣體過濾器、IGS等和氣箱，并具有系統的質量控制。主要產品是用于一般工業各種用途的配件和閥門。它們設計耐用、耐腐蝕和耐高溫。維護和維修也方便了客戶。還有CNG – 車輛手動/電磁閥 氫氣 – 350/700 bar 閥門（車輛）、調節器（無人機/車輛）、配件/閥門/過濾器（加油站）等。
TKF調壓閥S8RG2-VF-3A3-P技術參數
Material | S = 316L Stainless steel |
Connection Size | 8 = 1/2" |
Product | RG2 = RG2 Series |
Connection Type | VF = Female Type Face Seal |
Maximum Inlet Pressure | 3 = 600 PSIG |
Gauge Port Configuration | A = No Gauge Port (Fig. A) |
Outlet Pressure Range | 3 = 1 ~ 150 PSIG |
User Option | BLANK = Standard |
Grade | P = Electropolishing (5 Ra μinch) |
TKF調壓閥RG2系列介紹
? 專為使用點高流量而設計，用于氣體公司、設備制造商和半導體制造商的工藝氣體柜。
? RG2 可精確控制工具處或附近的工藝氣體壓力，在 300 PSIG 入口處流速高達 600 SLPM。
? 所有內部表面均采用 10Ra 或 5Ra 處理，以確保最少的顆粒產生和滯留。金屬對金屬隔膜密封件可增強防漏完整性。
? 組裝、焊接、測試和最終清潔的每個步驟均在 100 級潔凈室中完成。
? Designed for point-of-use high flow to be used in process gas cabinets for gas companies, equipment manufactures and semiconductor manufacturers.
? The RG2 provides precise control of process gas pressure at or near the tool for flow rates of up to 600 SLPM at 300 PSIG inlet.
? All internal surfaces are finished with 10Ra or 5Ra to ensure minimal particle generation and entrapment. Metal-to-metal diaphragm seals provide enhanced leak tight integrity.
? Every step of assembly, welding, testing and final cleaning finished in Class 100 Cleanrooms.

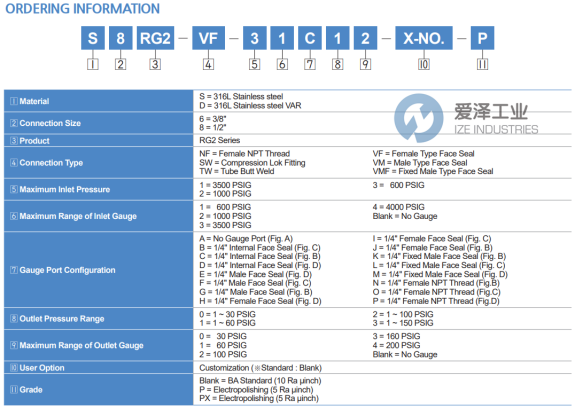

TKF調壓閥RG2系列選型
TKF調壓閥RG2系列其他常用型號：
TKF S8RG2-SW-1A0
TKF S8RG2-SW-1A0-P
TKF S8RG2-SW-180
TKF S8RG2-SW-1B0-P
TKF S8RG2-SW-1CO
TKF S8RG2-SW-1C0-P
TKF S8RG2-VF-1A0
TKF S8RG2-VF-1A0-P
TKF S8RG2-VF-180
TKF S8RG2-VF-1B0-P
TKF S8RG2-VF-1CO
TKF S8RG2-VF-ICO-P
TKF S8RG2-VM-1A0
TKF S8RG2-VM-1A0-P
TKF S8RG2-VM-180
TKF S8RG2-VM-1B0-P
TKF S8RG2-VF-3A3-P
TKF REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TKF調壓閥S8RG2-VF-3A3-P的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TKF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TKF調壓閥RG2系列S8RG2-VF-3A3-P技術參數及選型
