METRIX作為工業振動監測系統的供應商，服務于全球許多的冷卻塔，汽輪機，往復式壓縮機和其它旋轉復式機械的制造商和用戶。
主營產品：
METRIX接近開關
METRIX地震儀
METRIX振動開關
METRIX搖床
METRIX監控器
METRIX振動開關450DR-2044-0100技術參數
Series | 450 |
Number of Alarm Setpoints | DR = Two alarm setpoints |
Analog Proportional Output | 2 = 4-20 mA(absolute) |
Scale Range | 0 = 0.1 – 1.5 in/sec (derived peak) |
Shutdown Circuit Output | 4 = Electromechanical relay (10A, SPDT) |
Alarm Circuit Output | 4 = Electromechanical relay (10A, SPDT) |
Housing / Approvals | 0 = |
Input Power | 1 = 230 Vac, 50/60 Hz |
Power-up Timed Inhibit (i.e., LOCKOUT) | 0 = None |
Transducer Option | 0 = Internal Accelerometer |
METRIX振動開關450系列介紹
電子開關采用固態晶體加速度計，當其因振動力而變形時，會提供電輸出。輸出以電子方式轉換為與速度成比例的信號。該信號與預設限值進行比較，如果超過限值，則觸發固態繼電器。440 振動開關中沒有移動部件，除非配置了機械繼電器。
開關的一個重要特性是內置延時。這可以防止因振動水平瞬時增加而觸發警報或關機功能。它還可以避免因啟動期間發生的瞬時振動而關機。
幾乎所有機器在啟動時都會經歷幾秒鐘的高振動，然后才能達到運行速度。當沒有延時功能時，就像機械開關一樣，這種啟動振動會導致跳閘。操作員經常會調高跳閘設置，直到他能夠完成啟動。由此產生的跳閘水平太高，無法在機器的運行速度下提供保護。
三秒警報跳閘延遲是開關的標準配置。警報時間延遲可在現場獨立調整，范圍為 2 到 15 秒。
The electronic switch utilizes a solid state crystal accelerometer which provides an electrical output when it is deformed by the vibration forces. The output is electronically converted to a signal proportional to velocity. This signal is compared with a preset limit and triggers a solid state relay if the limit is exceeded. There are no moving parts in the 440 vibration switches except when configured with mechanical relays.
An important feature of the switch is the built-in time delay. This prevents triggering of the alarm or shutdown functions from transient increases in vibration levels. It also avoids shutdown due to transitory vibrations occurring during start-up.
Almost all machines experience a few seconds of high vibration during start-up before reaching operating speed. When no time delay function is included, as with mechanical switches, this start-up vibration causes a trip. Frequently, the operator turns the trip setting up until he can get through start-up. The resultant trip level is too high to afford protection at the machine’s operating speed.
Three-second alarm trip delay is standard on the switch. Alarm time delays are independently adjustable in the field over a range of 2 to 15 seconds.

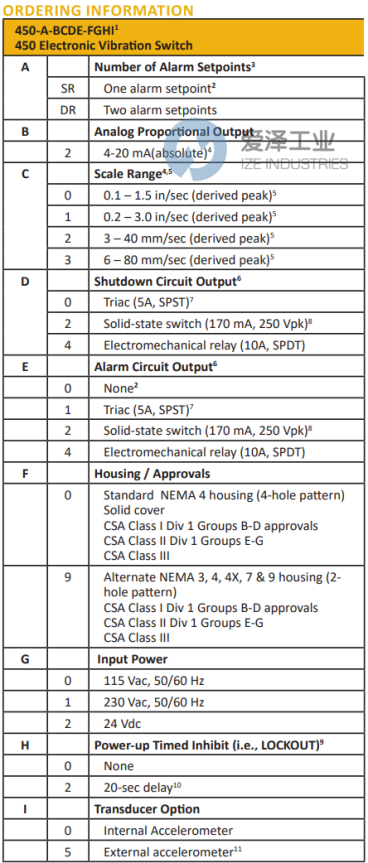

METRIX振動開關450系列選型
METRIX振動開關450系列其他常用型號：
METRIX 450DR-2022-0200
METRIX 450DR-2222-0100
METRIX 450DR-2122-0100
METRIX 450DR-2222-9120
METRIX 450DR-2144-0100
METRIX 450DR-2122-0000
METRIX 450DR-2044-0100
METRIX VIBRATION SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于METRIX振動開關450DR-2044-0100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for METRIX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
METRIX振動開關450系列450DR-2044-0100技術參數及選型
