KRACHT是一家中型工程公司，擁有約 450 名員工。KRACHT的核心競爭力是開發、制造和銷售流量計、流體測量、閥門、液壓驅動和定制系統解決方案領域的高質量技術。
KRACHT齒輪泵KF4...80系列技術參數
Characteristics | |
Nominal sizes 4…80 cm3 | Vg = 4 / 5 / 6 / 8 /10 /12 /16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 |
Fitting position | arbitrary |
Direction of rotation | right or left |
Fixing type | flange (DIN ISO 3019) |
Pipe connection | KF 4…25 Whitworth pipe thread, SAE flange |
Drive shaft end | ISO R 775 short-cylindrical |
Operating pressure pressure side Pn | 25 bar (higher pressures on request) |
Speed | 200 … 3 000 1/min |
Viscosity | 12 … 20 000 mm2/s |
Ambient temperature | Vu = - 20 °C … 60 °C (-- 4 °F…140 °F) |
Materials | |
Housing and cover | EN-GJL-250 (GG 25) |
Gear | Steel 1.7139 |
Plain bearing bushes | DU (multi-layer friction-type bearings P 10, DP 4) |
Bearings free of nonferrous metal on request | |
Shaft end seals | NBR, FKM, PTFE, EPDM (other sealing materials on request. E.g. HNBR / CR) |
O-ring | NBR, FKM, PTFE, EPDM (other sealing materials on request. E.g. HNBR / CR) |
KRACHT齒輪泵KF系列介紹
傳輸齒輪泵 KF 齒輪泵用于泵送各種流體。
傳輸齒輪泵 KF 齒輪泵的特點是其種類繁多，可根據模塊化原理按需組裝，并允許后續升級。
該泵還適用于潤滑性較低的介質。
標準殼體部分由灰鑄鐵制成。
齒輪組由高強度表面硬化鋼制成，經過硬化處理并安裝在特殊的多化合物滑動軸承襯套中。
標準驅動軸由旋轉軸唇形密封件密封。
所有尺寸的泵均采用斜齒系統。該特性與特殊的齒輪幾何形狀相結合，可實現極低的噪音水平和減小的壓力脈動。
Transfer gear pumps KF gear pumps are used for pumping a wide variety of fluids.
Transfer gear pumps KF gear pumps are distinguished especially by their wide range of variants which are assembled as required on the modular principle and also permit subsequent upgrade.
The pumps are also suitable for media with low lubricating properties.
The standard housing sections are of grey cast iron.
The gear units are manufactured from high-strength case-hardening steel, hardened and mounted in special multi-compound plain bearing bushes.
The standard drive shaft is sealed by rotary shaft lip-type seal.
All pump sizes incorporate helical tooth system. This feature, combined with special gear geometry, results in extremely low noise levels and reduced pressure pulsation.

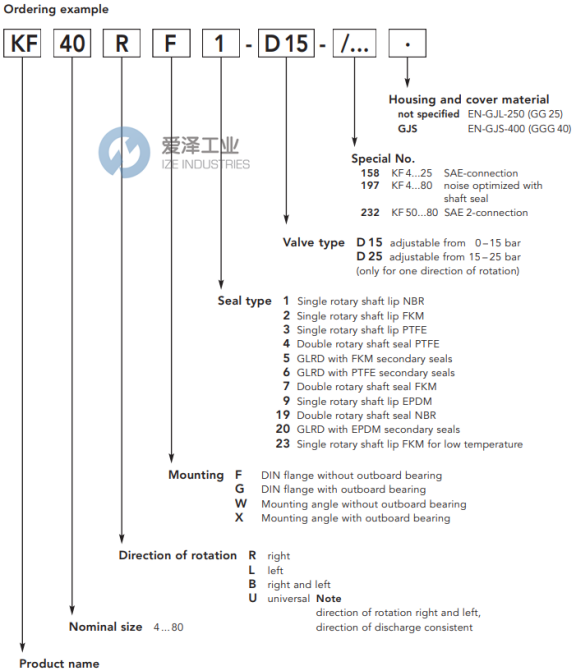

KRACHT齒輪泵KF系列選型
KRACHT齒輪泵KF系列其他常用型號：
KRACHT KF8 RF2-D15
KRACHT KF8 RF1-D15
KRACHT KF8 RF7-D15
KRACHT KF40RF1-D15
KRACHT KF6 RF1-D15
KRACHT KF20 RF1-D15
KRACHT KF 8 RF 2/158
KRACHT PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KRACHT齒輪泵KF8RF1-D15的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KRACHT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
KRACHT齒輪泵KF系列KF8RF1-D15技術參數及選型
