YOKOGAWA PH電極FU20系列技術參數
General Specification FU20 | |
Measuring elements | |
Sensor type : | pH glass electrode |
Reference system : | Silver Chloride reference |
Electrode type : | Solid Platinum electrode |
Temperature sensor : | Pt1000 temperature sensor |
Construction materials | |
Wetted parts | |
Sensor body : | NPT, FSM, PPS GF40: FTD, PVDF- (GF25+TZ24) |
Earthing pin : | Solid Platinum |
Measuring sensor : | G-glass |
LE glass tube : | AR-glass |
O-ring : | Viton-FTS and FSM,FTD and NPT |
Reference junction : | Porous PTFE |
Functional specifications (at 25°C) | |
Isothermal point : | pH 7 |
Reference system : | Ag/AgCl with saturated KCI |
Glass impedance | |
- Dome shape : | nominal 200MΩ |
- Flat Surface : | nominal 700MΩ |
Junction resistance : | < 10 kΩ |
Temperature element : | Pt1000 to IEC 751 |
Asymmetry potential : | 8 ± 15 mV |
Linearity PH (Slope) : | > 96 % (of theoretical value) |
Dynamic specifications (at 25°C) | |
Response time pH step (7 to 4) : | < 15 sec for 90% |
Response time temp step (10°C) : | < 1 min for 90% |
- Dome shape : | < 4 min for 90% |
- Flat Surface Stabilization time (0.02 pH unit/10 s) : | < 2 minutes |
Operating range | |
pH : | 0 to 14 |
ORP : | -1500 to 1500 mV |
rH : | 0 to 100 |
Temperature | |
- Dome shape : | -10°C to 105°C (14°F to 221°F) |
- Flat surface : | 15°C to 105°C (59°F to 221°F) |
Conductivity : | > 50 μS/cm |
Enviromental conditions | |
Storage temp. : | -15 to 50 °C (5 to 122 °F) |
Ingress Protection : | IP67 |
YOKOGAWA PH電極FU20系列介紹
寬體傳感器（直徑 26 毫米）在一個牢固且耐化學腐蝕的 PPS 40GF 機身中容納四個獨立的測量元件。使用集成的工業 3/4” 錐形螺紋，安裝簡單。溫度波動得到補償，以延長傳感器壽命。FU20 針對那些簡單易用的應用，可實現準確可靠的 pH 或氧化還原測量。這意味著在 90% 的已知應用中，此傳感器將是一個不錯的選擇。在恒定壓力和溫度下運行的通用應用中，F(xiàn)U20 傳感器已證明其多年來的實用性。在標準配置中，寬體傳感器在一個由 PPS 40GF 制成的牢固的機身中容納四個獨立的測量元件。此傳感器為用戶提供了經濟高效且堅固的解決方案。在強酸性應用中以及在 PPS 的化學兼容性不能滿足工藝需求的情況下，采用 PVDF 機身制成的 FTD 版本可提供所需的解決方案。 PVDF 版本提供的額外化學兼容性可滿足多種應用的需求。
The wide body sensors (26 mm diameter) hold four separate measuring elements in one unbreakable and chemical resistant PPS 40GF body. Installation is simple with the integrated industrial 3/4” tapered thread. Temperature fluctuations are compensated to extend the sensor life. The FU20 is targeted at those applications where simplicity will result in accurate and reliable pH- or redox measurements. This means that in 90% of the known applications, this sensor will be an excellent choice. In general purpose applications running at constant pressure and temperature the FU20 sensor has proven it use for years. In the standard configuration the wide body sensors hold four separate measuring elements in one unbreakable body made of PPS 40GF. This sensor offers a cost effective and rigid solution to the users. In strong acidic applications and in In cases where the chemical compatibility of PPS does not address the process needs, the FTD version made in a PVDF body offers the required solution. The additional chemical compatibility offered by the PVDF version addresses the needs in several applications.

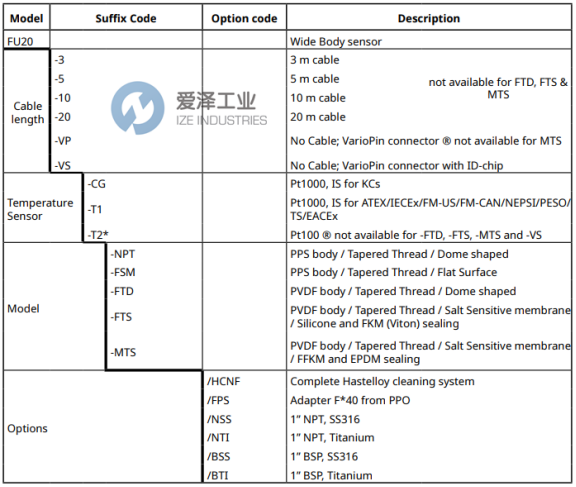

YOKOGAWA PH電極FU20系列選型
YOKOGAWA PH電極FU20系列其他常用型號：
YOKOGAWA FU20-03-T1-NPT
YOKOGAWA FU20-05-T1-NPT
YOKOGAWA FU20-10-T1-NPT
YOKOGAWA FU20-20-T1-NPT
YOKOGAWA FU20-03-T2-NPT
YOKOGAWA FU20-05-T2-NPT
YOKOGAWA FU20-10-T2-NPT
YOKOGAWA FU20-20-T2-NPT
YOKOGAWA FU20-03-T1-FSM
YOKOGAWA FU20-05-T1-FSM
YOKOGAWA FU20-10-T1-FSM
YOKOGAWA FU20-20-T1-FSM
YOKOGAWA FU20-03-T2-FSM
YOKOGAWA FU20-05-T2-FSM
YOKOGAWA FU20-10-T2-FSM
YOKOGAWA FU20-20-T2-FSM
YOKOGAWA FU20-VP-T1-NPT
YOKOGAWA FU20-VP-T2-NPT
YOKOGAWA FU20-VS-T1-NPT
YOKOGAWA FU20-VP-T1-FSM
YOKOGAWA FU20-VP-T2-FSM
YOKOGAWA FU20-VS-T1-FSM
