ACCU-CODER是Encoder Products Company (EPC)旗下品牌。
Encoder Products Company (EPC)是運動傳感設備的設計商和全球制造商。EPC創立于1969年，生產增量式和絕對式旋轉編碼器系列。
ACCU-CODER編碼器725I-S-S-30000-Q-HV-5-F-1-SX-N-CE技術參數
MODEL | 725: Size 25 (2.5") |
HOUSING STYLE | I: Heavy duty industrial with internal flex mount |
SHAFT SIZE | S: 3/8", 0.375" (standard) |
OPERATING TEMPERATURE | S: 0° to 70° C |
CYCLES PER REVOLUTION | 30000 |
NUMBER OF CHANNELS | Q: Quadrature A & B |
OUTPUT TYPE | HV: Line Driver |
MAXIMUM FREQUENCY | 5: 250 kHz > 3000 CPR |
MOUNTING | F: Flange |
SEALING | 1: IP66 |
CONNECTOR LOCATION | S: Side |
CONNECTOR TYPE | X: 10-pin MS |
MATING CONNECTOR | N: No |
CERTIFICATION | CE: CE Marked |
ACCU-CODER編碼器725系列介紹
725 Accu-Coder光軸編碼器專為應對工業環境的挑戰而設計。 即使采用堅固的工業封裝，這款尺寸 25 編碼器仍然具有每轉分辨率高達 30,000 周期的性能。 725 型提供法蘭和伺服安裝選項，并提供兩種獨特的外殼樣式：標準外殼 (N) 和工業外殼 (I)。 堅固的標準外殼將內部電子設備與外部環境的沖擊和壓力隔離，而超重型工業外殼則具有完全隔離的內部編碼器單元。 通過使用內部柔性安裝座來隔離該裝置，以保護編碼器免受嚴重的軸向和徑向軸負載的影響，從而延長軸承壽命。 對于承受連續側向負載的應用（例如使用測量輪、滑輪或鏈條和鏈輪驅動編碼器的應用），推薦使用工業外殼解決方案。
特征
? 標準尺寸 25 包裝 (2.5" x 2.5")
? 每轉高達 30,000 個周期
? 標準和工業外殼
? 伺服和法蘭安裝
? 提供IP67 密封
The Model 725 Accu-Coder? optical shaft encoder is specifically designed for the challenges of an industrial environment. Even with its tough, industrial package, this Size 25 encoder still has the performance to reach resolutions up to 30,000 cycles per revolution. The Model 725 offers both flange and servo mounting options, and is available in two distinctive housing styles: Standard Housing (N) and Industrial Housing (I). The rugged Standard Housing isolates the internal electronics from the shock and stress of the outer environment, while the extra heavy-duty Industrial Housing features a fully isolated internal encoder unit. Isolating the unit prolongs bearing life by using an internal flexible mount to protect the encoder from severe axial and radial shaft loading. The Industrial Housing is the recommended solution for applications subject to continuous side loads, such as those that drive the encoder with a measuring wheel, pulley, or chain and sprocket.
FEATURES
? Standard Size 25 package (2.5" x 2.5")
? Up to 30,000 CPR
? Standard and industrial housings
? Servo and flange mounting
? IP67 sealing available

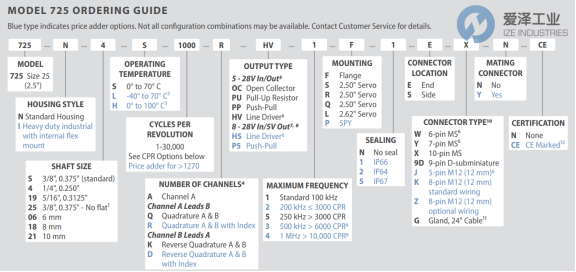

ACCU-CODER編碼器725系列選型
ACCU-CODER編碼器725系列其他常用型號：
ACCU-CODER 725N-S-S-0500-Q-HV-1-F-N-EY-Y-N
ACCU-CODER 725I-S-S-0360-R-OC-1-F-N-SY-N-N ST14-5-C
ACCU-CODER 725I-SS-2540-Q-HV-2-F-1-SX-N-CE
ACCU-CODER 725N-S-S-0045-A-OC-1-S-1-SY-Y-N
ACCU-CODER 725N-S-S-5000-Q-HV-5-F-N-SY-Y-CE
ACCU-CODER 725N-S-S-1024-R-H5-1-S-1-SX-N-N
ACCU-CODER 725N-S-S-0025-Q-OC-1-F-N-SY-Y-N
ACCU-CODER 725N-S-S-1024-R-HV-1-F-N-SX-Y-CE
ACCU-CODER 725I-S-S-1000-R-HV-1-S-N-S-Y-N
ACCU-CODER 725-S-S-3000-Q-HV-1-S-1-SK-N-N
ACCU-CODER 725N-S-S-0045-A-OC-1-S-1-S-Y-N
ACCU-CODER 725I-S-S-6000-Q-HV-2-F-1-SX-Y-CE
ACCU-CODER 725I-S-S-30000-Q-HV-5-F-1-SX-N-CE
ACCU-CODER ENCODER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ACCU-CODER編碼器725I-S-S-30000-Q-HV-5-F-1-SX-N-CE的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ACCU-CODER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
