Specifications | |
General | |
Compatibility: | 2750 Sensor Electronics (for 8900, 9900, 4 to 20 mA or Profibus Concentrator |
Tip Design: | Bulb |
HF Resistant | < 2% HF |
Operating Range: | pH: 0 to 14 pH |
Process Connection: | 3/4", for use in reducing tees up to 4" |
Temperature Sensor: | PT1000 Versions: Compatible with Signet 2750 pH/ORP sensor electronics for connection to a PLC or the the Signet 8900 or 9900 instruments. |
Wetted Materials | pH: Ryton (PPS), glass, UHMW, PE, FPM |
Max Temperature/Pressure Rating | |
Operating Temperature: | 14°F to 185°F |
Max Operating Pressure: | 100 psi @14 to 150°F, 58 psi @ 150 to 185°F |
GF電極2724-2726系列介紹
Signet 2724-2726 pH 和 ORP 電極使用獨特的防污 DryLoc 連接器。大面積 PE 參比接點和路徑的構建可提高總參比效率并確保較長的使用壽命。 DryLoc 連接器具有耐腐蝕鍍金觸點，可輕松將傳感器連接到配套的 2760 前置放大器或 2750 傳感器電子器件。堅固的 Ryton 螺紋傳感器主體以及平面 pH、球泡 pH 或平面 ORP 傳感元件的選擇可為各種應用提供廣泛的化學和機械兼容性。
特征：
- 安裝在 1/2" 至 4" 的 Signet 標準接頭中
- 3/4" 無螺紋傳感器
- 特殊設計允許以任何角度安裝，甚至倒置或水平安裝
- Ryton (PPS) 主體適用于廣泛的化學兼容性
- 帶鍍金觸點的專利 DryLoc 連接器
- 快速溫度響應
The Signet 2724-2726 pH and ORP electrodes feature a patented reference design and uses the unique foul proof patented DryLoc connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life. The DryLoc connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton threaded sensor body and choice of flat pH, bulb pH or flat ORP sensing elements allows a broad range of chemical and mechanical compatibility for a wide variety of applications.
Features:
- Mounts in Signet standard fitting from 1/2" to 4"
- 3/4" NOT threaded sensors
- Special design allows for installation at any angle, even inverted or horizontal
- Ryton (PPS) body for broad range of chemical compatibilty
- Patented DryLoc connector with gold plated contacts
- Quick temperature response
- Bulb and flat HF resistant glass available for trace HF, in less than 2% concentration applications
- Low conductivity sensor available for liquids down to 20 uS/cm

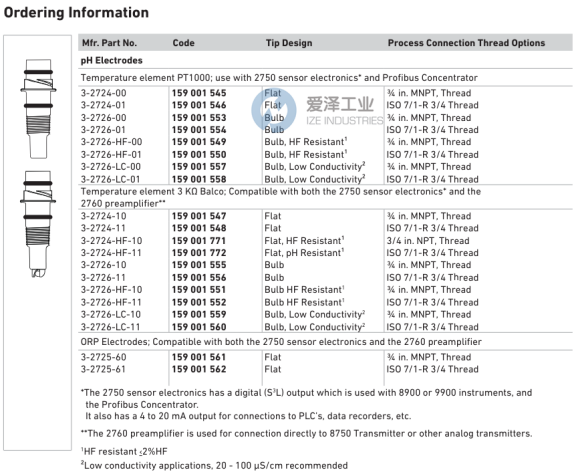

GF電極2724-2726系列選型
GF電極2724-2726系列其他常用型號：
GF 3-2724-00
GF 3-2724-01
GF 3-2724-10
GF 3-2724-11
GF 3-2725-60
GF 3-2725-61
GF 3-2726-00
GF 3-2726-01
GF 3-2726-10
GF 3-2726-11
GF 3-2726-HF-00
GF 3-2726-HF-01
GF 3-2726-HF-10
GF 3-2726-HF-11
GF 3-2726-LC-00
GF 3-2726-LC-01
GF 3-2726-LC-10
GF 3-2726-LC-11
GF 3-2724-HF-10
GF 3-2724-HF-11
GF ELECTRODES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GF電極3-2726-HF-00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GF電極2724-2726系列3-2726-HF-00技術參數及選型
