SUN公司于1970年成立于美國，是高性能液壓螺紋插裝閥塊以及集成閥塊的設計和制造公司，產品集成在流體動力系統中，用以實現力，速度和運動的控制。產品廣泛應用于移動，工業機械和設備等領域。
Technical Data | |
Model | RPGCLWN |
Cavity | T-3A |
Series | 2 |
Capacity | 50 gpm |
Maximum Operating Pressure | 5000 psi |
Factory Pressure Settings Established at | 4 gpm |
Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in3/min.@1000 psi |
Response Time - Typical | 10 ms |
Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
Valve Hex Size | 1 1/8 in. |
Valve Installation Torque | 45 - 50 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight | 0.57 lb. |
Seal kit - Cartridge | Buna: 990203007 |
Seal kit - Cartridge | EPDM: 990203014 |
Seal kit - Cartridge | Polyurethane: 990003002 |
Seal kit - Cartridge | Viton: 990203006 |
MANIFOLDS | CEW |
Body Type | Line mount |
Interface | None |
Body Features | Through port with gauge port |
Mounting Hole Thread | M6x1.0 - 6H |
Mounting Hole Depth | .50 in. |
Mounting Hole Quantity | 2 |
Open Cavities | 1 |
Cavity | T-3A |
Port Size | 3/4" BSPP |
Model Weight | 0.91 lb. |
SUN閥RPGCLWN-CEW產品介紹
先導式平衡活塞泄壓閥是常閉壓力調節閥。當入口（端口 1）處的壓力達到閥門設定值時，閥門開始向油箱（端口 2）打開，節流流量以調節壓力。這些閥門準確，壓力上升與流量較低，平穩安靜，速度適中。
? 所有 2 端口泄壓閥芯（先導泄壓閥除外）在物理和功能上均可互換（對于給定的框架尺寸，具有相同的流路、相同的腔體）。
? 端口 2 可接受更大壓力；適用于跨端口泄壓電路。如果用于跨端口泄壓回路，請考慮閥芯泄漏。
? 主級孔口由 150 微米不銹鋼篩網保護。
? 由于閥芯泄漏，不適合用于負載保持應用。
? 油箱端口（端口 2）上的背壓以 1:1 的比例直接添加到閥門設置中。
? 配置有 EPDM 密封件的閥芯適用于含有磷酸酯液體的系統。接觸石油基液體、油脂和潤滑劑會損壞密封件。
? 耐腐蝕插裝閥適用于腐蝕性環境，通過型號代碼后綴 /AP（外部不銹鋼部件）或 /LH（外部鍍鋅鎳部件）進行識別。
? 采用 Sun 浮動式結構，最大限度地減少由于安裝扭矩過大和/或型腔/墨盒加工變化而導致內部零件粘合的可能性。

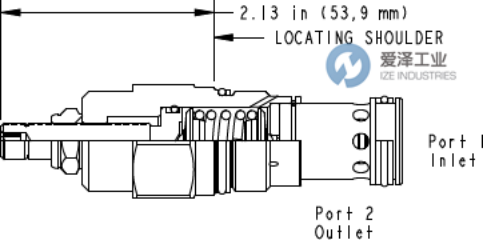

Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
? All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
? Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
? Main stage orifice is protected by a 150-micron stainless steel screen.
? Not suitable for use in load holding applications due to spool leakage.
? Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
? Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
? Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components.
? Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
SUN閥RPGC系列其他常用型號：
SUN RPGCLAN
SUN RPGCLAV
SUN RPGCLBV
SUN RPGCLBN
SUN RPGCLWN-CEW
