REXROTH致力于為各類機械和系統設備提供安全、精準、高效以及高性價比的傳動與控制技術。公司融合全球的應用經驗，研發創新的產品，為行走機械、機械應用與工程、工廠自動化及可再生能源每一個細分市場的客戶量身定制系統解決方案及服務品牌介紹。
REXROTH浮球開關ABZMS-35-1X/165F085S-T70F-K24 R901057920技術參數
Code | ABZMS-35-1X/165F085S-T70F-K24 R901057920 |
Power unit accessories | ABZM = Measuring instruments |
Version | 35 |
Minimum contact | 165 = 165 mm, Switching point L1 in mm |
Maximum contact | 085 = 85 mm, Switching point L2 in mm |
Temperature contact | T70F = Switching contact n/c at 70 °C |
Electrical connection | K24 = Male connector 04-pin M12x1 |
REXROTH浮球開關ABZMS-35-1X/165F085S-T70F-K24 R901057920介紹
浮球開關是由流體移動的浮球操作的開關裝置。它們用于控制 ABSKG … NG10 型小型動力裝置中的油箱液位； 20； 40和60。
滑管包含兩個固定設置的簧片觸點（常閉觸點和常開觸點），通過安裝在浮子中的永磁體進行開關。
安裝固定設定的溫度觸點（選項）以監控最大溫度。液壓油溫度。
液位開關的功能
當油位下降時浮子到達開關點時，觸點會磁性操作。觸點的開關位置保持不變，直到浮子由于油位上升而再次通過開關點。
開關點L1為常閉觸點，開關點L2的觸點功能可選為常閉或常開觸點。
液位開關功能
當油位下降時浮子到達開關點時，觸點會進行磁性操作。觸點的開關位置保持不變，直到浮子由于油位上升而再次通過開關點。
開關點L1為常閉觸點，開關點L2的觸點功能可選為常閉或常開觸點。
溫度接觸功能
受溫度影響的雙金屬板會在達到固定設定的響應溫度時進行切換。溫度觸點不適用于溫度控制，僅用于關閉功能。
Float switches are switching devices operated by a float moved by fluid. They are used to control the tank fluid levels in small power units type ABSKG … NG10; 20; 40 and 60.
The sliding tubes contain two fixedly set reed contacts (normally closed contact and normally open contact) that are switched by the permanent magnets installed in the float.
Fixedly set temperature contacts (option) are fitted to monitor the max. hydraulic fluid temperature.
Function of level switch
When the float reaches the switching points while the oil level is falling, the contacts are operated magnetically. The switching positions of the contacts are maintained until the float passes the switching points again due to a rising oil level.
Switching point L1 is a normally closed contact, the contact function of switching point L2 is optionally a normally closed or normally open contact.
Level switch function
When the float reaches the switching points while the oil level is falling, the contacts are operated magnetically. The switching positions of the contacts are maintained until the float passes the switching points again due to a rising oil level.
Switching point L1 is a normally closed contact, the contact function of switching point L2 is optionally a normally closed or normally open contact.
Temperature contact function
A bimetal plate, which is influenced by temperature, switches when a firmly set response temperature is reached. The temperature contact is not suitable for temperature controlling, but merely for a shutdown function.

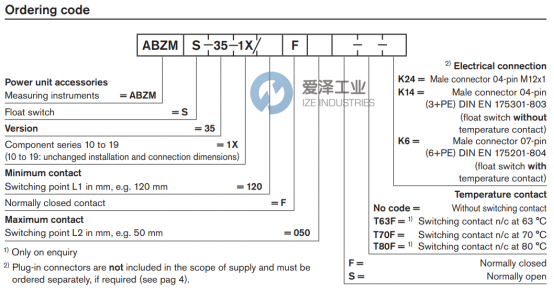

REXROTH浮球開關ABZMS-35系列選型
REXROTH浮球開關ABZMS-35系列其他常見型號：
REXROTH ABZMS-35-1X /090F030S-T70F-K24 R901057916
REXROTH ABZMS-35-1X /120F050S-T70F-K24 R901057918
REXROTH ABZMS-35-1X /165F085S-T70F-K24 R901057920
REXROTH ABZMS-35-1X /165F135S-T70F-K24 R901088814
REXROTH ABZMS-35-1X /120F090S-T70F-K24 R901088813
REXROTH ABZMS-35-1X /090F060S-T70F-K24 R901088812
REXROTH ABZMS-35-1X/090F030S-K24 R901057912
REXROTH ABZMS-35-1X/120F050S-K24 R901057913
REXROTH ABZMS-35-1X/165F085S-K24 R901057914
REXROTH ABZMS-35-1X/090F060S-K24 R901088809
REXROTH ABZMS-35-1X/120F090S-K24 R901088810
REXROTH ABZMS-35-1X/165F135S-K24 R901088811
REXROTH FLOAT SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH浮球開關ABZMS-35-1X/165F085S-T70F-K24 R901057920的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH浮球開關ABZMS-35系列ABZMS-35-1X/165F085S-T70F-K24 R901057920技術參數及選型
