蝶閥執行器類型介紹（中英文）
蝶閥執行器決定使用哪個電源來操作閥門。這會影響閥門的響應時間、驅動壓力額定值、環境適應性等。有時，選擇合適的執行器取決于應用可用的電源。本文仔細研究了各種執行器類型，以便用戶可以靈活選擇哪種類型。閱讀有關執行器類型的文章，了解不同執行器類型如何與工業閥門配合使用。
A butterfly valve actuator determines which power source is used to operate the valve. This impacts the valve's response time, actuation pressure rating, environmental suitability, and more. Sometimes selecting the proper actuator depends on the power source(s) available for the application. This article closely examines the various actuator types for users who have some flexibility in which type to get. Read our article on actuator types to learn how different actuator types work with industrial valves.
目錄
Table of contents
什么是蝶閥？
What is a butterfly valve?
選擇蝶閥執行器
Selecting a butterfly valve actuator
蝶閥執行器類型
Butterfly valve actuator types
工業閥門執行器標準
Standards for industrial valve actuators
執行器特定應用
Actuator specific applications
蝶閥符號
Butterfly valve symbols
常見問題解答
FAQs
什么是蝶閥？
What is a butterfly valve?
蝶閥是調節流經一段管道的流體的控制閥。該閥門在操作中類似于球閥，具有快速關閉功能。蝶閥有一個安裝在旋轉桿上的閥瓣。當閥門完全關閉時，閥瓣阻止流體流動。相反，當閥門完全打開時，閥瓣旋轉四分之一圈，以允許幾乎不受限制的流體流動。閥瓣位于完全關閉和完全打開之間的位置可實現比例流量特性。蝶閥因其簡單、可靠和相對較低的成本而被廣泛使用。
A butterfly valve is a control valve that regulates fluid flowing through a section of pipe. This valve is similar to a ball valve in operation, with a quick shut-off feature. A butterfly valve has a disc mounted to a rotating stem. When the valve is fully closed, the disc blocks the fluid flow. Conversely, when the valve is fully open, the disc is rotated a quarter turn to allow a nearly unrestricted fluid flow. The disc's position between fully closed and fully open allows for proportional flow characteristics. Butterfly valves are used for their simplicity, reliability, and relatively low cost.
選擇蝶閥執行器
Selecting a butterfly valve actuator
為蝶閥選擇正確的執行器類型取決于特定的系統組件和要求。蝶閥可以手動、電動、氣動或液壓驅動。
Selecting the correct type of actuator for a butterfly valve depends on specific system components and requirements. A butterfly valve can be actuated manually, electrically, pneumatically, or hydraulically.
? 使用頻率：手動蝶閥適用于比較小型、不經常啟閉的蝶閥。對于較大尺寸的閥門將配備變速箱，以便用戶可以手動啟動。
? 成本：盡管根據閥門的型號和結構材料存在很大差異，但蝶閥按以下方式從最便宜到最昂貴
? 排序：手動、電動、氣動和液壓。氣動和液壓執行器需要壓縮空氣或液壓系統，從而增加了初始成本。
? 閥門尺寸：大型蝶閥可能需要液壓執行器才能產生足夠的力來打開或關閉閥門。
? 系統壓力：對于系統壓力非常高的應用，可能需要液壓驅動蝶閥。
? 響應時間：氣動蝶閥對于需要的應用具有非?？斓捻憫?yīng)時間。
? 電源：手動蝶閥是唯一不需要外部電源的類型，使其成為安裝和使用最簡單的類型。
? 環境：電動蝶閥不適合潮濕或爆炸性環境。
? Frequency of use: Manually operated butterfly valves are suitable for relatively small butterfly valves that open and close infrequently. For larger sizes, the valves will come equipped with a gearbox so a user can actuate it manually.
? Cost: Although there is significant variability depending on the valve's model and construction material, butterfly valves order from least expensive to most expensive in the following way: manual, electric, pneumatic, and hydraulic. Pneumatic and hydraulic actuators require compressed air or a hydraulic system, increasing their initial costs.
? Valve size: A hydraulic actuator may be necessary for huge butterfly valves to produce enough force to open or close the valve.
? System pressure: Hydraulically actuated butterfly valves may be necessary for applications with very high system pressure.
? Response time: Pneumatically actuated butterfly valves have a very fast response time for applications that require it.
? Power source: Manual butterfly valves are the only type not requiring an external power source, making them the most straightforward type to install and use.
? Environment: Electrically actuated butterfly valves are unsuitable for moist or explosive environments.
蝶閥執行器類型
Butterfly valve actuator types
驅動蝶閥有四種主要方法：手動、電動、液壓和氣動。對于電動、液壓和氣動蝶閥，如果需要，通常還可以選擇手動驅動方式供蝶閥使用。
There are four primary methods for actuating a butterfly valve: manually, electrically, hydraulically, and pneumatically. For electric, hydraulic, and pneumatic butterfly valves, there is often an option to also have a manual method of actuation for the butterfly valve to use if needed.
手動蝶閥
Manual butterfly valve
手動驅動是簡單的驅動蝶閥方法?；镜脑O(shè)計使用杠桿來轉動閥桿，從而旋轉閥盤來打開或關閉閥門。較大的蝶閥可以有一個連接到變速箱的手輪。這是產生足夠的力來手動打開或關閉閥門的較簡單方法。手動驅動的主要好處是不需要外部電源。然而，由于用戶需要打開或關閉閥門，因此這種致動方式對于需要頻繁致動蝶閥的應用來說并不理想。
Manual actuation is the simplest way to actuate a butterfly valve. The most basic design uses a lever to turn the valve stem, which rotates the valve's disc to open or close the valve. Larger butterfly valves can have a handwheel that connects to a gearbox. This is the easiest way to generate enough force to manually open or close the valve. The primary benefit of manual actuation is that an external power source is not required. However, since a user needs to open or close the valve, this actuation style is not ideal for applications requiring frequent butterfly valve actuation.

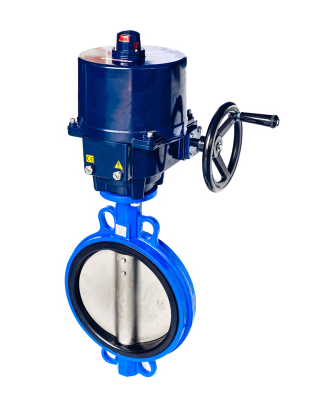

電動蝶閥
Electric butterfly valve
電動執行器將電能轉換成機械扭矩。該扭矩旋轉閥桿以打開或關閉閥門。電動蝶閥用途廣泛，因?yàn)樗鼈兛梢跃幊桃皂憫?yīng)特定信號并且可以遠程控制。電動執行器相對節能且易于維護。然而，它們不適合高濕度或爆炸性環境。
An electric actuator converts electrical energy into mechanical torque. This torque rotates the valve's stem to open or close the valve. Electrically actuated butterfly valves are versatile because they can be programmed to respond to specific signals and can be controlled remotely. Electric actuators are relatively energy efficient and simple to maintain. However, they are not suitable for high-moisture or explosive environments.
液壓蝶閥
Hydraulic butterfly valve
蝶閥液壓執行器利用流體壓力產生機械力。液壓泵對流體（通常是油）加壓，從而移動氣缸內的活塞?；钊\(yùn)動傳遞到閥桿，打開或關閉閥門。液壓執行器可以產生大量的力并操作大型閥門或高壓應用中的閥門。然而，必要的液壓動力單元和儲液器增加了系統的復雜性和成本。
Butterfly valve hydraulic actuators use fluid pressure to create mechanical force. The hydraulic pump pressurizes the fluid, typically oil, which moves a piston inside the cylinder. The piston movement transfers to the valve's stem, opening or closing the valve. Hydraulic actuators can generate a large amount of force and operate large valves or valves in high-pressure applications. However, the necessary hydraulic power unit and fluid reservoir increases the system's complexity and cost.

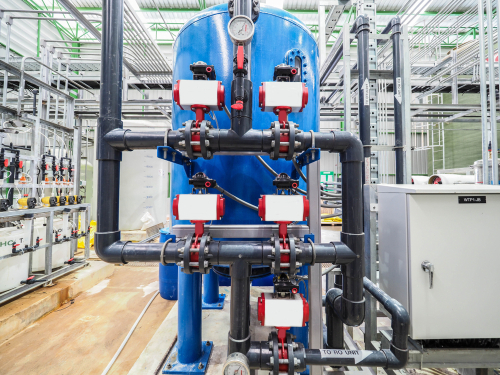

氣動蝶閥
Pneumatic butterfly valve
氣動執行器利用氣壓產生機械運動。執行器中的壓縮空氣移動活塞或隔膜，從而旋轉閥桿。帶氣動執行器的蝶閥動作快速、可靠。它們可以在危險環境中使用，因?yàn)樗鼈儾粫?huì)產生火花。然而，需要壓縮空氣源，并且驅動速度比電動或液壓執行器更難控制。
Pneumatic actuators create mechanical motion using air pressure. Pressurized air in the actuator moves a piston or diaphragm, which rotates the valve stem. Butterfly valves with pneumatic actuators are fast-acting, reliable. They can be used in hazardous environments because they do not create sparks. There is a need for a compressed air source, though, and the actuation speed is more difficult to control than that of electric or hydraulic actuators.
工業閥門執行器標準
Standards for industrial valve actuators
在為蝶閥選擇執行器時，必須確保執行器符合國際社會制定的標準。不符合這些標準的閥門執行器存在過早損壞的風險，這可能會導致系統損壞并危及人員安全。工業閥門執行器的一些常見標準是：
When selecting an actuator for a butterfly valve, it's essential to ensure that the actuator meets standards set by the international community. Valve actuators that fail to meet these standards are at risk of premature breakage, which can cause damage to a system and endanger personnel. Some common standards for industrial valve actuators are:
? ISO 22153：ISO 22153 提供了工業閥門電動閥門執行器的基本要求。
? ISO 5211：ISO 5211 規定了部分回轉閥門上使用的任何類型執行器的要求，部分回轉閥門定義為閥桿旋轉小于 360° 才能完全打開或關閉的閥門。該標準包括帶或不帶齒輪箱的執行器。
? BS EN 15714：該標準規定了用于部分閥門的任何氣動執行器的要求。
? ISO 22153: ISO 22153 provides basic requirements for electric valve actuators for industrial valves.
? ISO 5211: ISO 5211 provides the requirements for any type of actuator used on a part-turn valve, defined as a valve with a stem that rotates less than 360° for the valve to open or close fully. This standard includes actuators with or without a gearbox.
? BS EN 15714: This standard provides requirements for any pneumatic actuator for a part-tun valve.
執行器特定應用
Actuator specific applications
以下示例是通常適合一種蝶閥驅動方法的應用。使用示例來幫助確定不同應用可能需要哪種類型的執行器。
The following examples are applications typically suitable to one type of butterfly valve actuation method. Use the examples to help determine which type of actuator a different application may require.
? 手動蝶閥：手動蝶閥適用于小型水處理廠。該閥門控制流經不同處理過程階段的水流量。操作人員可以根據處理需要手動操作調節閥門并控制水流量。理想情況下，該閥門不會頻繁調節。
? 電動蝶閥：電動蝶閥在商業建筑的大型暖通空調系統中工作得非常好。 HVAC 系統通常需要精確的氣流控制以維持最佳的室內環境。建筑管理系統通常操作電動蝶閥來提供這種控制。系統根據溫度和空氣質量傳感器反饋?zhàn)詣?dòng)調節閥門。
? 氣動蝶閥：氣動蝶閥非常適合安全性至關重要的天然氣加工廠。使用通過氣壓而不是電力操作的閥門可以降低可能導致爆炸的火花風險。
? 液壓蝶閥：液壓蝶閥在水力發電廠中工作良好。該閥門控制通向渦輪機的壓力管道中的流量。這是一種高壓應用，其他類型的執行器可能無法產生足夠的力來工作。
? Manual butterfly valve: Manual butterfly valves work well in small-scale water treatment plants. The valve controls the flow of water through different treatment process stages. Operators can use manual operation to adjust the valve and control water flow depending on treatment needs. Ideally, this valve will not be adjusted frequently.
? Electric butterfly valve: Electric butterfly valves work very well in large-scale HVAC systems in commercial buildings. HVAC systems typically require precise airflow control to maintain the optimal indoor environment. The building management system typically operates the electric butterfly valve to provide this control. The system automatically adjusts the valve based on temperature and air quality sensor feedback.
? Pneumatic butterfly valve: Pneumatic butterfly valves work well in gas processing plants where safety is essential. Using a valve that operates via air pressure rather than electricity reduces the risk of sparks which can cause explosions.
? Hydraulic butterfly valve: Hydraulic butterfly valves work well in hydroelectric power plants. The valve controls flow in the penstock leading to the turbine. This is a high-pressure application that other actuator types likely could not produce enough force to work under.
蝶閥符號
Butterfly valve symbols
手動蝶閥 Manual butterfly valve |
|
電動蝶閥 Electric butterfly valve |
|
液壓蝶閥 Hydraulic butterfly valve |
|
氣動蝶閥 Pneumatic butterfly valve |
|
常見問題解答
FAQs
如何選擇蝶閥執行器？
How do I choose an actuator for a butterfly valve?
根據可用動力源（例如手動、電動、氣動和液壓）和應用的設計元素選擇蝶閥的執行器。
Choose a butterfly valve's actuator based on the available power source (e.g., manual, electric, pneumatic, and hydraulic) and the design elements of the application.
蝶閥的驅動方式有哪些不同類型？
What are the different types of butterfly valve actuation methods?
蝶閥可以手動、電動、氣動或液壓驅動。
A butterfly valve can be actuated manually, electrically, pneumatically, or hydraulically.
