ALMATEC是壓縮空氣隔膜泵的制造商，不斷的產品創新和進一步的發展帶來了廣泛的產品系列和新市場的開放。廣泛的生產計劃為更多的應用提供了成熟的技術和經濟的解決方案。
ALMATEC產品有：塑料泵，金屬泵，特種泵等。
Technical Data | |
PUMP SIZE | E 25 |
Dimensions, mm (in.) | Length: 220 (8.7) |
Nominal port size | 1" |
Air connection | R 1/4 |
Weight, kg (lb) | PE: 15 (33) |
Max. particle size of solids for pumps with ball valves | 6 (0.24) |
Suction Lift Dry, mWC (ft) | 4 (13.1) |
Suction Lift Dry, mWC (ft) | 3 (9.8) |
Suction Lift Wet, mWC (ft) | 9,5 (31.2) |
Max. driving and operating pressure | 7 (100) |
Max. operating temperature, °C (F) | PE: 70 (158) |
Max Capacities | 8 m3/h |
ALMATEC泵E系列介紹
Almatec? E 系列的開發基于經過驗證的泵模型的豐富經驗。獨特壁厚的堅固設計、法蘭連接能力、環緊結構和更多的結構特點，滿足客戶對安全、質量和可靠性的需求?？蛇x設備提供六種泵尺寸，涵蓋市場上的大多數應用。脈動阻尼器有旋入式和法蘭式兩種型號。
The development of the Almatec? E-Series was based on the extensive experiences with the proven pump models. The solid design with distinctive wall thicknesses, the flange connection capability, the ring tightening structure and more construction features are responsible to meet the customer demands of safety, quality and reliability. Six pump sizes available with optional equipments cover most applications in the market. Pulsation dampeners are available as screw-on and flanged models.

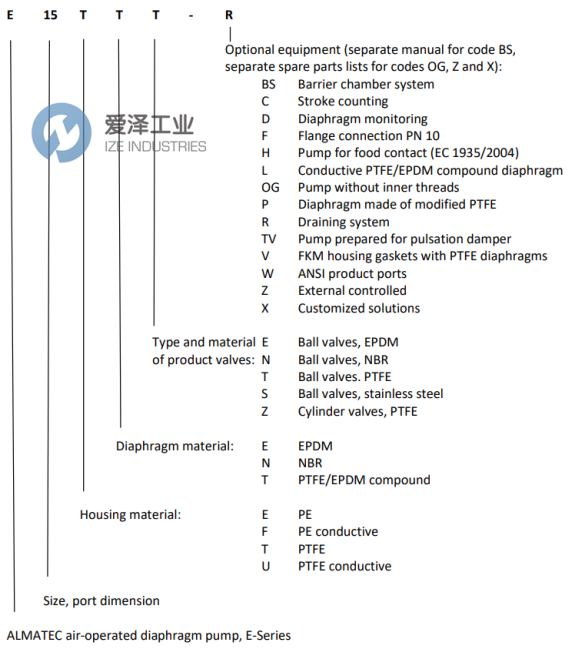

ALMATEC泵E系列選型
ALMATEC泵E系列其他常用型號：
ALMATEC E25ETT-F4 + ET25EFT
ALMATEC E15ETT
ALMATEC E08ETT
ALMATEC E08TTT
ALMATEC E10ETT
ALMATEC E10TTT
ALMATEC E10TTZ
ALMATEC E15ETT
ALMATEC E15TTT
ALMATEC E15TTZ
ALMATEC E15FTZ
ALMATEC E25ETT
ALMATEC E25TTT
ALMATEC E25TTZ
ALMATEC E25FTZ
ALMATEC E40ETT
ALMATEC E15TTT
ALMATEC E40TTZ
ALMATEC E40FTZ
ALMATEC E50ETT
ALMATEC E50TTT
ALMATEC E50TTZ
ALMATEC E50FTZ
ALMATEC PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ALMATEC泵E25ETT-F4 + ET25EFT的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ALMATEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ALMATEC泵E系列E25ETT-F4 + ET25EFT技術參數及選型
