SUN公司于1970年成立于美國，是高性能液壓螺紋插裝閥塊以及集成閥塊的設計和制造公司，產品集成在流體動力系統中，用以實現力，速度和運動的控制。產品廣泛應用于移動，工業機械和設備等領域。
Technical Data | |
Cavity | T-18A |
Series | 4 |
Capacity | 200 gpm |
Maximum Operating Pressure | 5000 psi |
Factory Pressure Settings Established at | Kick down point |
Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in3/min.@1000 psi |
Response Time - Typical | 25 ms |
Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
Valve Hex Size | 1 5/8 in. |
Valve Installation Torque | 350 - 375 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight | 2.59 lb. |
Seal kit - Cartridge | Buna: 990018007 |
Seal kit - Cartridge | Polyurethane: 990018002 |
Seal kit - Cartridge | Viton: 990018006 |
SUN溢流閥RQKB-LAN產品介紹
強制降檔減壓閥的作用類似于電氣系統中的斷路器。一旦入口（端口 1）處的壓力超過閥門設定值，閥門將完全打開并保持打開狀態，從而形成從端口 1 到油箱（端口 2）的不受限制的流動路徑。只要端口 1 處的壓力超過端口 2 處的壓力，閥門就會保持打開狀態。要重置閥門，從端口 1 到端口 2 的流動必須停止，并且端口 2 處的壓力必須等于或大于端口 1 處的壓力。
? 所有2 端口泄壓閥芯（先導泄壓閥除外）在物理和功能上均可互換（對于給定的框架尺寸，具有相同的流路、相同的腔體）。
? 要重置閥門，必須停止流經濾芯。
? 主級孔口由150 微米不銹鋼篩網保護。
? 不適合用于負載保持應用。
? 旨在用于系統的執行器側，因?yàn)榱鹘?jīng)閥門的流量必須停止，閥門才能重置。 如果在系統的泵側使用，則必須關閉泵流以使閥門重置。
? 油箱端口（端口2）上的背壓以1:1 的比例直接添加到閥門設置中。
? 耐腐蝕插裝閥適用于腐蝕環境，并通過型號代碼后綴/AP（外部不銹鋼部件）或/LH（外部鍍鋅鎳部件）進行識別。
? 采用Sun 浮動式結構，最大限度地減少由于安裝扭矩過大和/或型腔/盒加工變化而導致內部零件粘連的可能性。
Kick-down relief cartridges act similar to a circuit breaker in an electrical system. The valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve settting, creating an unrestricted flow path from port 1 to tank (port 2). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, flow from port 1 to port 2 must cease and pressure at port 2 must be equal to or greater than the pressure at port 1.
? All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
? To reset valve, flow through the cartridge must cease.
? Main stage orifice is protected by a 150-micron stainless steel screen.
? Not suitable for use in load holding applications.
? Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
? Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
? Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components.
? Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
SUN溢流閥RQKB系列其他常用型號：
SUN RQKBLAN
SUN RQKBLAV
SUN RQKBLAN/AP
SUN RQKBLAV/AP
SUN RQKBLBV
SUN RQKBLBN
SUN RQKBLBN/AP
SUN RQKBLBV/AP
SUN RQKBLCN
SUN RQKBLCV
SUN RQKBLCN/AP
SUN RQKBLCV/AP
SUN VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUN溢流閥RQKB-LAN的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

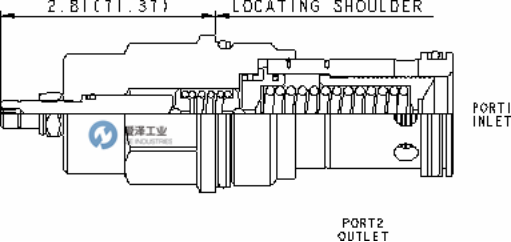

SUN溢流閥RQKB-LAN技術參數介紹
