DUPLOMATIC閥DS5-S22/12NA230技術參數
Code | DS5-S22/12NA230 |
Type | DS = Solenoid operated directional control valve |
Size | 5 = ISO 4401-05 |
Spool type | S22 |
Series | 12 = for AC valves |
Seals | N = NBR seals for mineral oil (standard) |
Power supply | A230 = 230 V - 50 Hz / 240 V - 60 Hz |
DUPLOMATIC閥DS5系列介紹
DS5 是滑閥方向閥，用于控制流道和流動方向，用于底板安裝。它們有 3 端口和 4 端口設計，帶有彈簧復位或機械制動。閥體由高強度鑄鐵制成，內部通道寬闊，以更大限度地減少流動壓降。使用具有可互換線圈的濕式電樞螺線管。該閥可配備直流或交流電磁閥。通過使用帶有內置整流橋的連接器，直流螺線管也可以由交流電源供電。除了標準手動超控裝置外，還有旋鈕、保護套和機械制動裝置。該閥門還提供帶有用于外部排水的 Y 端口的安裝接口以及固定或可調節的軟移動裝置。
DS5 are spools directional valves that control passage and direction of a flow, for subplate mounting. They are available with 3-ports and 4-ports design, with spring return or mechanical detent. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drops. Wet armature solenoids with interchangeable coils are used. The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built-in rectifier bridge. Alternative to the standard manual override there are knob, boot and mechanical detent device. The valve is available also with mounting interface with the Y port for external drain and with fixed or adjustable soft-shifting devices.

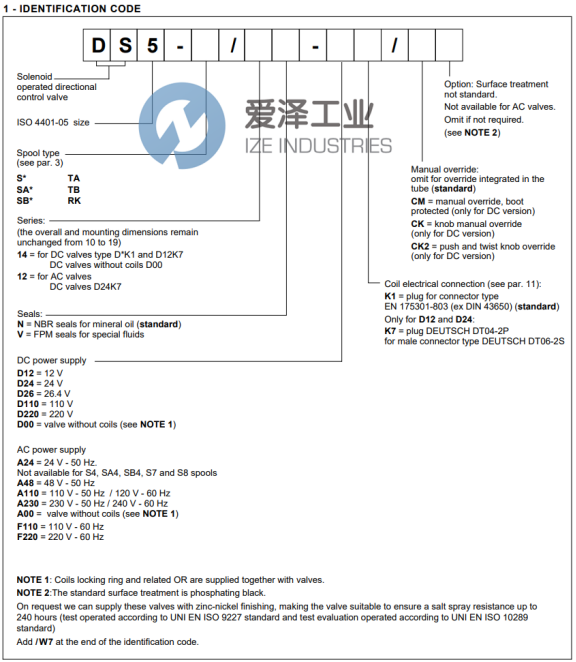

DUPLOMATIC閥DS5系列選型
DUPLOMATIC閥DS5系列其他常用型號：
DUPLOMATIC DS5-S9/13N-D220K1/F/F
DUPLOMATIC DS5-S1/11N-A110-50K1
DUPLOMATIC DS5-S1/12V-D12K1/FCM
DUPLOMATIC DS5-TA02/13N-D12K1/FCM
DUPLOMATIC DS5-S2/12V-D12K1/FCM
DUPLOMATIC DS5-S9/13N-D24K1/F/CM
DUPLOMATIC DS5-S22/12NA230
