HYPERTAC是電子元器件供應商SMITHS集團旗下的連接器品牌，其工廠分布英國、法國、意大利、德國和德國，為用戶提供高性能的PCB連接器、圓型或D型設備間連接器、模塊化連接器及相關解決方案。
主營產品：
HYPERTAC連接器
HYPERTAC連接器
HYPERTAC接頭
HYPERTAC模組
HYPERTAC插頭
HYPERTAC插座
HYPERTAC濾波器。
HYPERTAC連接器HG2系列技術參數
Technical Characteristics | |
Number of contacts | 12 |
Contact diameter in inches (mm) | 0.016 (0.40) |
Materials | |
Body | Polyetherimide |
Insulators | Liquid crystal polymer |
Seals | Silicone |
Shielding (Optional) | |
Effectiveness | Up to 3 GHz |
Attenuation | 50 dB maximum at 3 GHz |
Mechanical | |
Mating cycle life | Up to 20,000 with Hyperboloid contact - Up to 2,000 with MR contact |
Contact extraction force | 0.50 to 1.60 oz. per contact |
Electrical | |
Current rating (A) | 3 |
Contact resistance | Hyperboloid Contacts < 8.0 mΩ - MR Contacts and Disposable Options < 12.0 mΩ |
Breakdown voltage between contacts | 1,000 V max. |
Dielectric withstanding voltage | 1125 V |
Insulation resistance | > 5×104 MΩ at 500 VDC |
Physical and Environmental | |
Operating temperature rating | –40oC to 125oC |
Processing temperature range | Up to 185oC |
Flammability | Materials meet the requirements of UL94 |
Sterilization | Steam autoclave, EtO, Sterrad?2 |
Fingerproofing | Meets IEC 60601-1 requirements |
Sealing (mated condition) | IP65 |
HYPERTAC連接器HyperGrip系列介紹
HyperGrip是一種圓形塑料、用戶可配置、顏色編碼的連接器，采用推/拉閂鎖設計，允許單手?jǐn)嚅_(kāi)連接。HyperGrip 旨在滿足醫療行業的要求，例如符合 IEC60601 的手指防護、符合 UL94 的易燃性，并且符合大多數滅菌要求。該系列包括適用于 HG2 和 HG4 尺寸的一次性插頭，旨在支持包覆成型和大批量生產方法，并能承受至少 30 次循環，同時確保連接器在絕緣電阻、介電耐壓、載流和低電平電流電阻方面的性能。
特點與優勢
5、12、19 和 33 觸點位置
每個觸點 1 A
配接時 IP65 密封
EMI/RFI 屏蔽選項
推/拉閂鎖設計
一次性應用的理想選擇
12 路和 33 路插頭的一次性選項
6 個可鎖定位置
5種顏色選擇
HyperGrip is a circular plastic, user-configurable, color coded connector with push/pull latching design allowing for one-hand disconnect. HyperGrip is designed to meet medical industry requirements such as finger-proofing to IEC60601, flammability rated to UL94, and is compatible with most sterilization requirements. The Series includes disposable plugs for HG2 and HG4 sizes designed to support overmolding and high volume production methods and to withstand at least 30 cycles whilst ensuring the connector performance in terms of insulation resistance, dielectric withstanding voltage, current carrying, and low level current resistance.
Features & Benefits
5, 12 19 and 33 contact positions
1 A per contact
IP65 sealed when mated
EMI/RFI shielding option
Push/pull latching design
Ideal for disposable applications
Disposable option for 12 and 33 way plugs
6 Keyable positions
5 color options

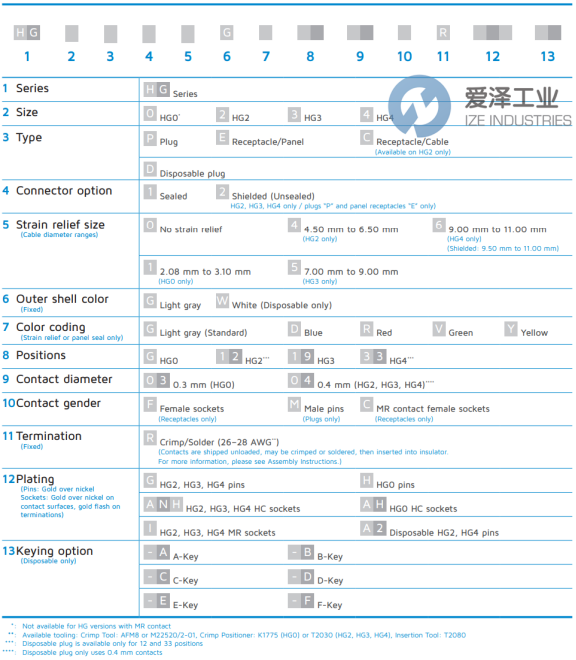

HYPERTAC連接器HG系列選型
HYPERTAC連接器HG2系列其他常用型號：
HYPERTAC HG2P14GW1204MRH
HYPERTAC HG2C14GR1204FRANH
HYPERTAC HG2C14GV1204FRANH
HYPERTAC HG2C14GY1204FSAH
HYPERTAC HG2E10GR1204FRAH
HYPERTAC HG2E10GV1204FRAH
HYPERTAC HG2E10GD1204FRAH
HYPERTAC HG2C14GD1204FRANH
HYPERTAC HG2E10GY1204FRAH
HYPERTAC HG2P14GR1204MRH
HYPERTAC HG2P14GG1204MSH
HYPERTAC HG2P13GD1204MSH
HYPERTAC HG2P14GG1204MRG
HYPERTAC HG2P14GY1204MRH
HYPERTAC HG2C14GD1204FRAH
HYPERTAC CONNECTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYPERTAC連接器HG2C14GD1204FRAH的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYPERTAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HYPERTAC連接器HG系列HG2C14GD1204FRAH技術參數及選型
